REMOVAL AND INSTALLATION (3.0 L Engine)
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
REMOVAL AND INSTALLATION (3.0 L Engine): Notes
Pre-removal Operation
Engine Coolant Draining (Refer to
ON-VEHICLE SERVICE - ENGINE COOLANT CHANGE
).
Battery and Battery Tray Removal (Refer to
BATTERY
).
Post-installation Operation
Battery and Battery Tray Installation (Refer to
BATTERY
).
Engine Coolant Refilling (Refer to
ON-VEHICLE SERVICE - ENGINE COOLANT CHANGE
).

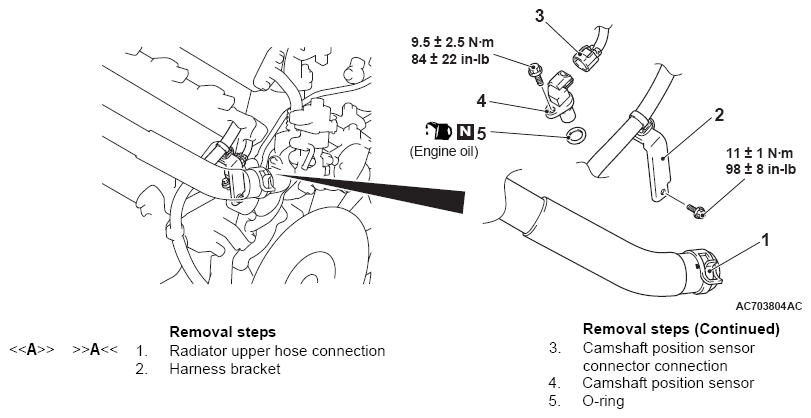

Fig 1: Removing/Installing Camshaft Position Sensor Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
