REMOVAL AND INSTALLATION <2.4 L Engine>: Notes

CAUTION:

When the knock sensor is replaced, initialize the learned value using scan tool (M.U.T.-III) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

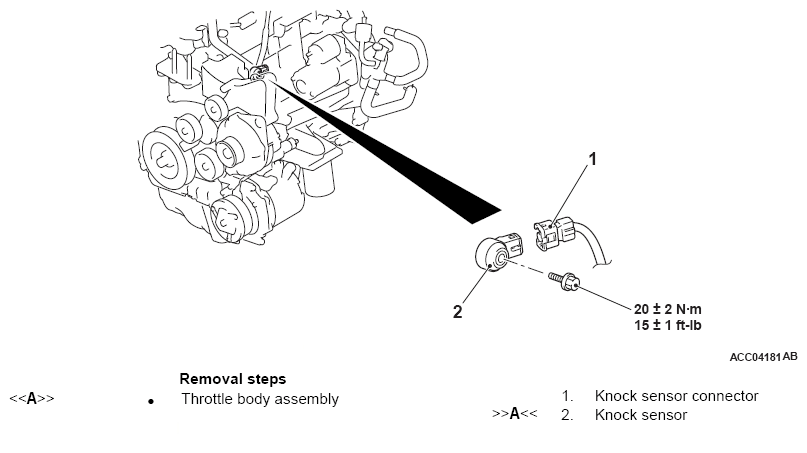

Fig 1: Removing/Installing Knock Sensor Components With Torque Specifications (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
