REMOVAL AND INSTALLATION <2.4L Engine>: Notes

Pre-removal and post-installation operation

• Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).

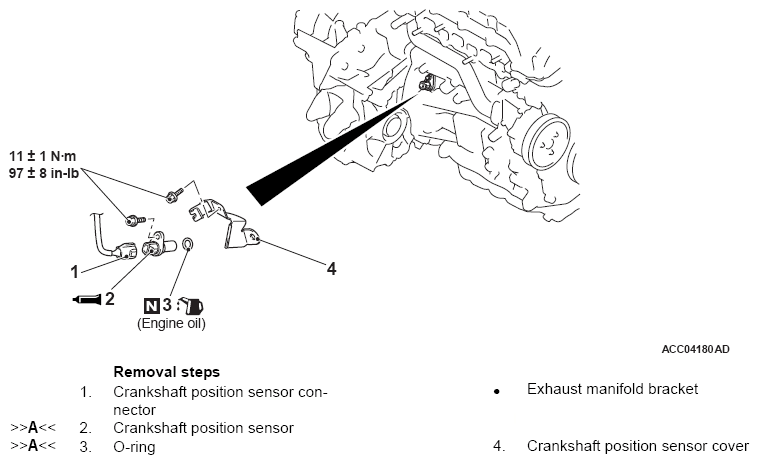

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specifications (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
