REMOVAL AND INSTALLATION <3.0 L Engine>

CAUTION:

When the knock sensor replacement is performed, use scan tool (M.U.T.-III) to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

Pre-removal and Post-installation Operation

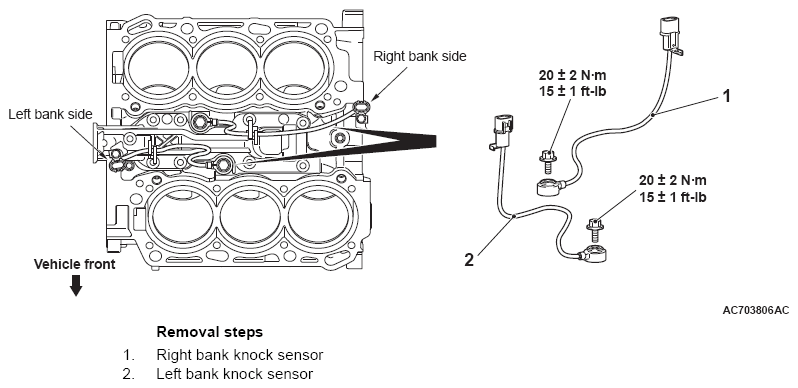

Fig 1: Removing/Installing Knock Sensor Components With Torque Specifications (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
