Removal And Installation: Notes

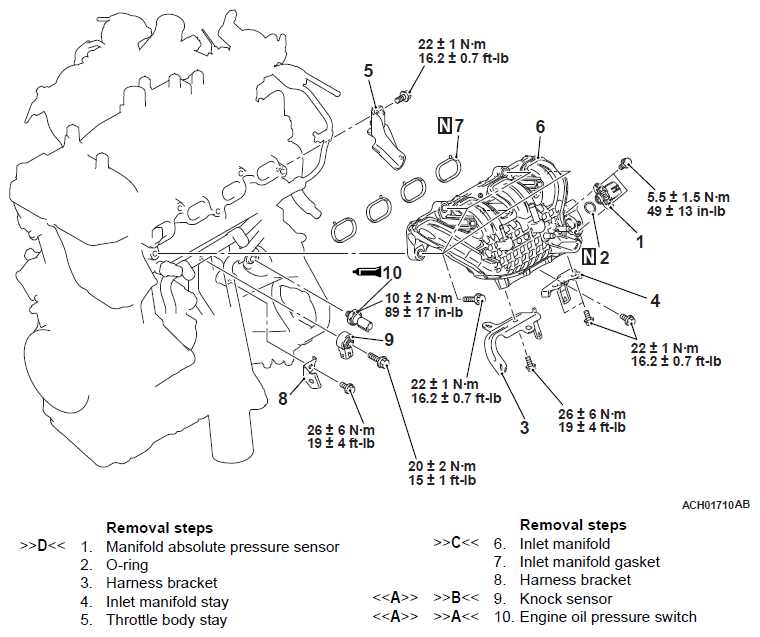

Fig 1: Intake Manifold Component With Torque Specifications
G12143819Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
