Removal And Installation: Notes

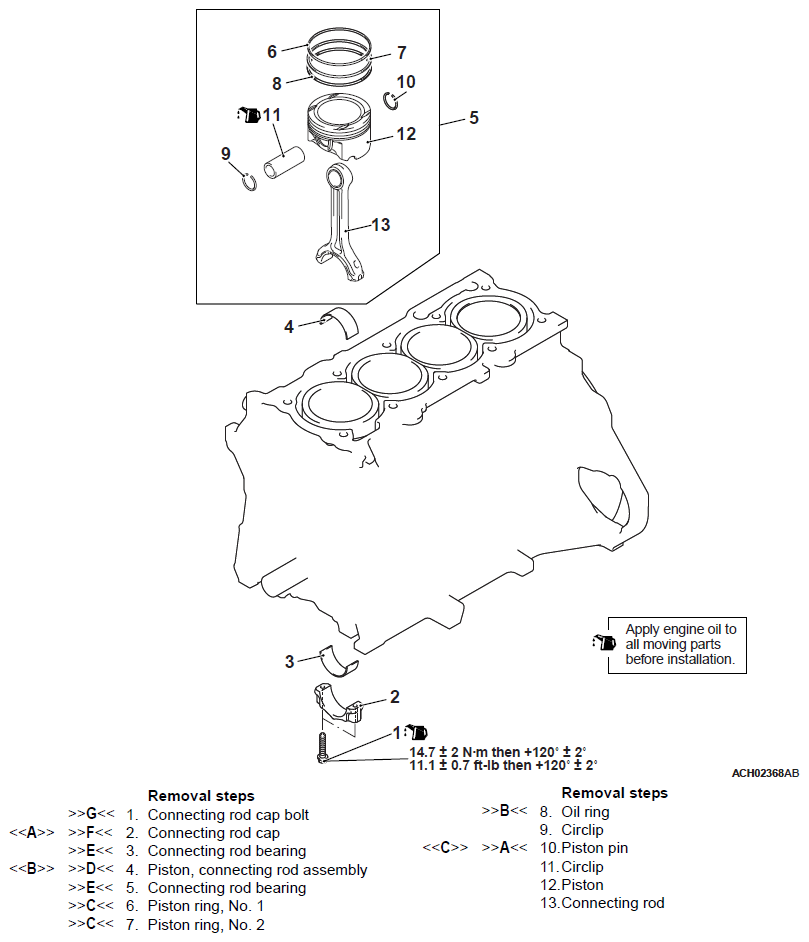

Fig 1: Piston And Connecting Rod Component With Torque Specifications
G12143921Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
