Special Tools
| Tool | Tool number and name | Supersession | Application |
|---|---|---|---|
| MB991398 Spark plug wrench |
General service tool | Removal and installation of spark plug | |
| MB991883 Flywheel stopper |
General service tool | Retention of drive plate | |
| MB992042 Water temperature sensor wrench |
- | Engine coolant temperature sensor removal and installation. | |
| MB992106 O-ring installer |
- | Installation of O-ring on injector injection nozzle side | |
| MB992118 Oil pressure switch wrench |
- | Removal and installation of engine oil pressure switch | |
MQ713980
Injector seal drift kit
|
- | Installation of ring stopper and seal ring on injector (high pressure) | |
| MD998727 Oil pan remover |
MD998727-01 | Removal of oil pan | |
| MB991396 Oil filter wrench |
General service tool or MB991396-01 | Removal and installation of oil filter | |
| MD998382 Crankshaft front oil seal installer |
- | Installation offrant oil seal | |

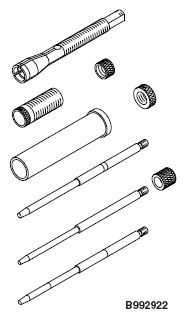

| MB992922 Valve stem seal installer adjustable |
- | Installation of valve stem seal | |
| MD998735 Valve spring compressor |
MD998735-01 | Compression of valve spring | |
| MB992089 Retainer holder C |
- | ||
| MB991614 Angle gauge |
General service tool | Tightening cylinder block bearing cap bolt | |
| MB992286 Connecting rod guide | - | Removal and installation of piston and connecting rod assembly |
