Removal And Installation

CAUTION: When the knock sensor is replaced, initialize the learned value using scan tool (M.U.T.-IIISE) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN DFI AND MFI ENGINE ).

Pre-removal and Post-installation Operation

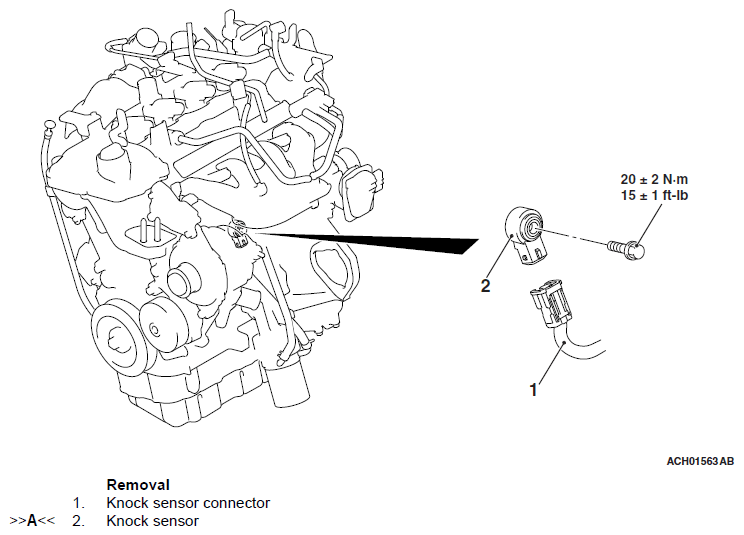

Fig 1: Knock Sensor Component With Torque Specifications
G12147101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
