Spark Plug Gap Check

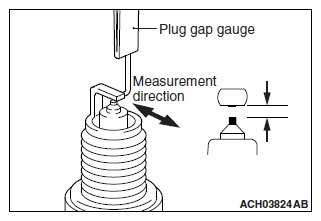

Check the plug gap with the wire type plug gap gauge. Replace it if the limit is exceeded.
STANDARD VALUE SPECIFICATION (LIMIT)
| Manufacturer |
Type |
Standard value mm (in) |
Limit mm (in) |
| NGK |
SILKR7H8 |
0.7 - 0.8 (0.028 - 0.031) |
1.2 (0.05) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
