Removal And Installation: Notes

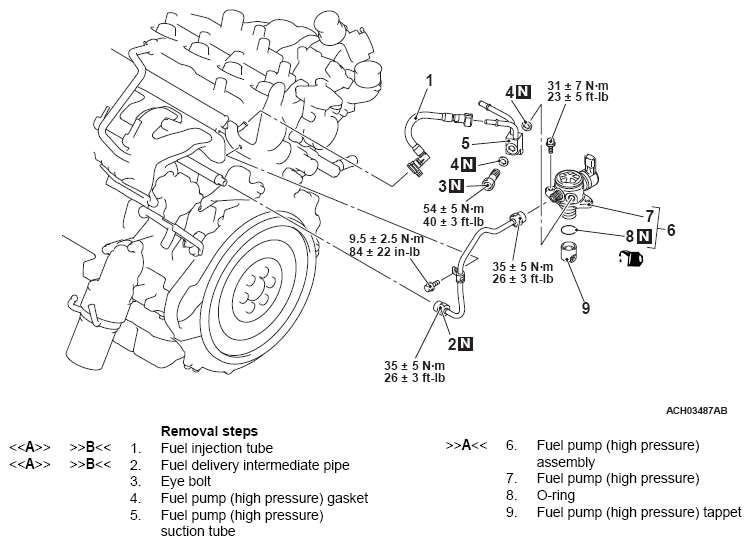

Fig 1: Removing/Installing Fuel Pump (High Pressure) Components With Torque Specification
G12647851Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Do not remove the eye bolt, fuel pump (high pressure) gasket and fuel pump (high pressure) suction tube except during replacement.
