Removal And Installation: Notes

CAUTION:
  • When removing or installing the crank angle sensor, be careful not to apply impact to the sensor.
  • Do not reuse the crank angle sensor that has been dropped.

Pre-removal and Post-installation Operation

(Refer to CRANKSHAFT PULLEY ).

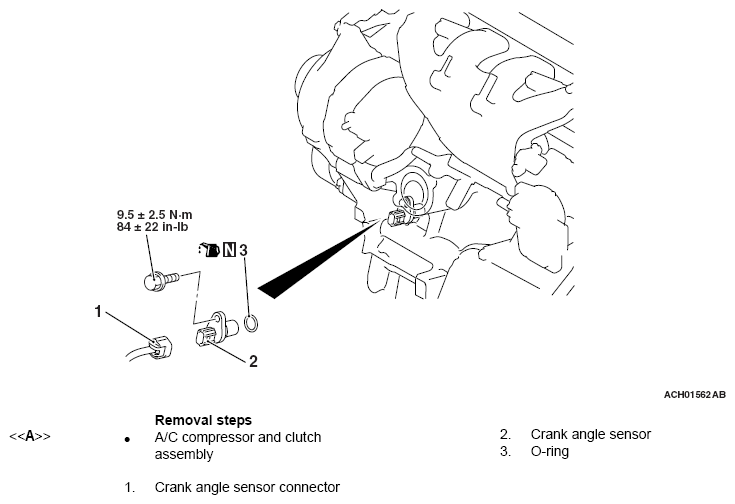

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specification
G12648517Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
