Removal And Installation

Pre-removal and Post-installation Operation

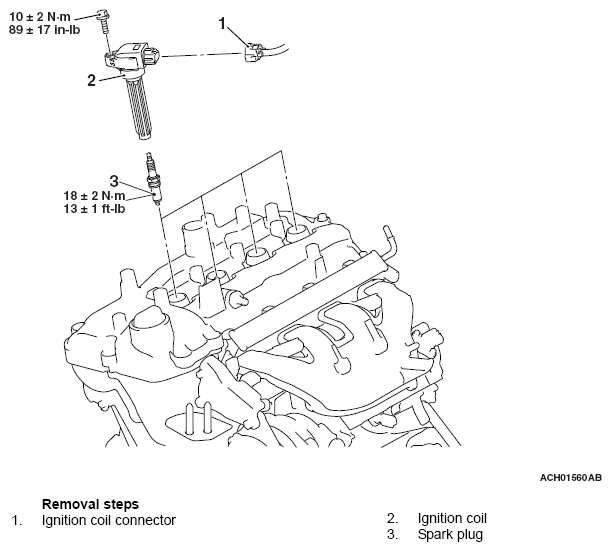

Fig 1: Removing/Installing Ignition Coil Components With Torque Specification
G12648515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
