Inspection Terminal

Name Symbol Name Symbol
Data link connector A Spare connector (for switch box) C
Spare connector (for rear display) B

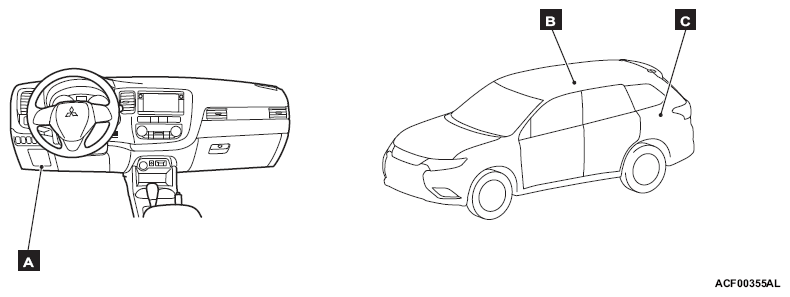

G13784993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

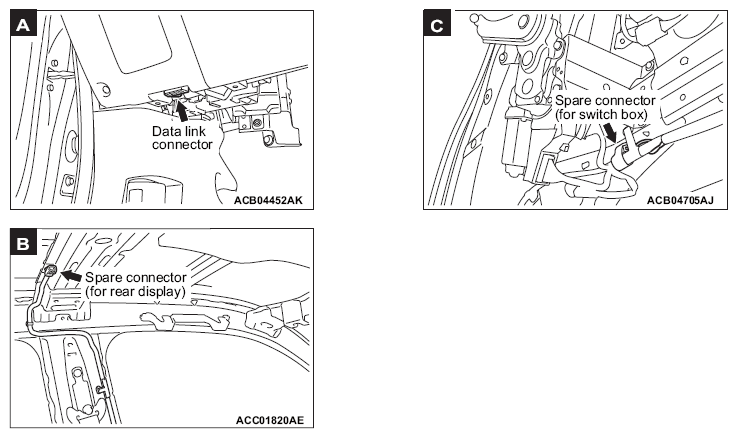

G13784994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
