Removal And Installation
Pre-removal and post-installation operation
Bottom Cover Assembly (driver's side) Removal and Installation (Refer to
REMOVAL AND INSTALLATION
).

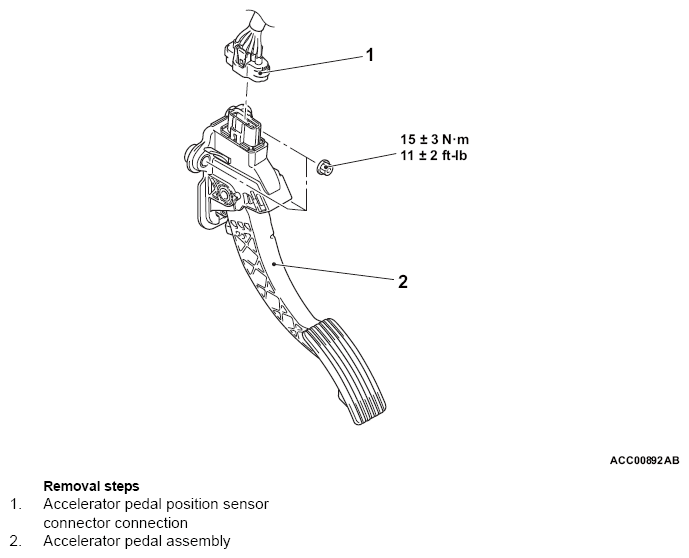

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
