Transaxle Fluid Check

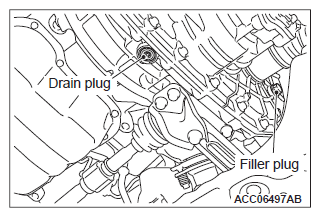

  1. Remove the filler plug and gasket.
    G12372023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

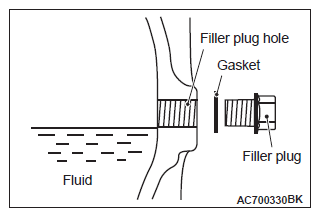

  2. Check that the fluid level is just below the lower edge of the filler plug hole.
  3. Check that the fluid is not excessively foul and has moderate viscosity.
  4. If the level is below the filler plug hole, add the specified fluid up to the end of the filler plug hole.

    Brand name:

    MITSUBISHI MOTORS GENUINE ATF SP III

  5. Install the filler plug and new gasket, and tighten to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

    G12372024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
