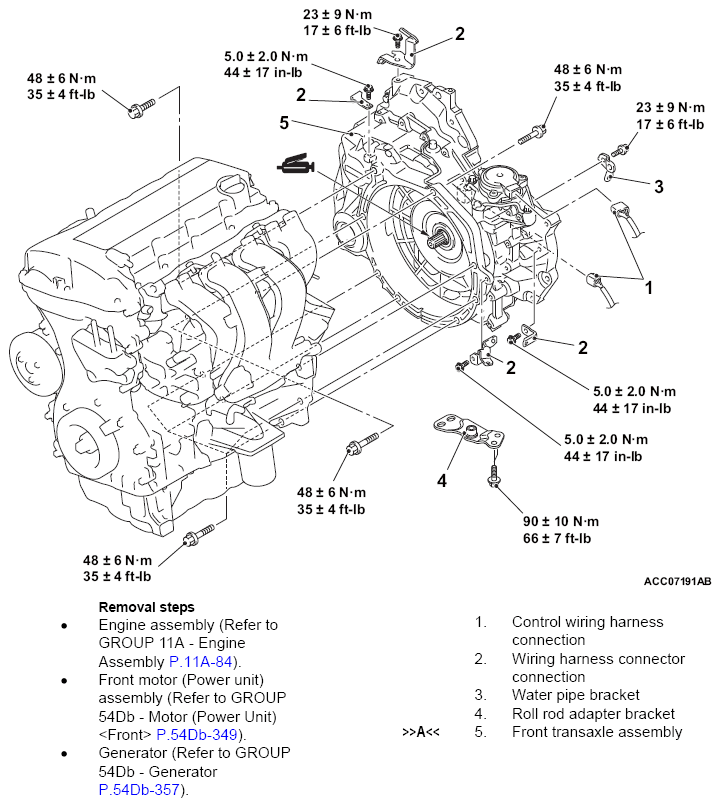

Removal And Installation
CAUTION:
- After replace the front transaxle assembly, disconnect the negative terminal of the 12V Starter Battery for initialize the electrical parking driver unit, and check the electrical parking lock initial learning quantity (Refer to CHECK INITIAL LEARNING QUANTITY ).
- If the 12V Starter Battery is disconnected, the control timer which operates the engine forcibly will be reset. If the engine does not start for prolonged period after the reset, the fuel injection system may be clogged. To avoid this, press the battery charging switch to start the engine. Note that the battery charging switch may not be turned on if the Main Drive Lithium-ion Battery is almost fully charged. In that case, wait until the Main Drive Lithium-ion Battery is partially discharged.
