Removal And Installation

Pre-removal and post-installation operation
Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).

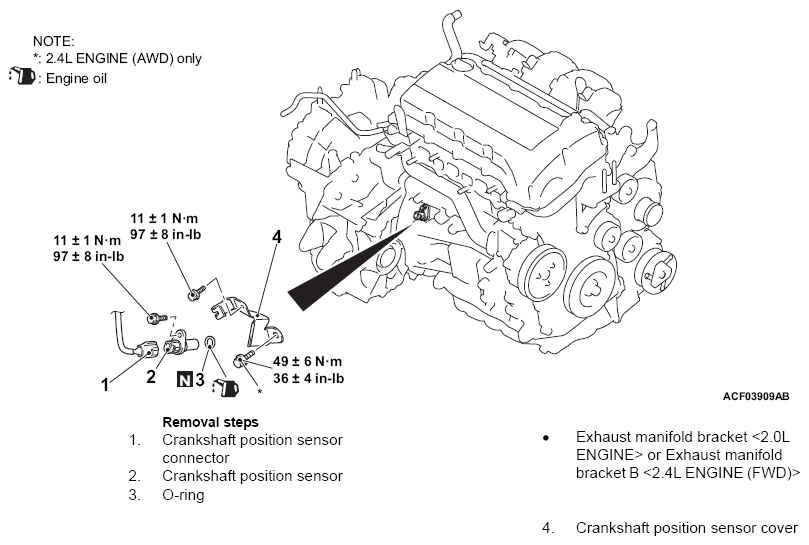

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification
G14212842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
