Disassembly And Assembly: Notes

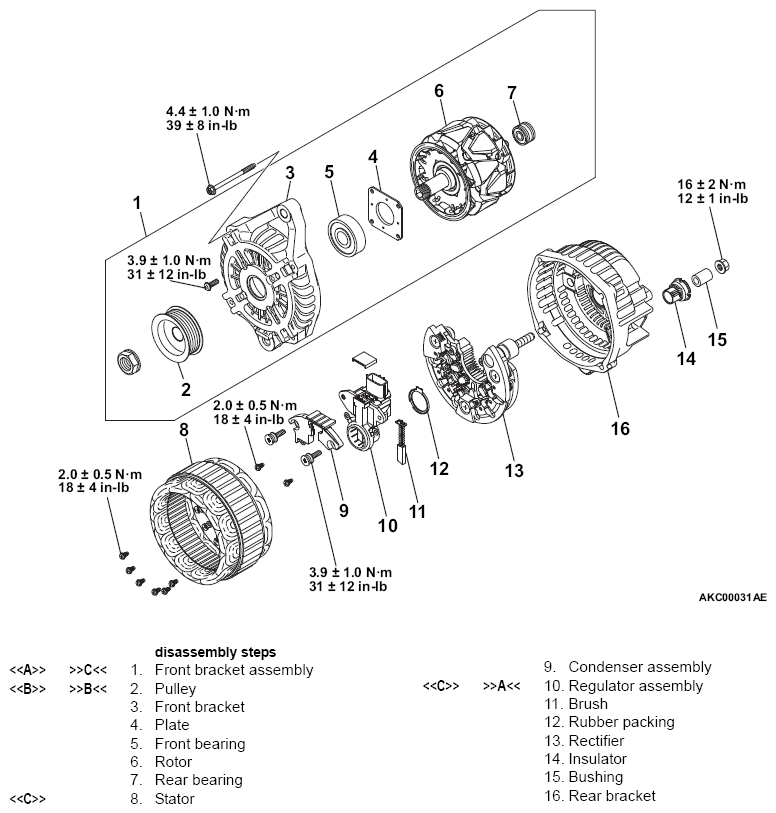

Fig 1: Disassembling/Assembling Generator Assembly Components Location With Torque Specification
G14212792Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
