»C« Front Bracket Assembly Installation

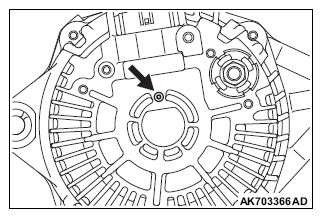

Remove the brush holding wire after the rotor has been installed.

G14212799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
