Generator Assembly: Inspection: Stator

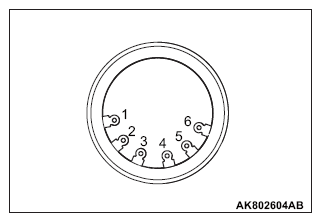

- Check the electrical continuity between the stator coil terminals.
- Check the electrical continuity of the points shown in illustration. Confirm that there is electrical continuity. If there is not, replace the stator.

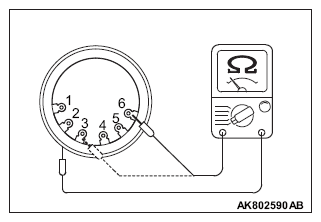

Terminal connector of tester Electrical continuity 1 - 2 Presence of electrical continuity 1 - 3 2 - 3 4 - 5 4 - 6 5 - 6 - Check the insulation between the stator coil terminal and the core.
- Check the electrical continuity of the points shown in illustration. Confirm that there is not electrical continuity. If there is, replace the stator.

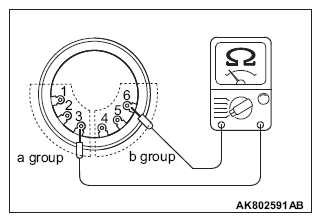

Terminal connector of tester Electrical continuity 1 - Core Absence of electrical continuity 2 - Core 3 - Core 4 - Core 5 - Core 6 - Core - Check the insulation between coil terminals of each group.
- Check the electrical continuity of the points shown in illustration. Confirm that there is not electrical continuity. If there is, replace the stator.
| Terminal connector of tester | Electrical continuity |
|---|---|
| 1 - 4 | Absence of electrical continuity |
| 1 - 5 | |
| 1 - 6 | |
| 2 - 4 | |
| 2 - 5 | |
| 2 - 6 | |
| 3 - 4 | |
| 3 - 5 | |
| 3 - 6 |
