Removal And Installation: Notes
Pre-removal operation
Drive Belt Removal (Refer to
CRANKSHAFT PULLEY
) <2.0L ENGINE>.
Drive Belt Removal (Refer to
CRANKSHAFT PULLEY
) <2.4L ENGINE>.
Post-installation operation
Drive Belt Installation (Refer to
CRANKSHAFT PULLEY
) <2.0L ENGINE>.
Drive Belt Installation (Refer to
CRANKSHAFT PULLEY
) <2.4L ENGINE>.
Drive Belt Tension Check (Refer to
ON-VEHICLE SERVICE
) <2.0L ENGINE>.
Drive Belt Tension Check (Refer to
ON-VEHICLE SERVICE
) <2.4L ENGINE>.

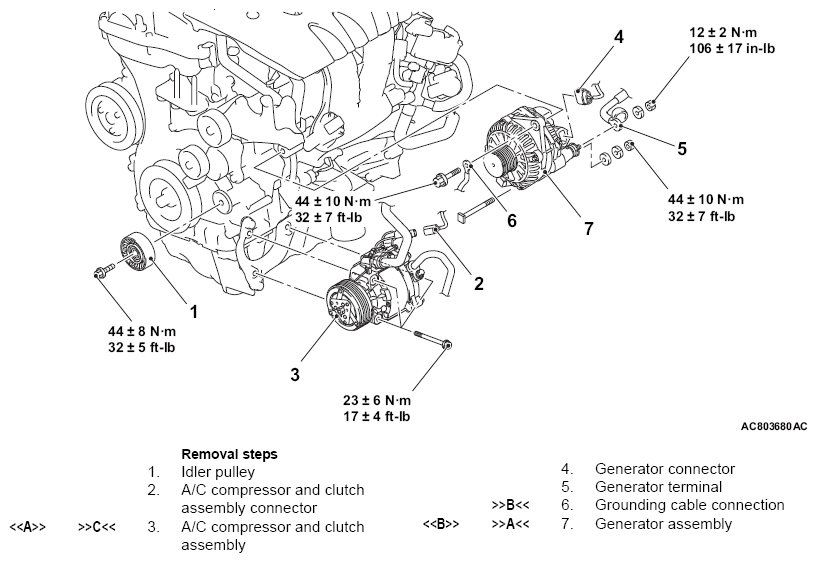

Fig 1: Removing/Installing Generator Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
