Measurement Method

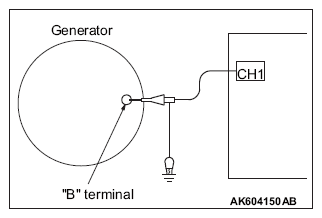

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

G14212782Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
