Control Unit

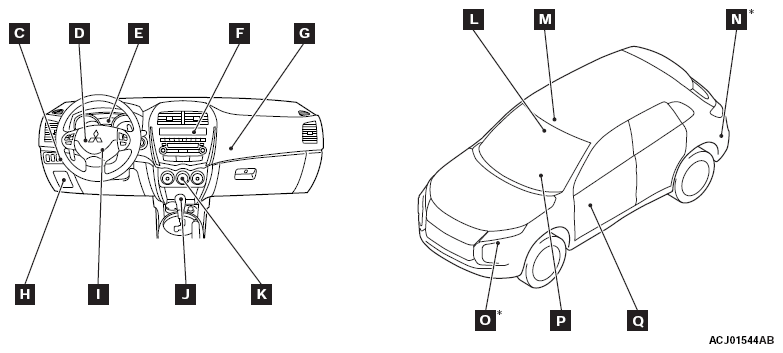

| Name | Symbol |
|---|---|

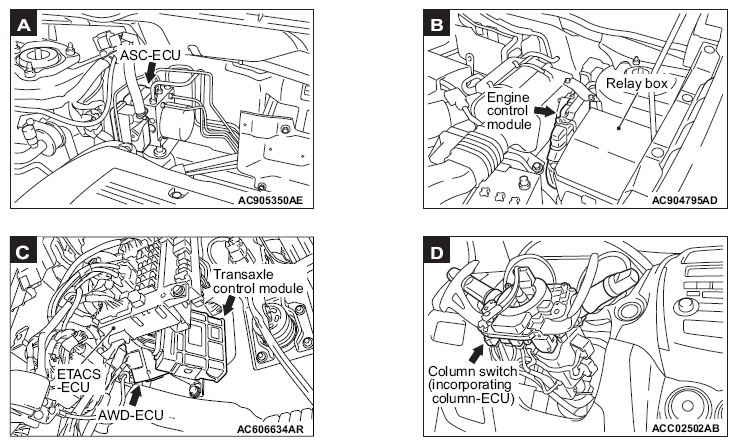

| AWD-ECU | C |
| A/C control panel (incorporating ECU) | K |

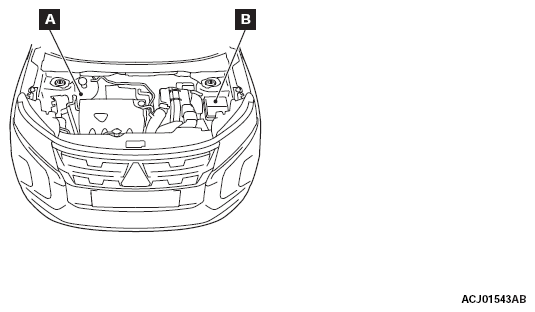

| ASC-ECU | A |
| BSW-ECU <Vehicles with blind spot warning [BSW] (with lane change assist) /rear cross traffic alert (RCTA) system> | N |
| Column switch (incorporating column-ECU) | D |
| Electric power steering-ECU | I |
| Engine control module | B |
| ETACS-ECU | H |
| FCM/LDW/AHB-ECU | L |
| Front seat assembly (RH) (incorporating occupant classification-ECU) | P |
| Gateway-ECU | F |
| Headlight control unit | O |
| KOS-ECU | G |
| OSS-ECU <Vehicles with KOS> | G |

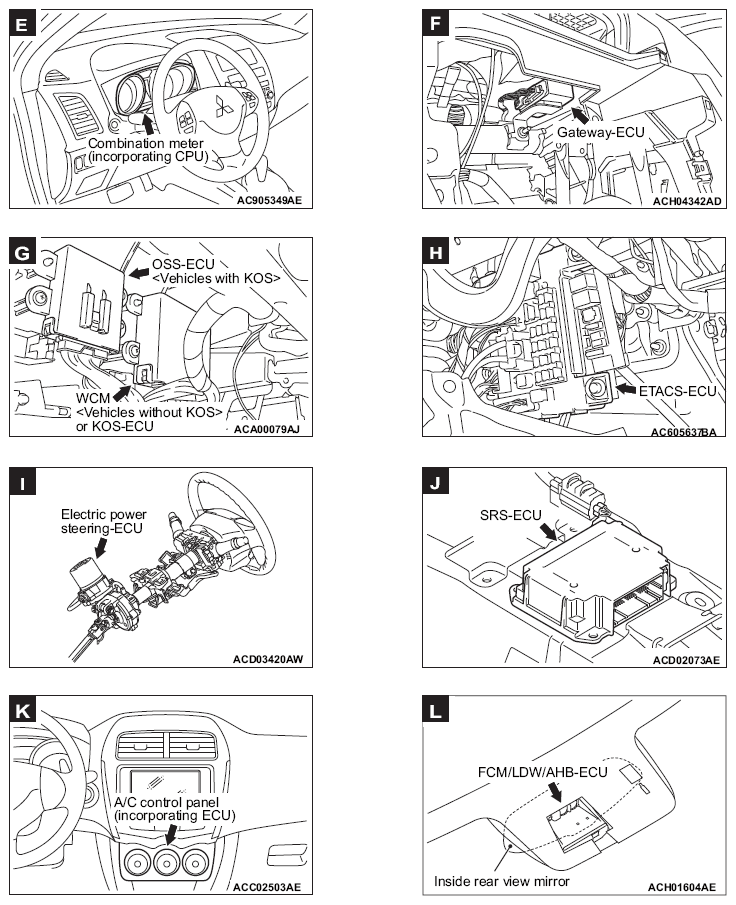

| Combination meter (incorporating CPU) E Power window main switch (incorporating CPU) | Q |
| SRS-ECU | J |

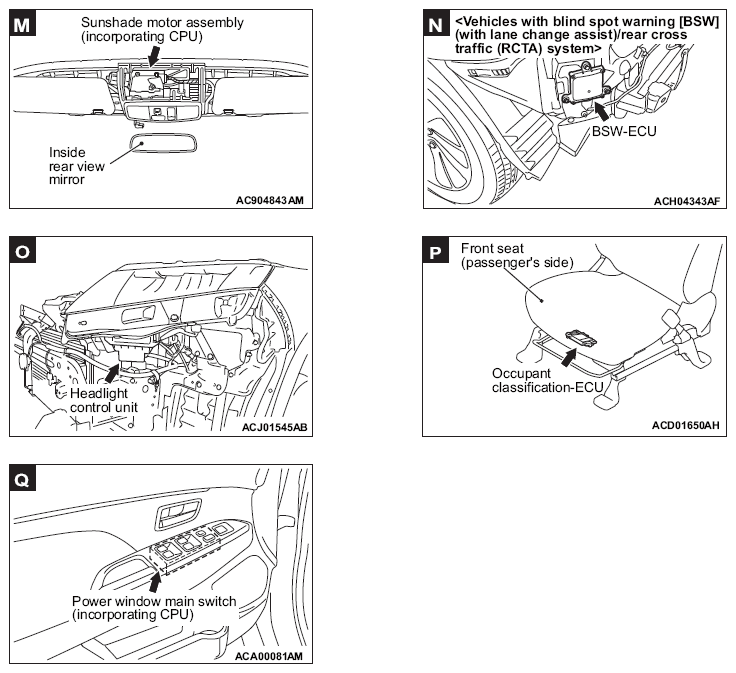

| Sunshade motor assembly (incorporating CPU) | M |
| Transaxle control module | C |
| WCM <Vehicles without KOS> | G |
NOTE:
*: also equipped at right side.
