Component Locations: Grounding

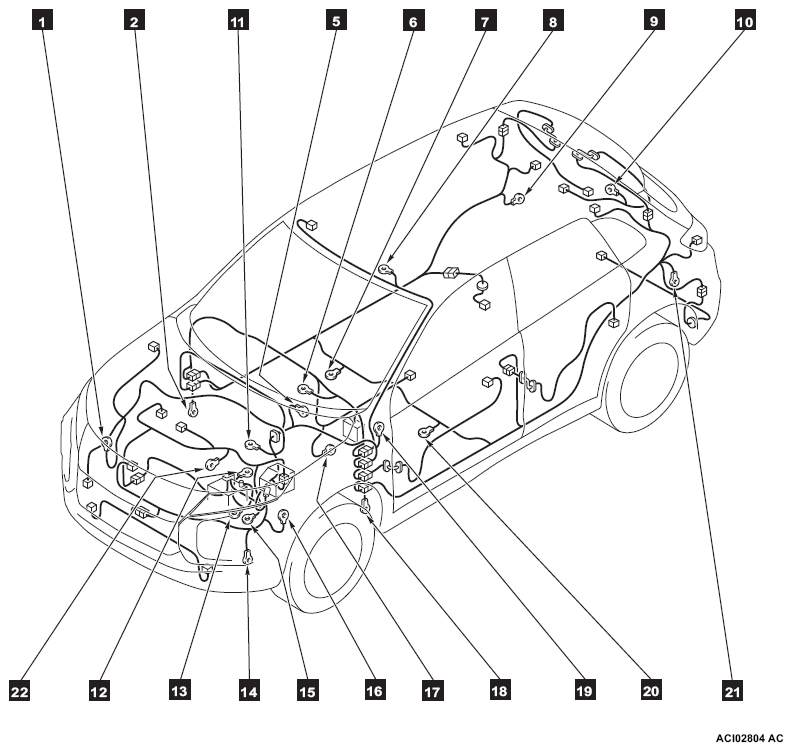

G14220072Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

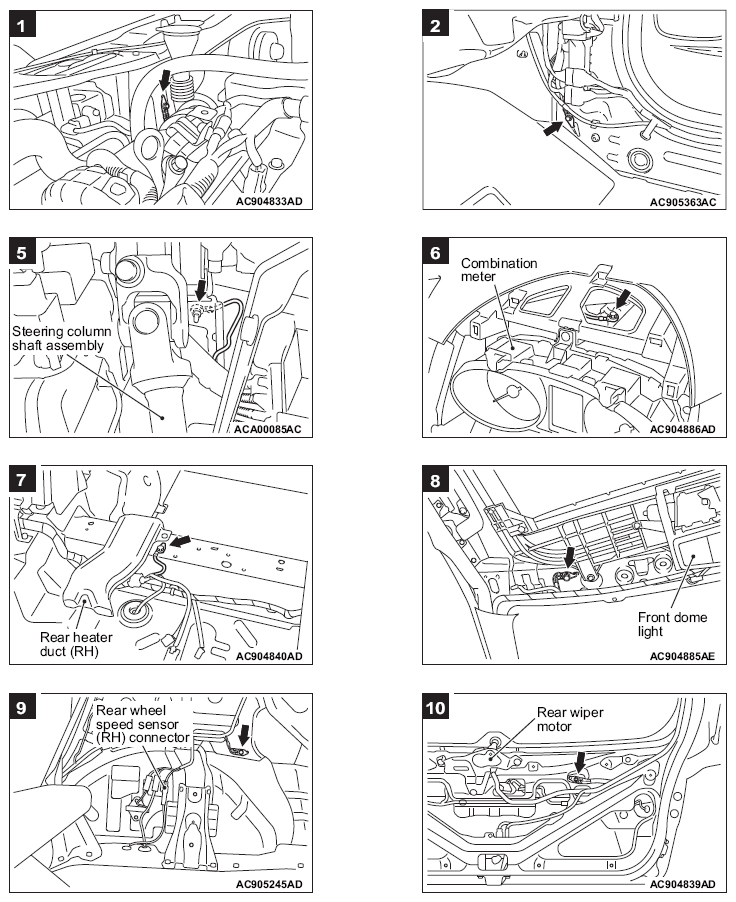

G14220073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

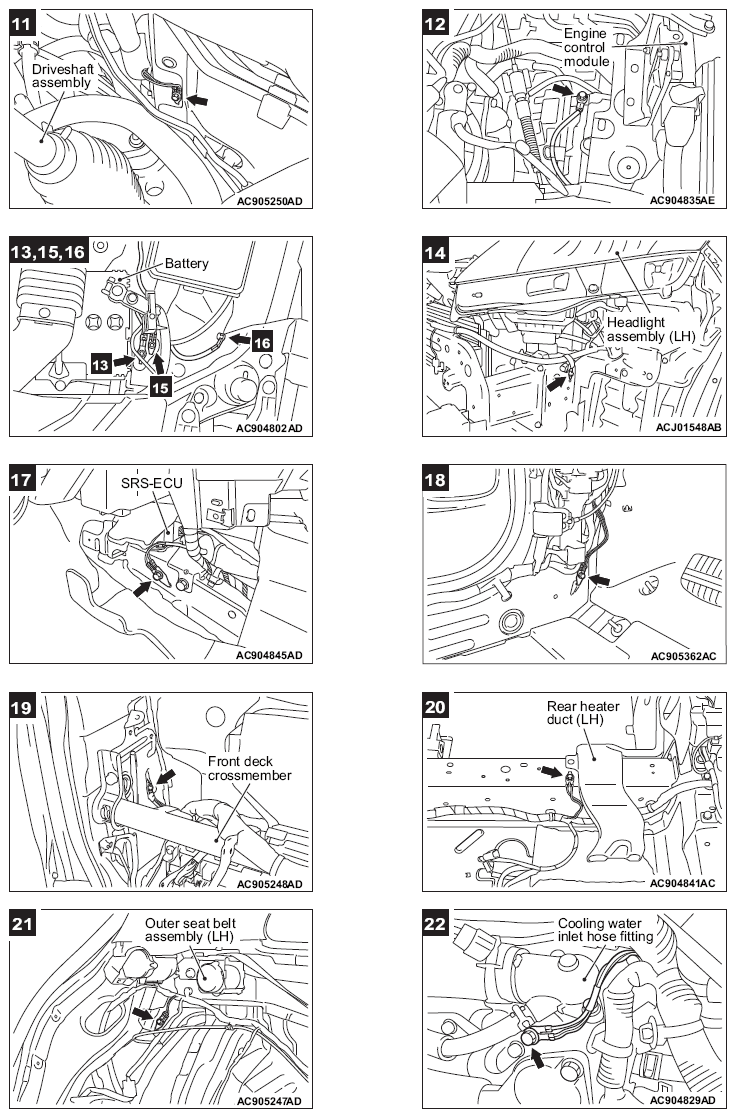

G14220074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
