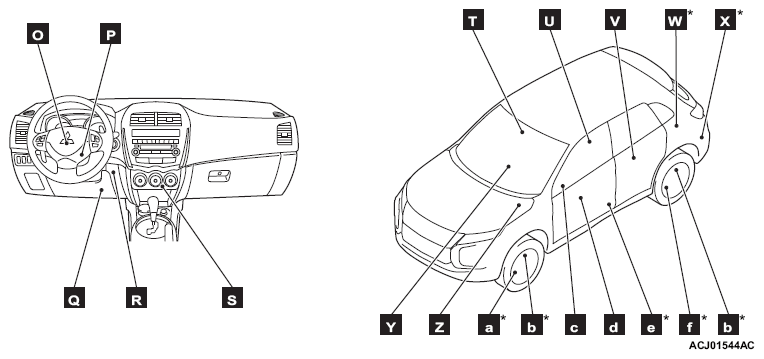

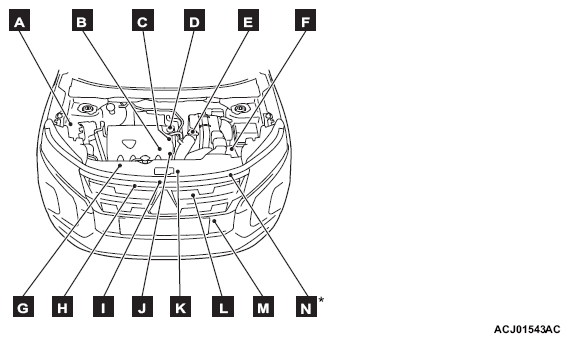

Component Locations: Sensor
| Name | Symbol |
|---|---|

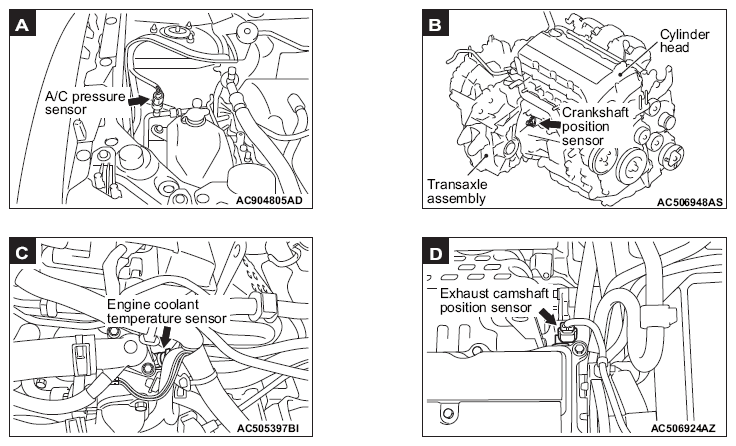

| A/C pressure sensor | A |
| Accelerator pedal position sensor | Q |

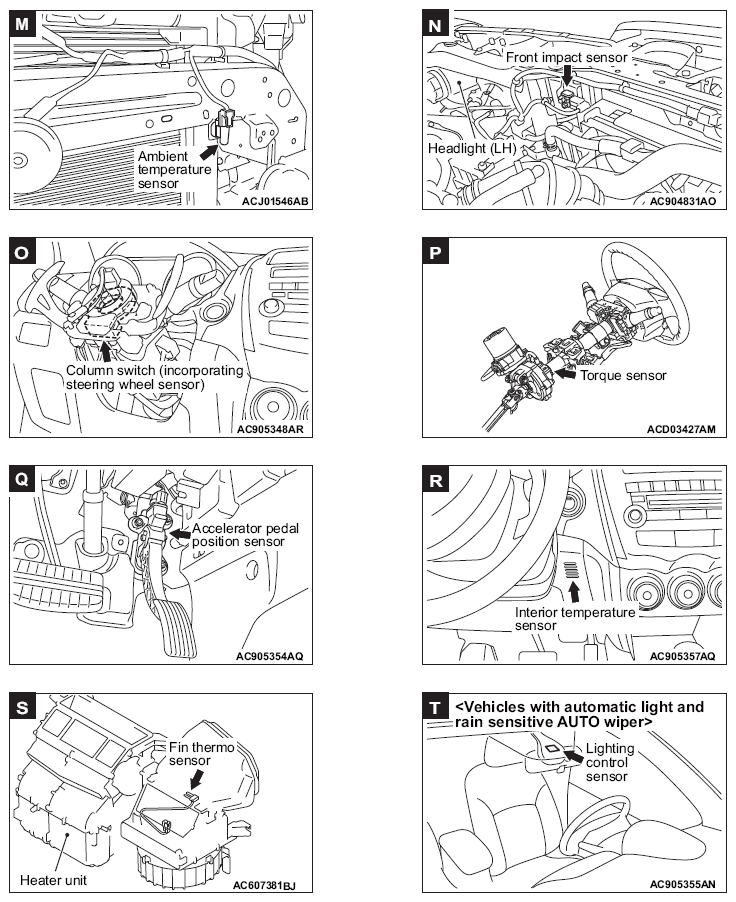

| Ambient air temperature sensor | M |

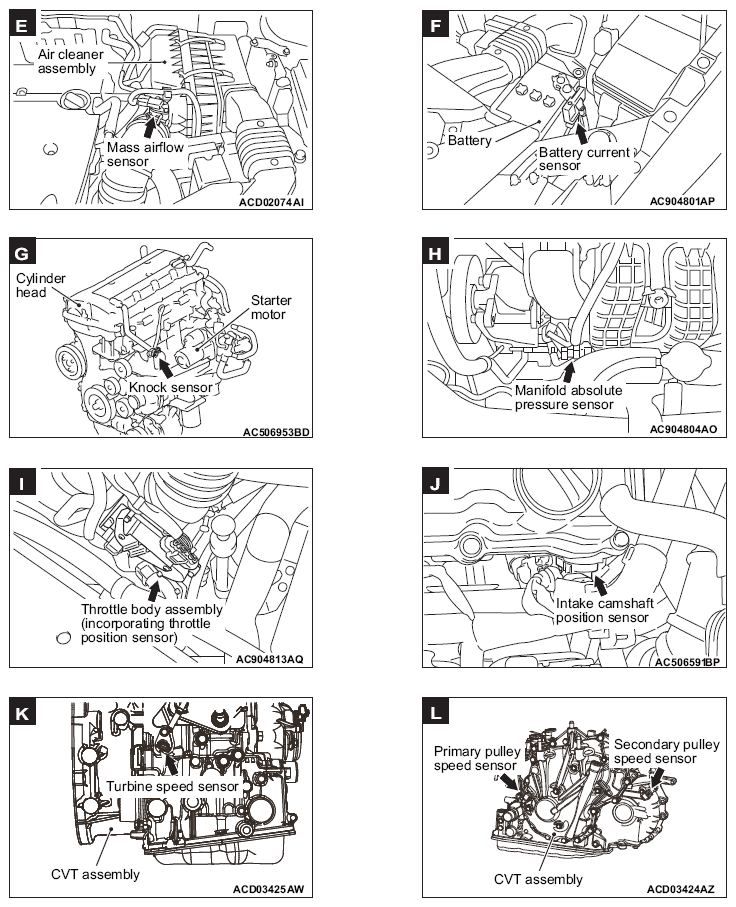

| Battery current sensor | F |

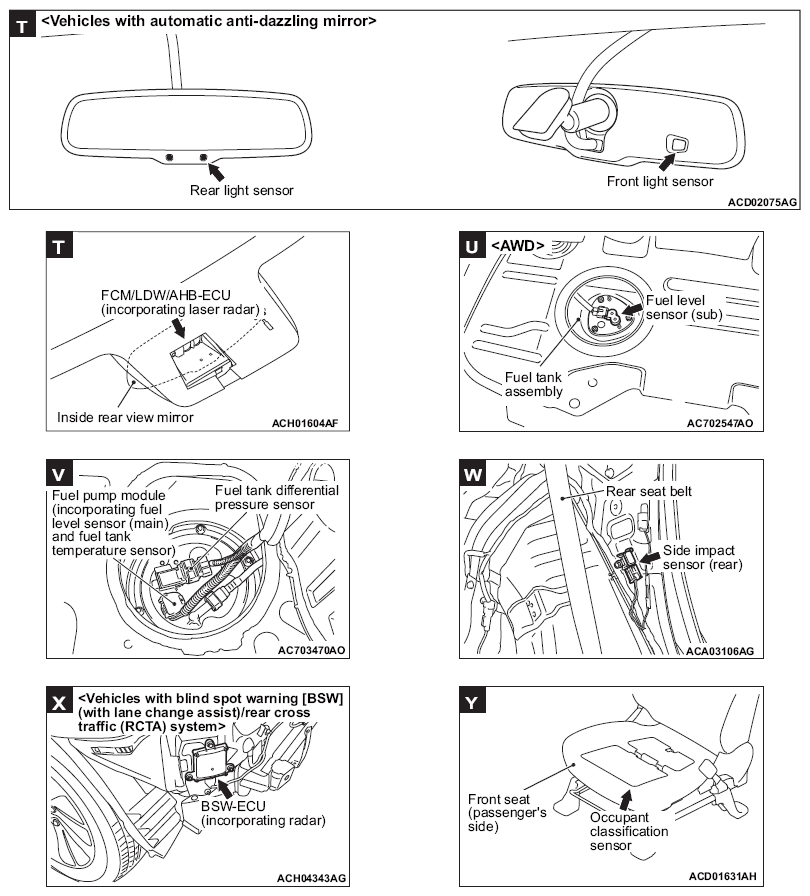

| BSW-ECU (incorporating radar) <Vehicles with blind spot warning [BSW] (with lane change assist)/rear cross traffic alert (RCTA) system> | X |
| Column switch (incorporating steering wheel sensor) | O |
| Crankshaft position sensor | B |
| Engine coolant temperature sensor | C |
| Exhaust camshaft position sensor | D |
| FCM/LDW/AHB-ECU (incorporating laser radar) | T |
| Fin thermo sensor | S |
| Front impact sensor | N |
| Front light sensor <Vehicles with automatic anti-dazzling mirror> | T |

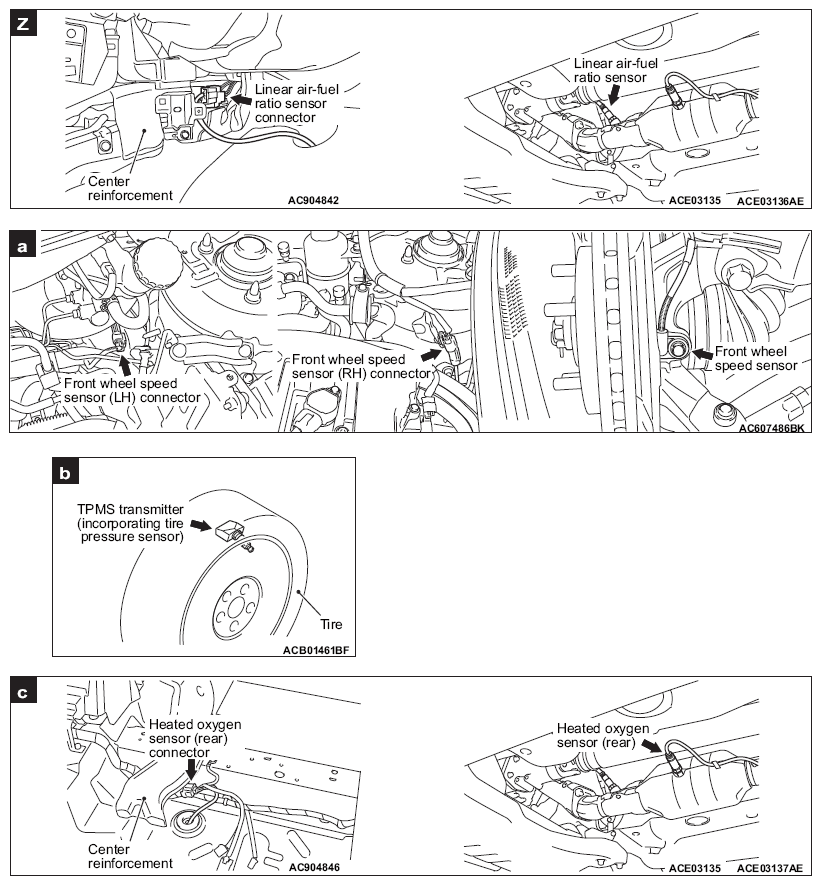

| Front wheel speed sensor | a |
| Fuel level sensor (sub) <AWD> | U |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | V |
| Fuel tank differential pressure sensor | V |
| Heated oxygen sensor (rear) | c |
| Intake camshaft position sensor | J |
| Interior temperature sensor | R |
| Knock sensor | G |
| Lighting control sensor <Vehicles with automatic light and rain sensitive AUTO wiper> | T |
| Linear air-fuel ratio sensor | Z |
| Manifold absolute pressure sensor | H |
| Mass airflow sensor | E |
| Occupant classification sensor | Y |
| Primary pulley speed sensor | L |
| Rear light sensor <Vehicles with automatic anti-dazzling mirror> | T |

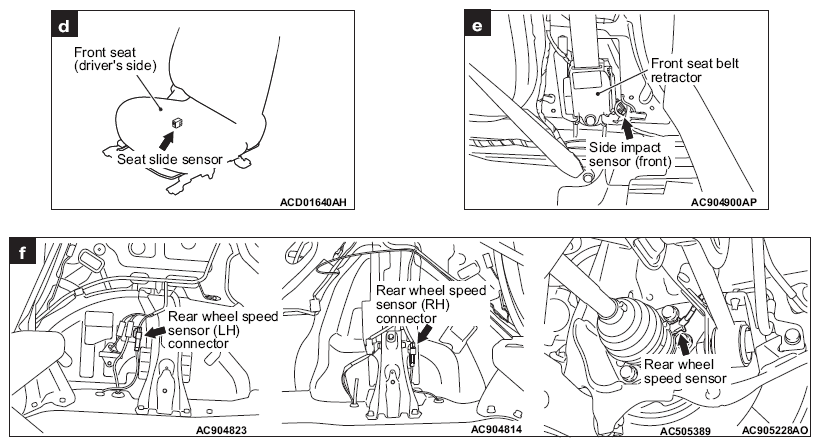

| Rear wheel speed sensor | f |
| Seat slide sensor | d |
| Secondary pulley speed sensor | L |
| Side impact sensor (front) | e |
| Side impact sensor (rear) | W |
| Throttle body assembly (incorporating throttle position sensor) | I |
| Torque sensor | P |
| TPMS transmitter (incorporating tire pressure sensor) | b |
| Turbine speed sensor | K |
NOTE:
*: also equipped at the right side.
