Disassembly And Assembly: Notes

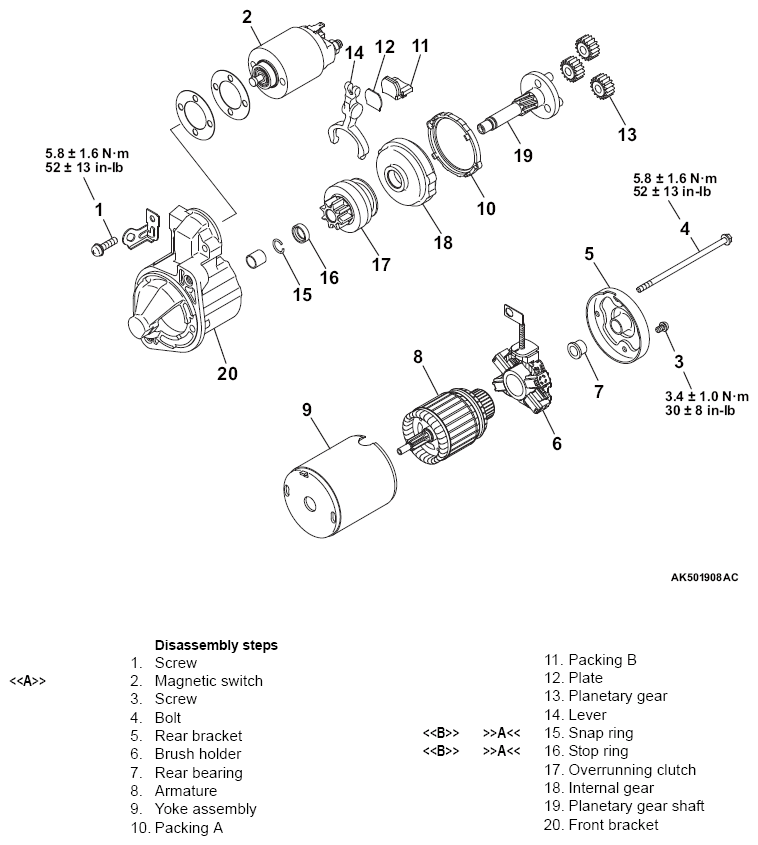

Fig 1: Disassembling/Assembling Starter Motor Assembly Components Location With Torque Specification
G14212818Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
