Commutator Check

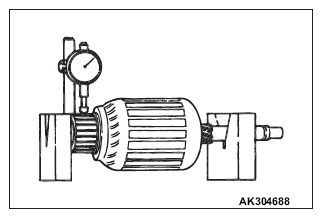

1. Place the armature on a pair of V-blocks, and check the deflection by using a dial gauge.

   Standard value: 0.05 mm (0.002 inch)

   Limit: 0.1 mm (0.004 inch)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

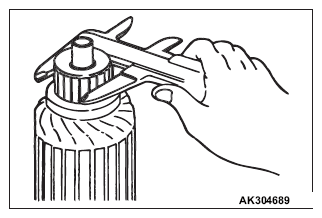

2. Check the outer diameter of the commutator.

   Standard value: 29.4 mm (1.16 inch)

   Minimum limit: 28.8 mm (1.13 inch)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

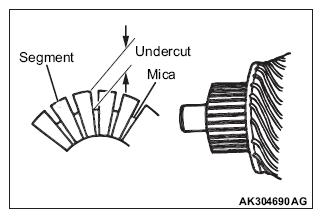

3. Check the depth of the undercut between segments.

Standard value: 0.5 mm (0.02 inch)

Minimum limit: 0.2 mm (0.008 inch)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
