Removal And Installation

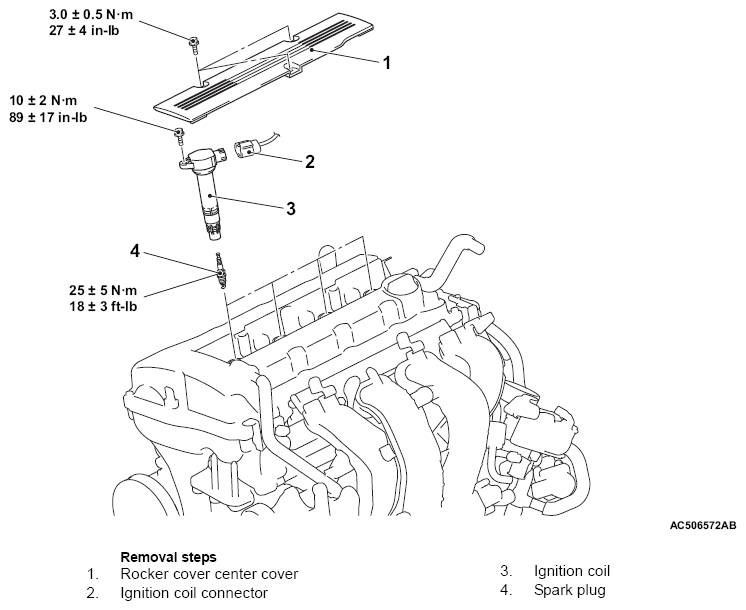

Fig 1: Removing/Installing Ignition Coil Components Location With Torque Specification
G14212840Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
