Disassembly And Reassembly: Notes

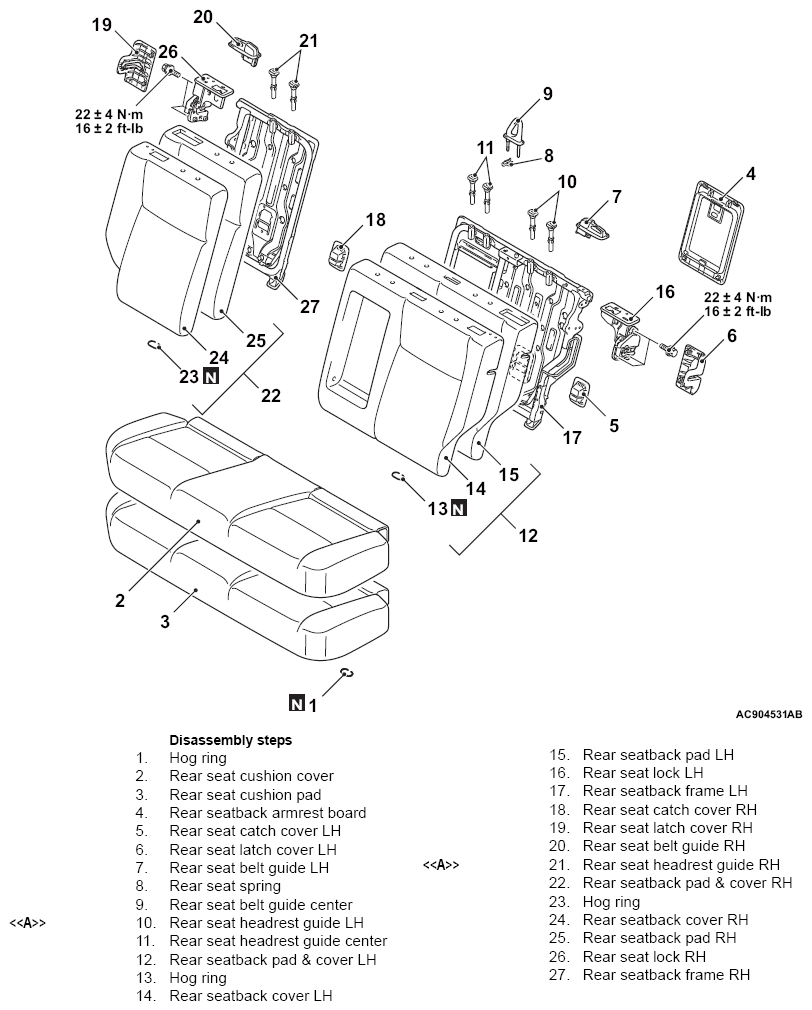

Fig 1: Disassembling/Assembling Seat Assembly Components With Torque Specification
G14214333Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
