Code 13, Coolant Temperature Sensor

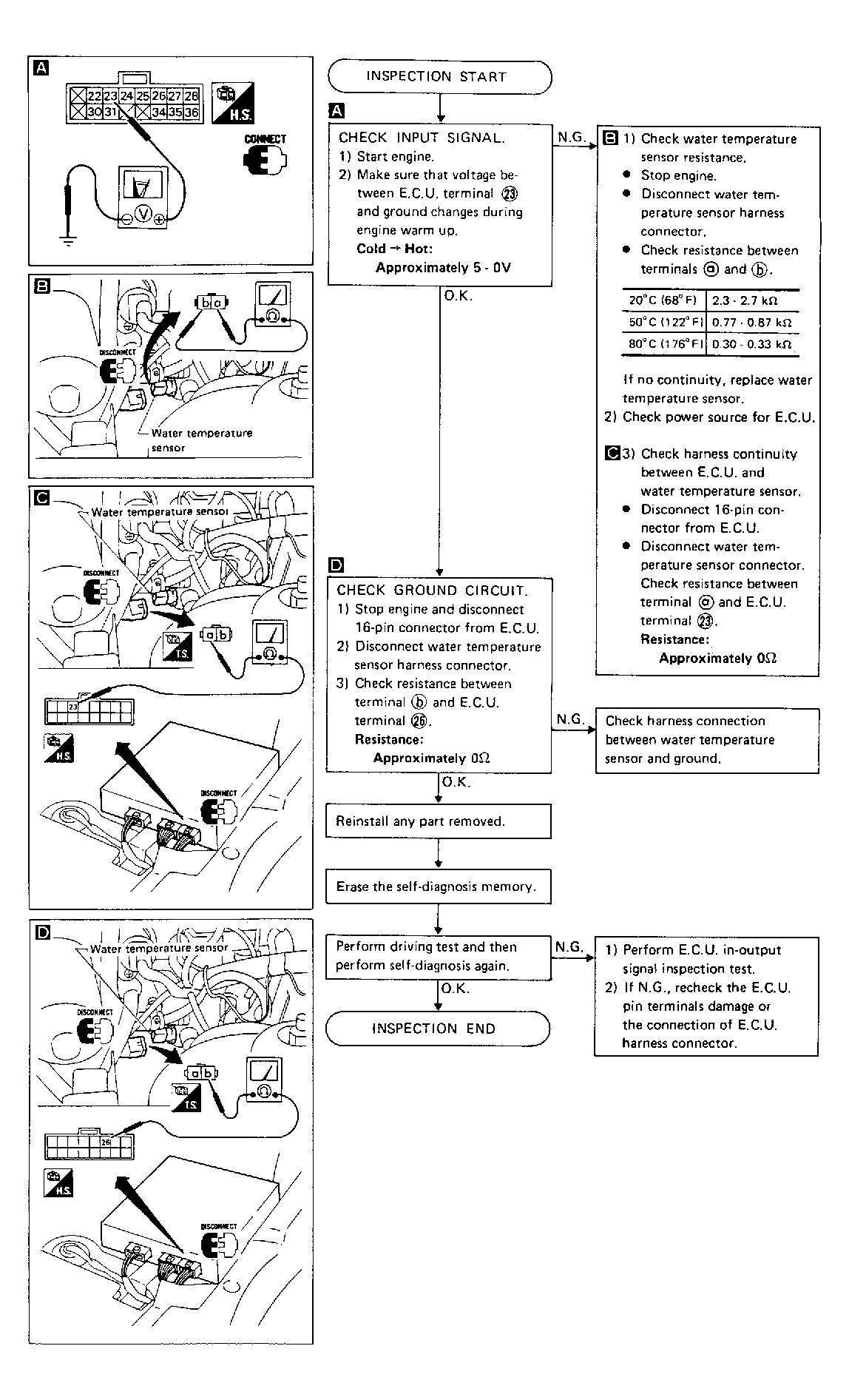

Fig 1: Test C, Pulsar Nx & Sentra (E16i)

G61669

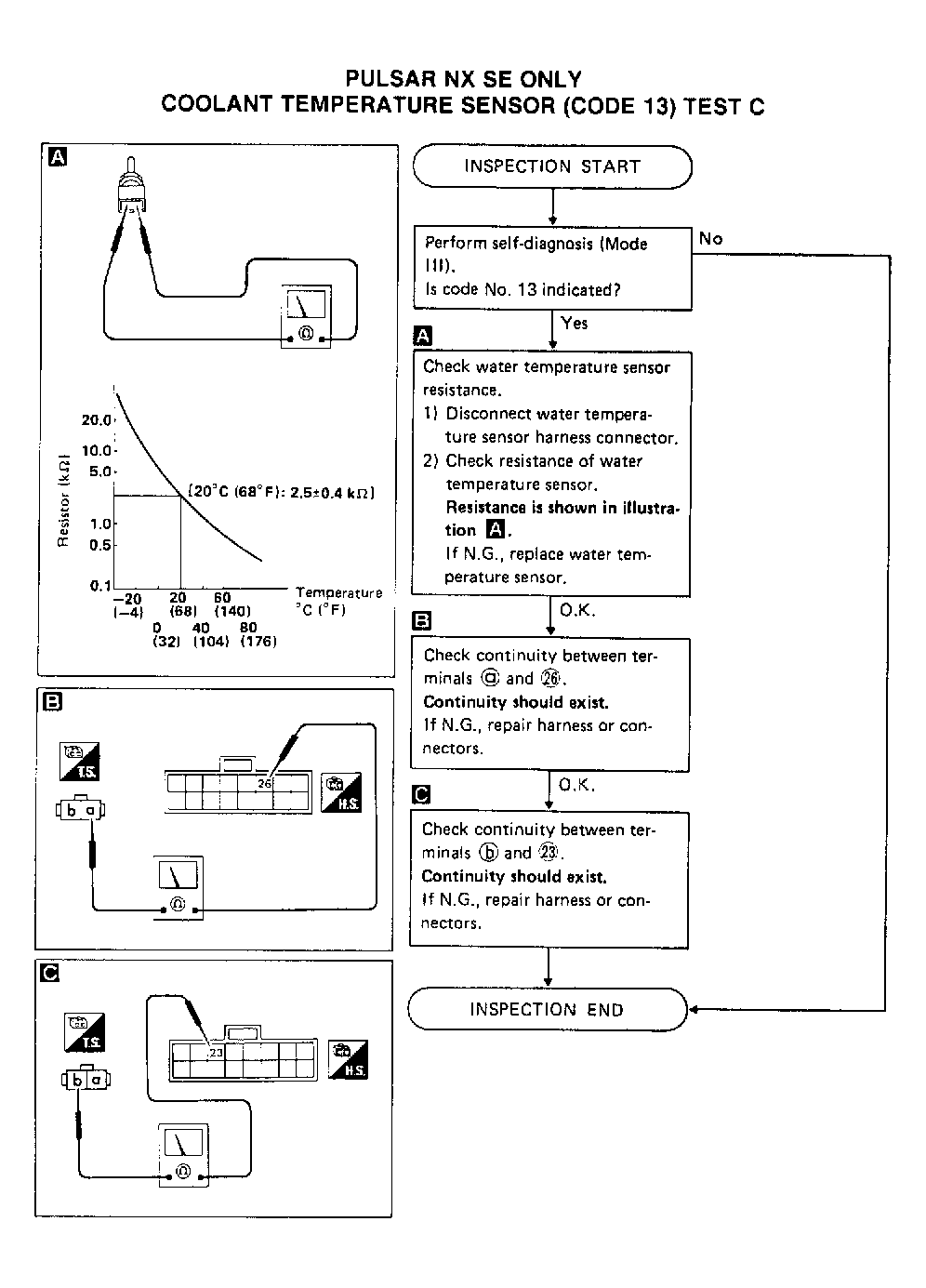

Fig 2: Test C, Pulsar NX SE

G61670

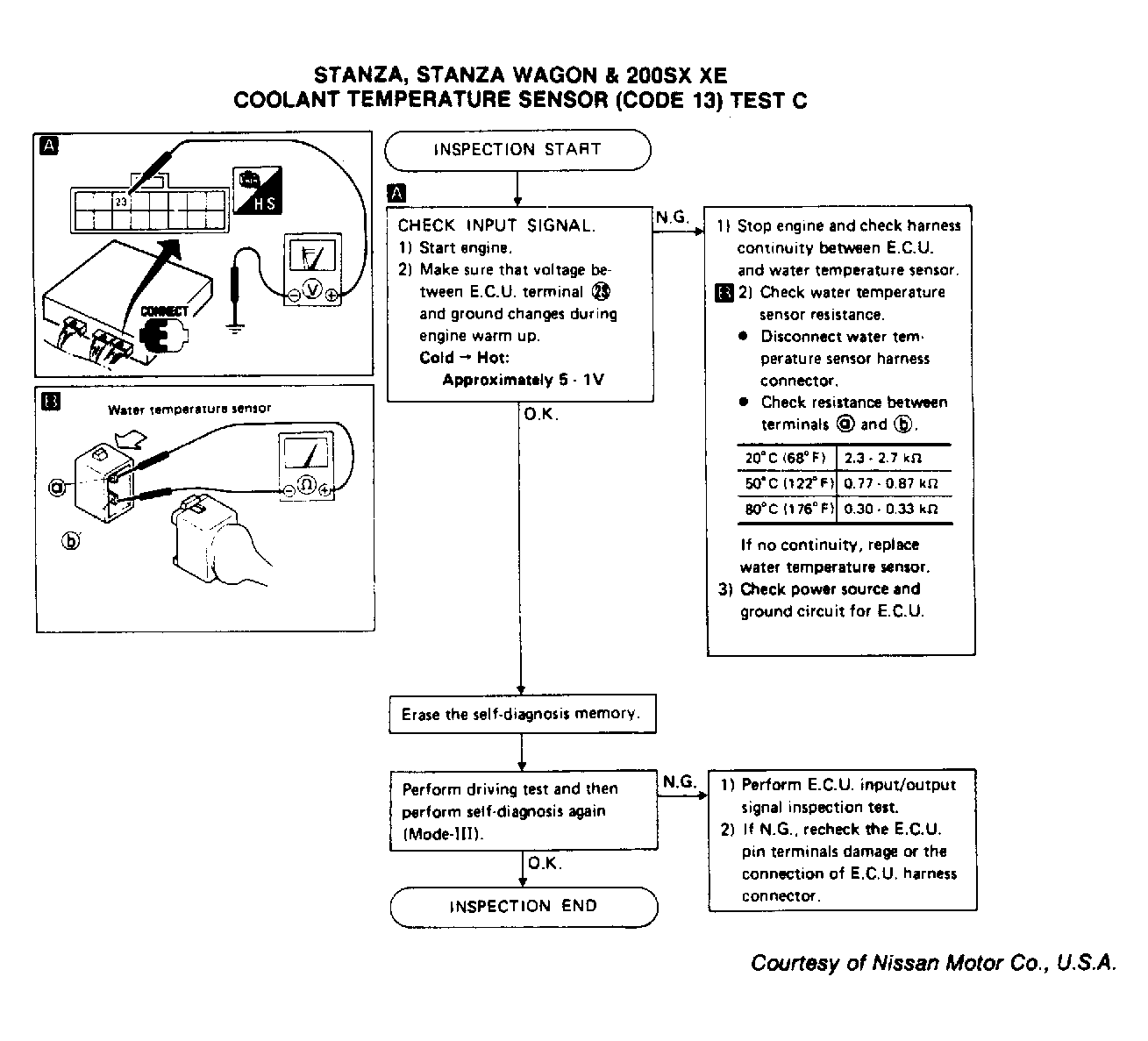

Fig 3: Test C, Stanza, Stanza Wagon & 200 SX XE

G61671
