Code 42, Throttle Sensor

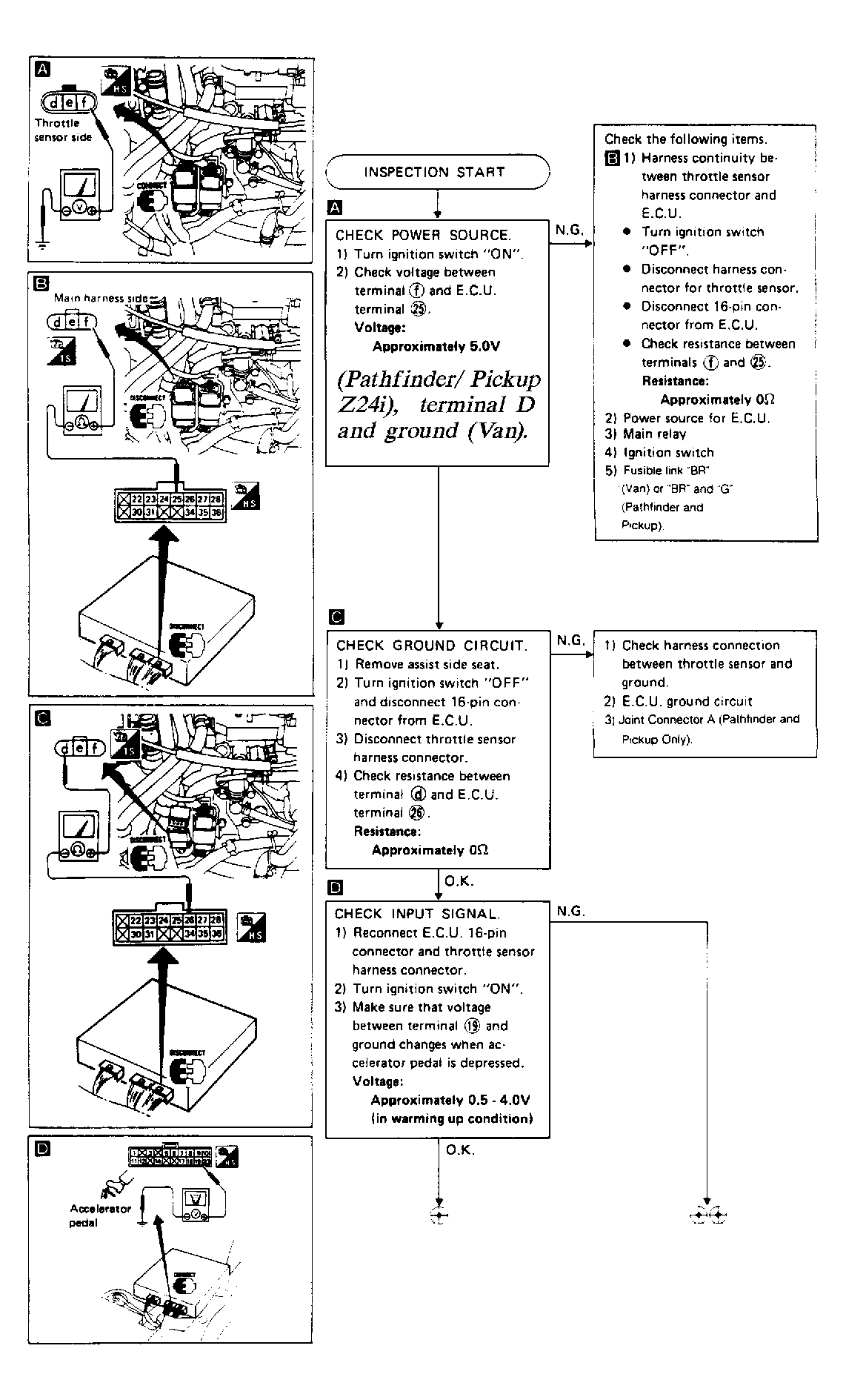

Fig 1: Test F, Throttle Sensor (1 of 2)

G61688

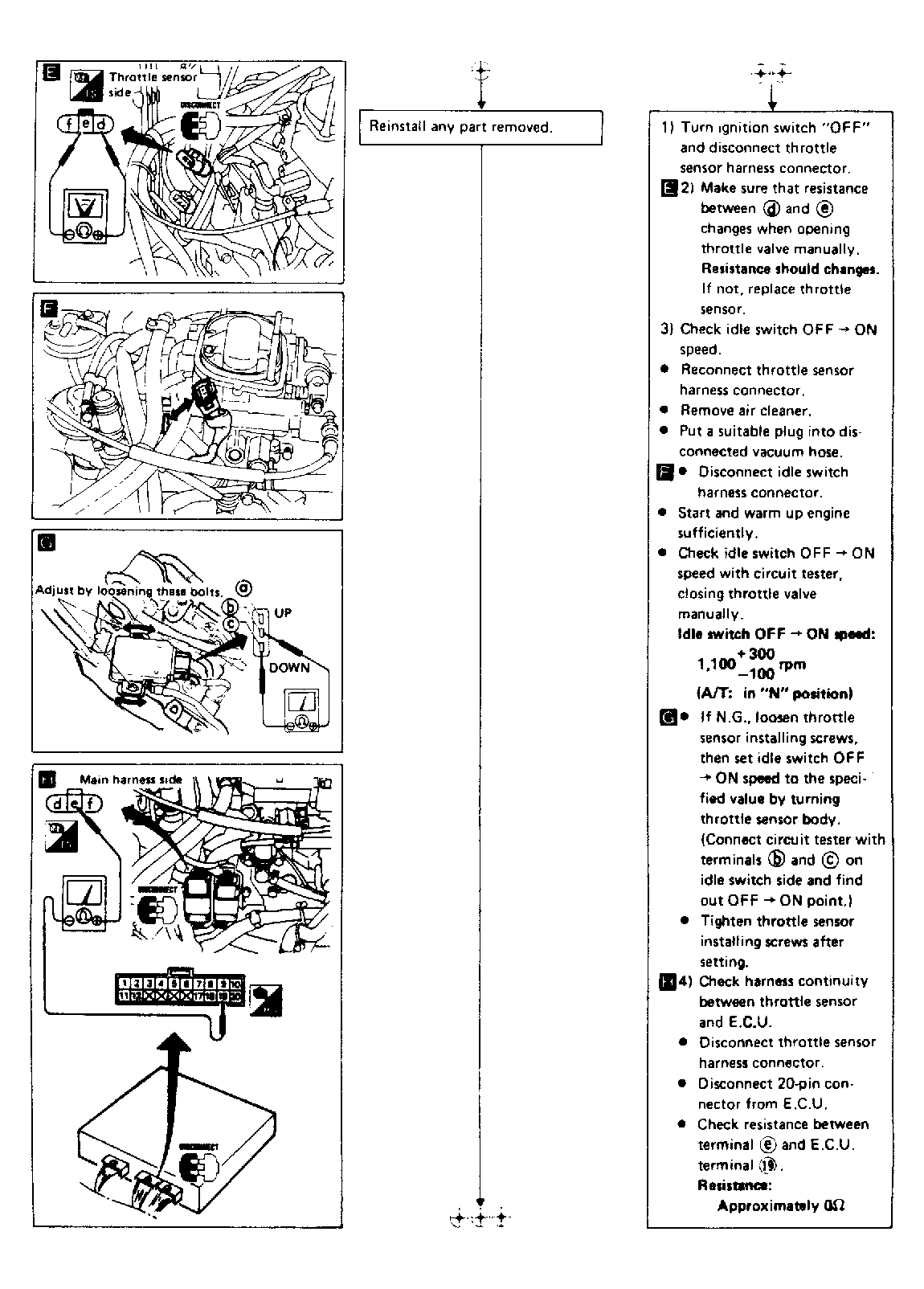

Fig 2: Test F, Throttle Sensor (2 of 2)

G61689
