DRIVEABILITY/System Inspection Charts

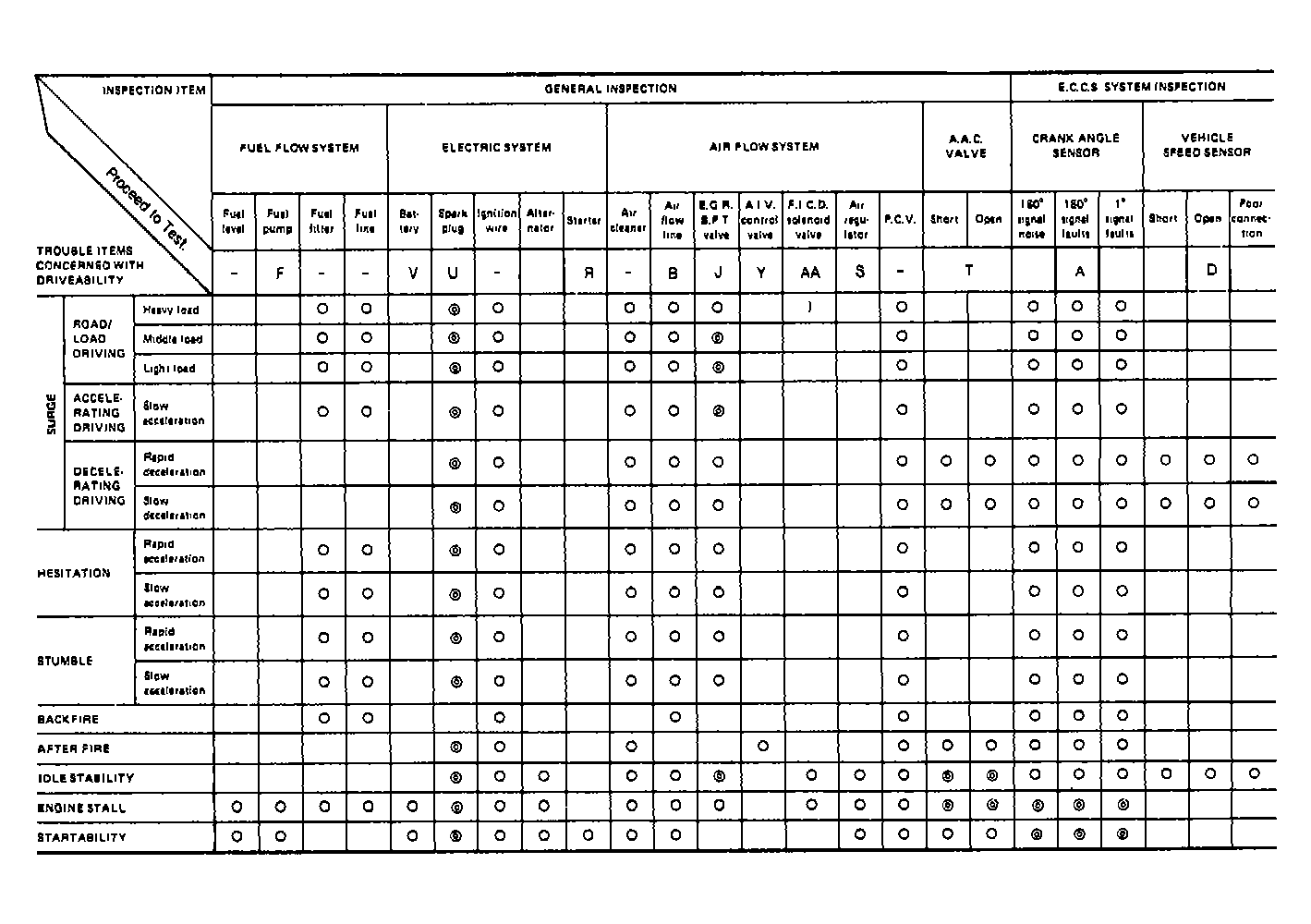

Fig 1: Driveability Inspection Tables (1 of 2)

G94939

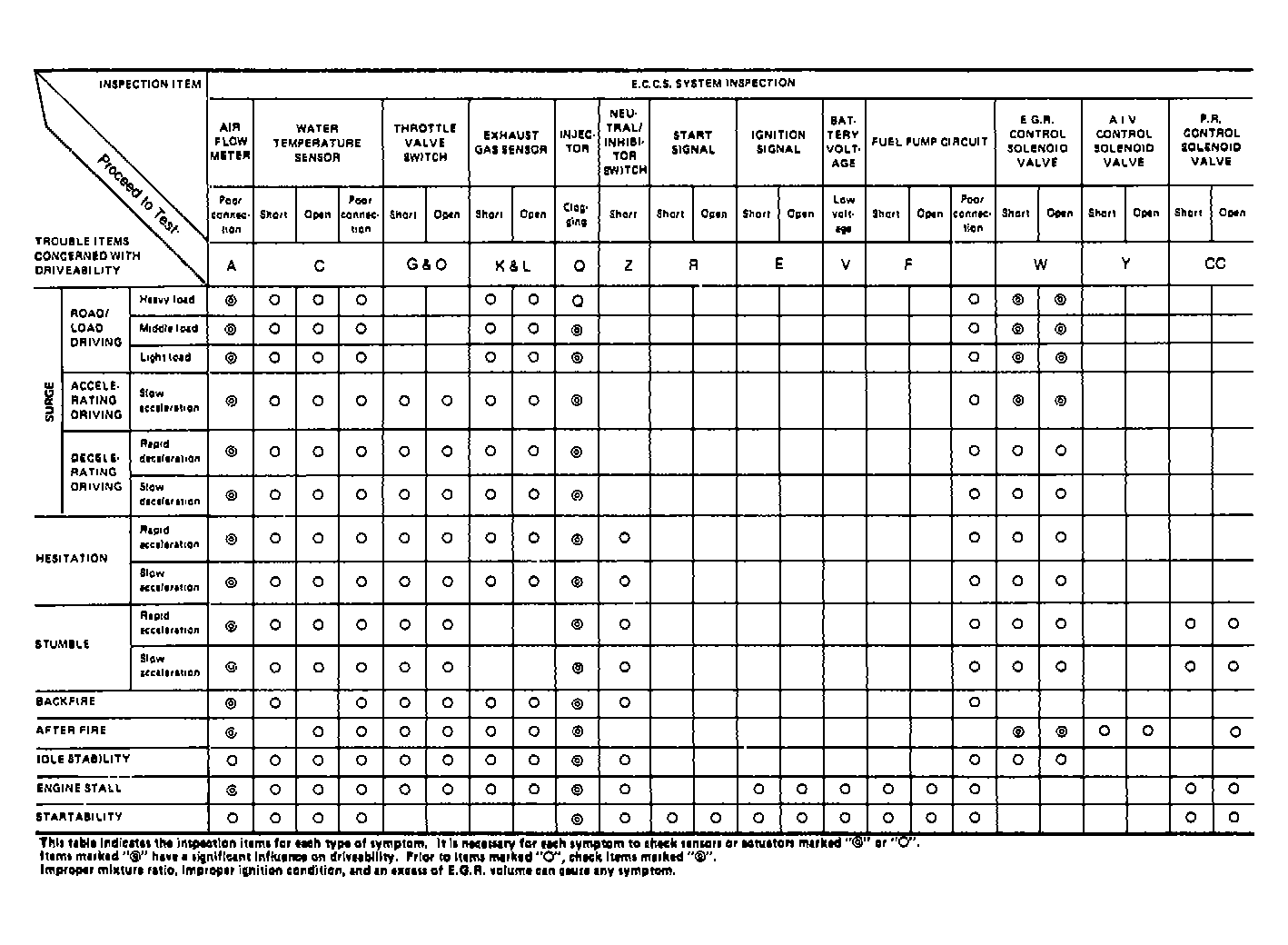

Fig 2: Driveability Inspection Tables (2 of 2)

G94940

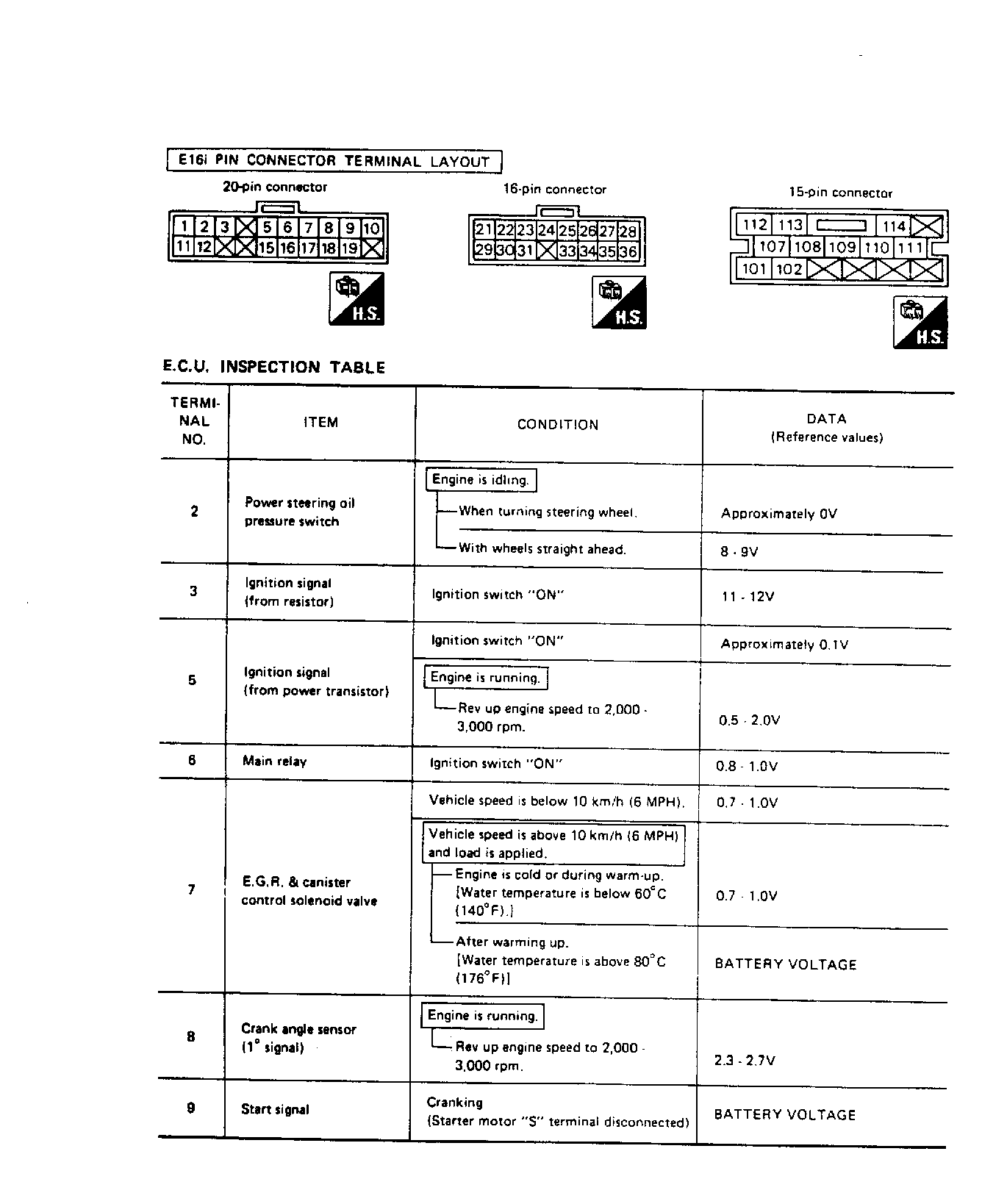

Fig 3: ECU Input/Output Voltage Signal Inspection Table (1 of 3)

G61794

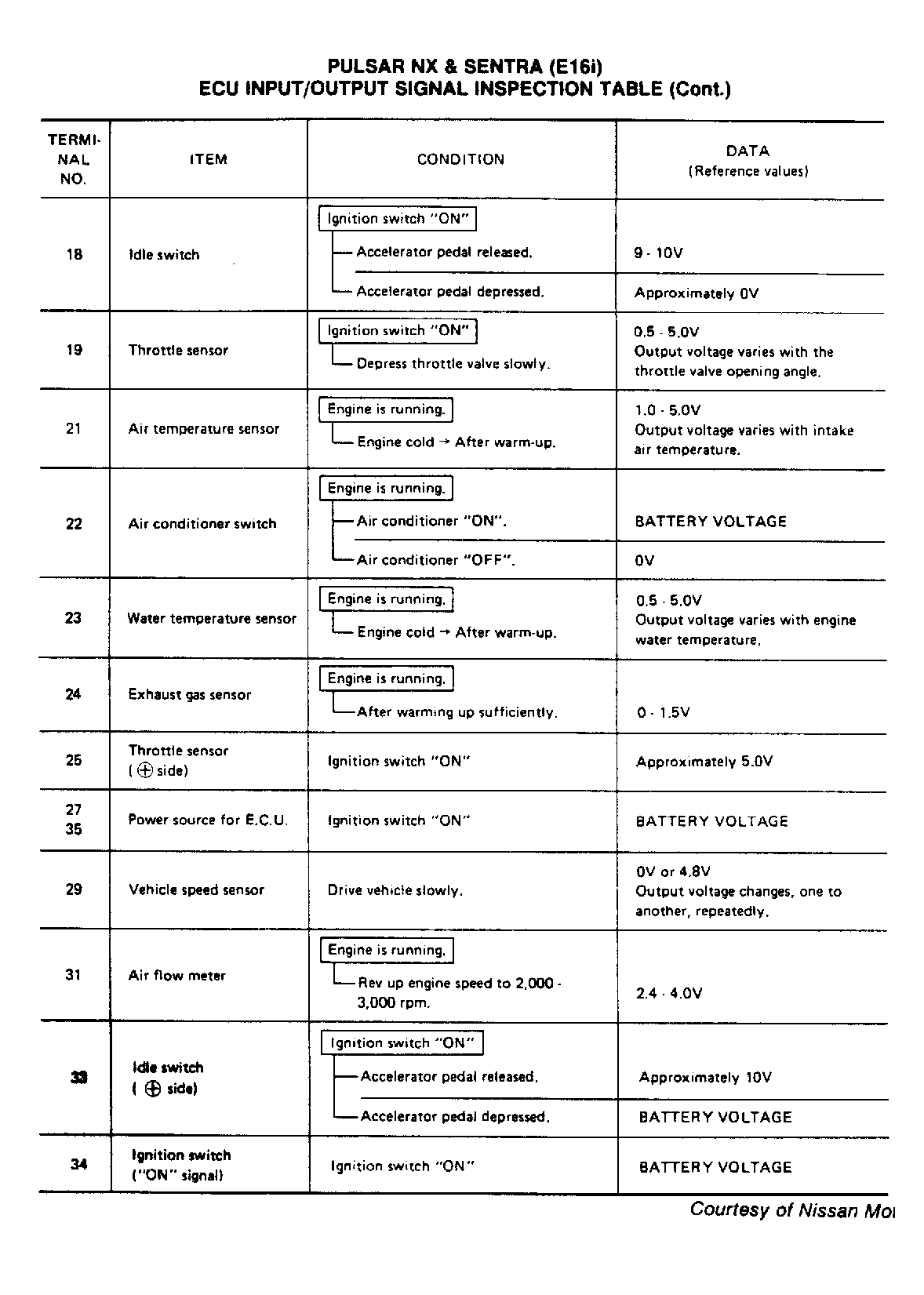

Fig 4: ECU Input/Output Voltage Signal Inspection Table (2 of 3)

G61795

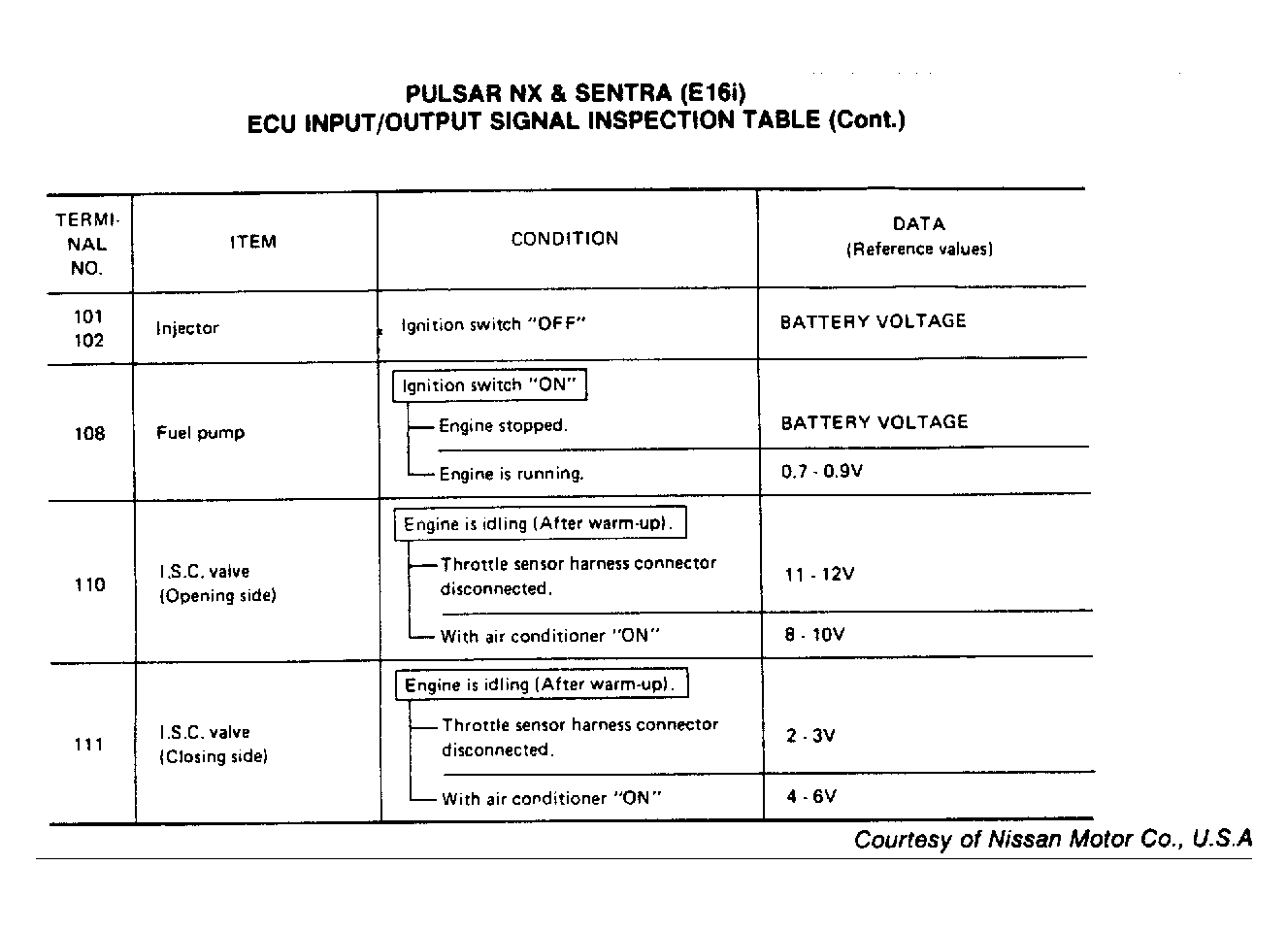

Fig 5: ECU Input/Output Voltage Signal Inspection Table (3 of 3)

G61796

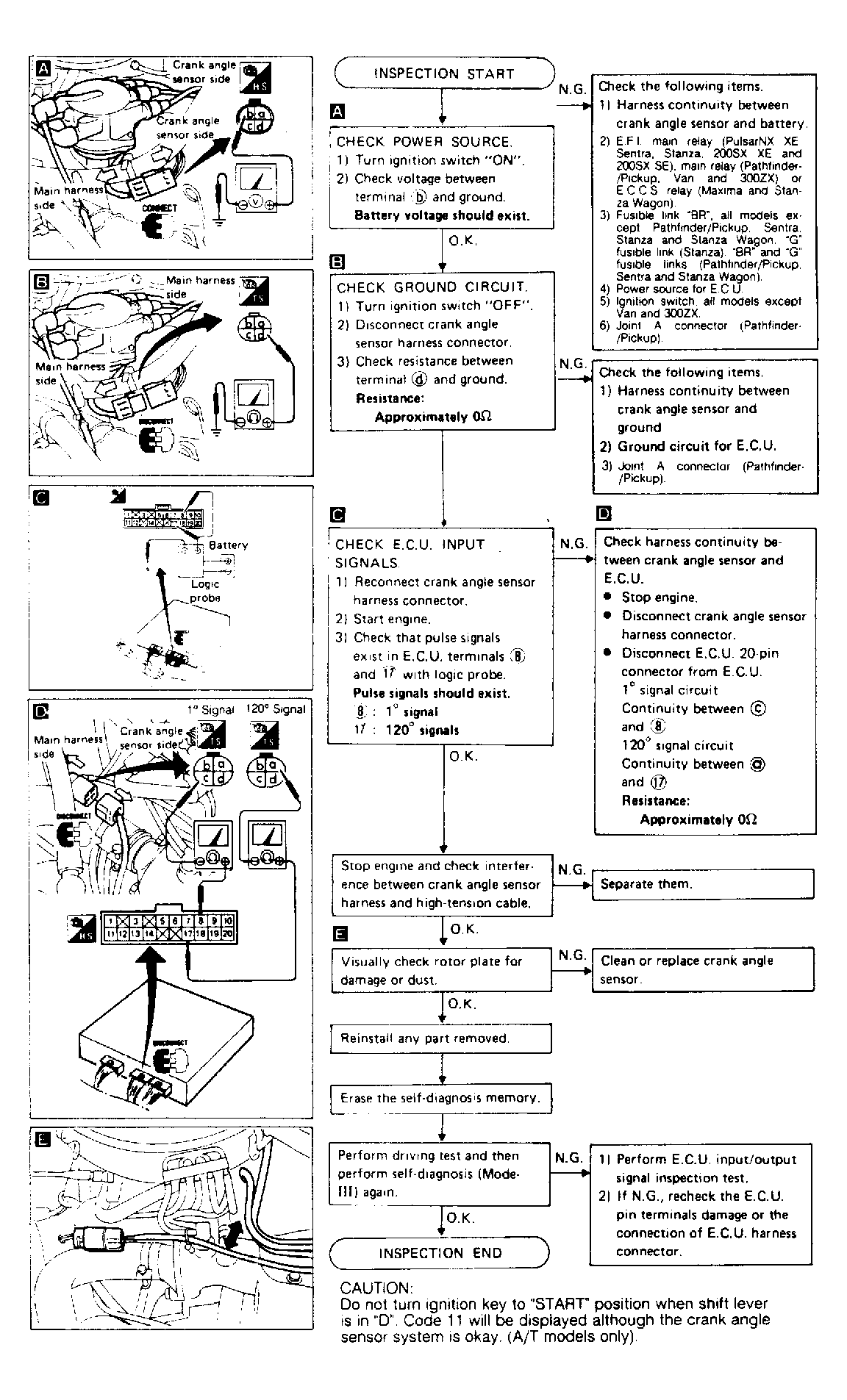

Fig 6: Crank Angle Sensor (Code 11) Test A

G94960

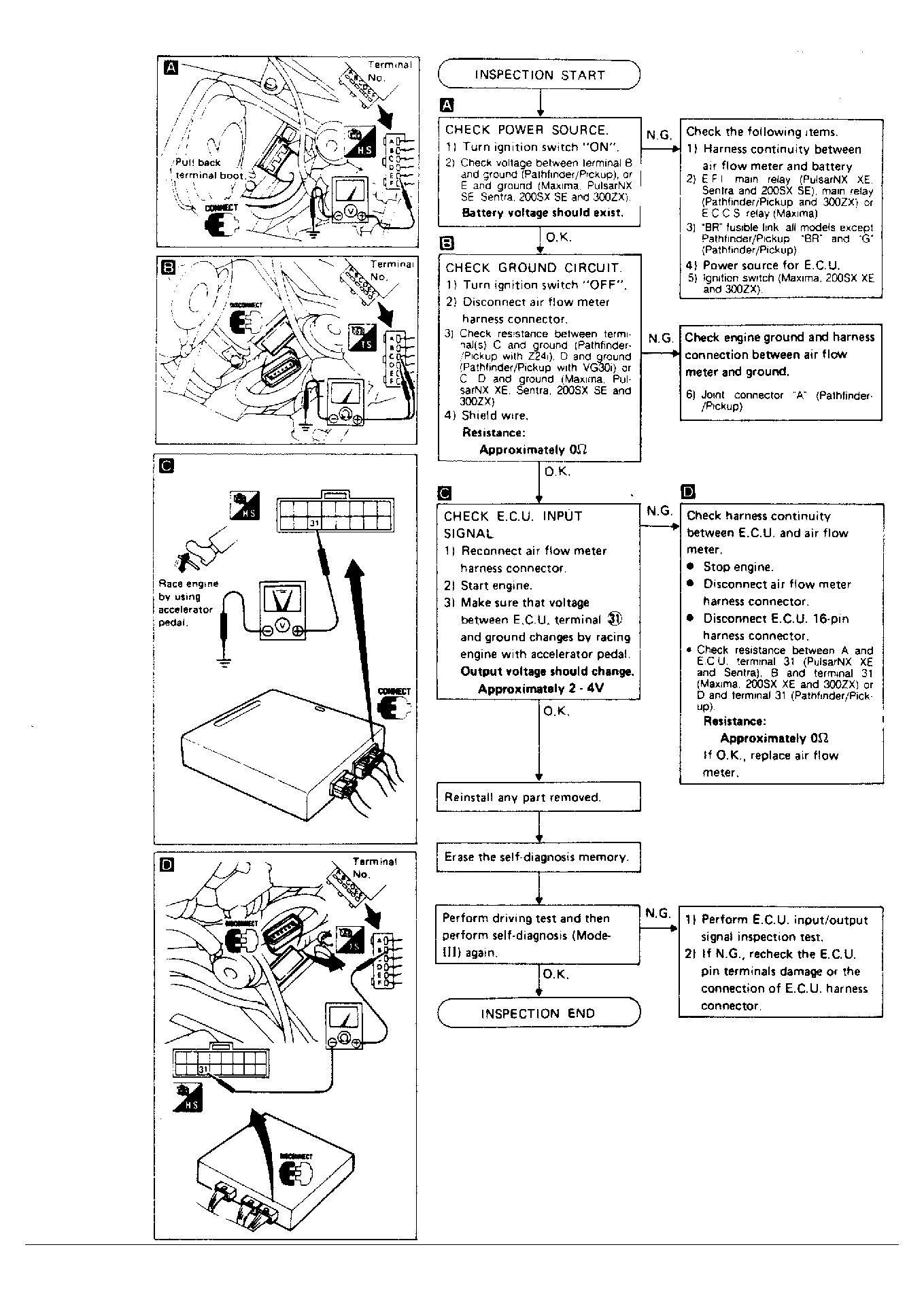

Fig 7: Mass Airflow Meter (Code 12) Test B

G94963

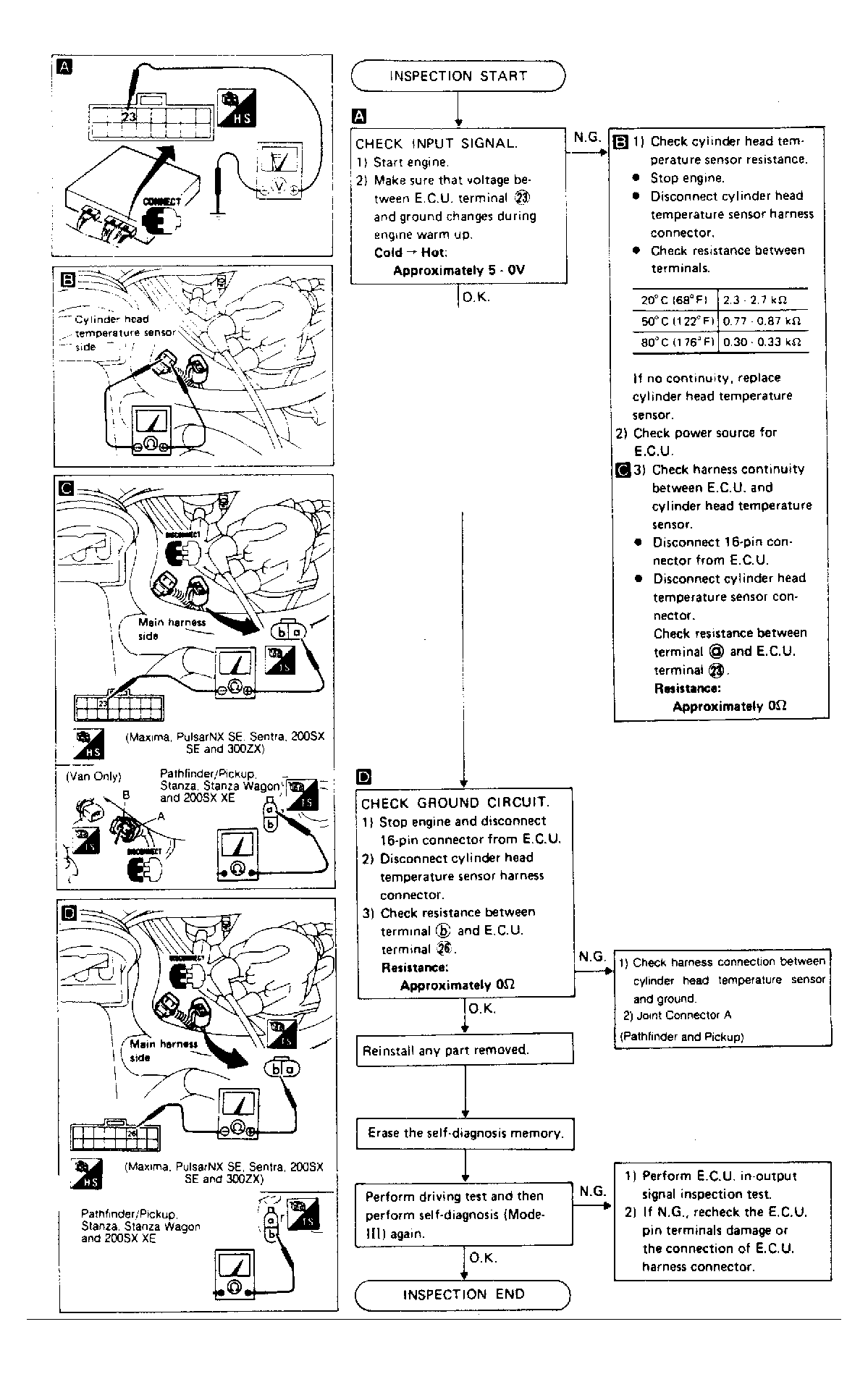

Fig 8: Cylinder Head Temperature Sensor (Code 13) Test C

G94966

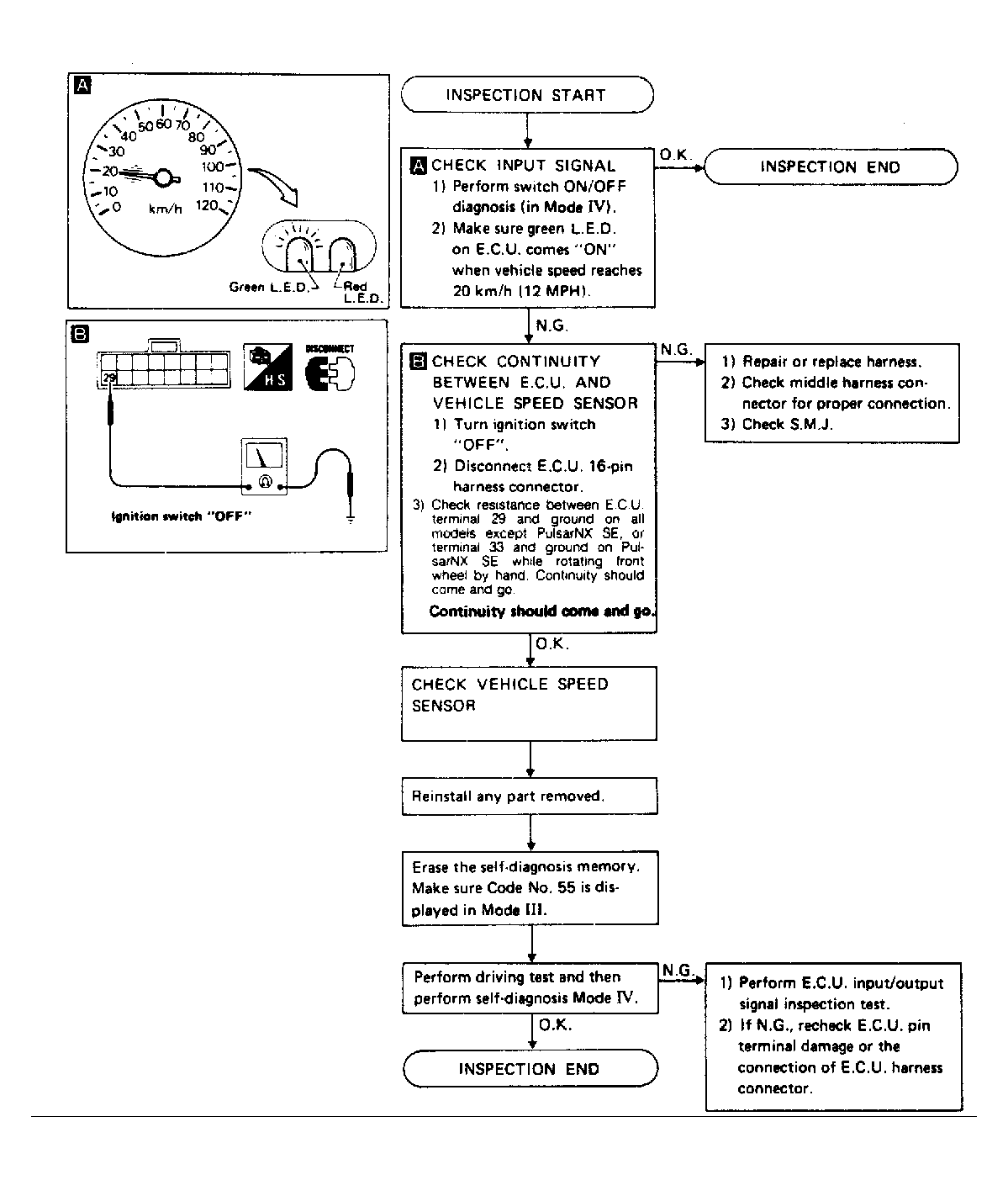

Fig 9: Vehicle Speed Sensor (Code 14) Test D

G94968

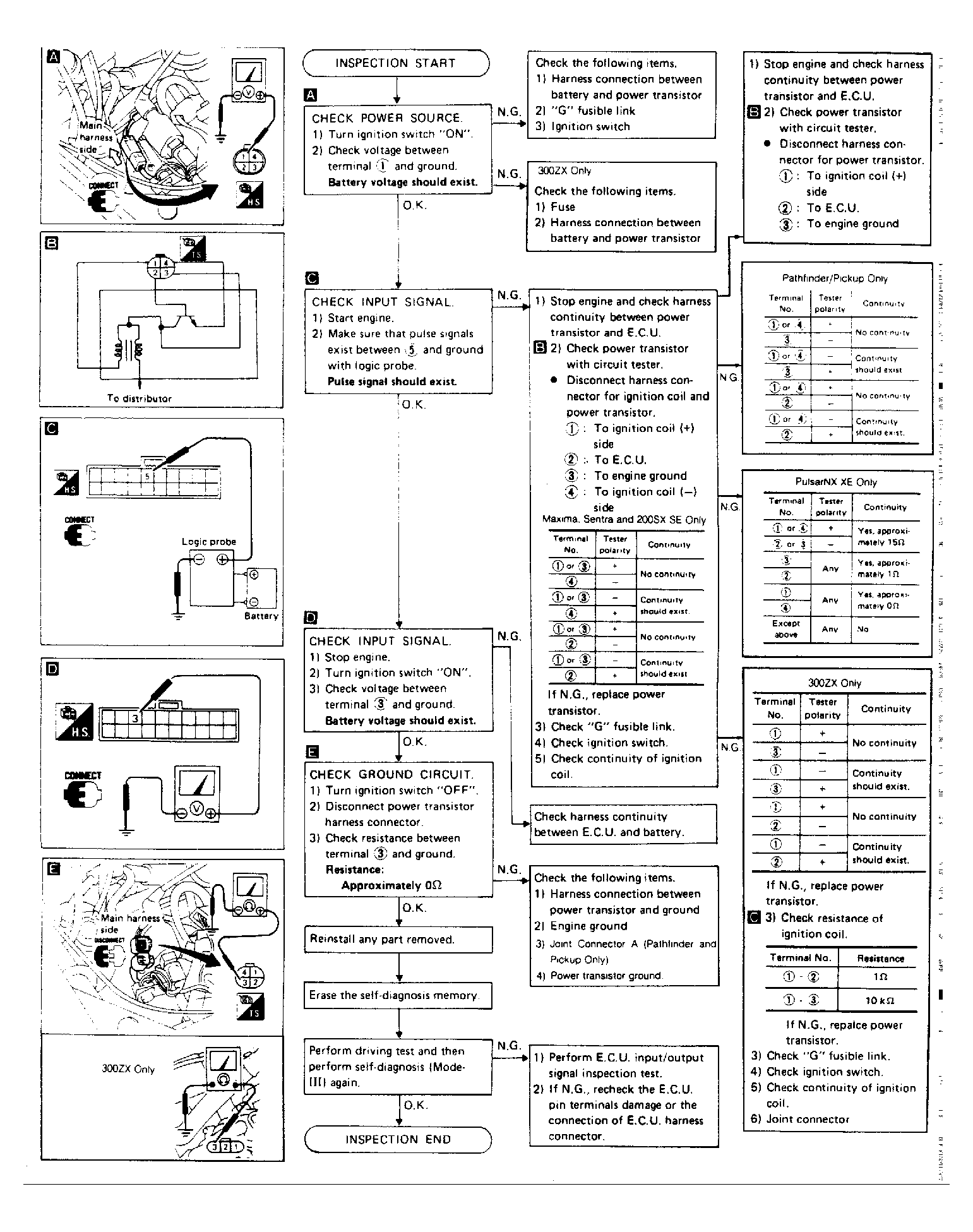

Fig 10: Ignition Signal (Code 21) Test E

G94972

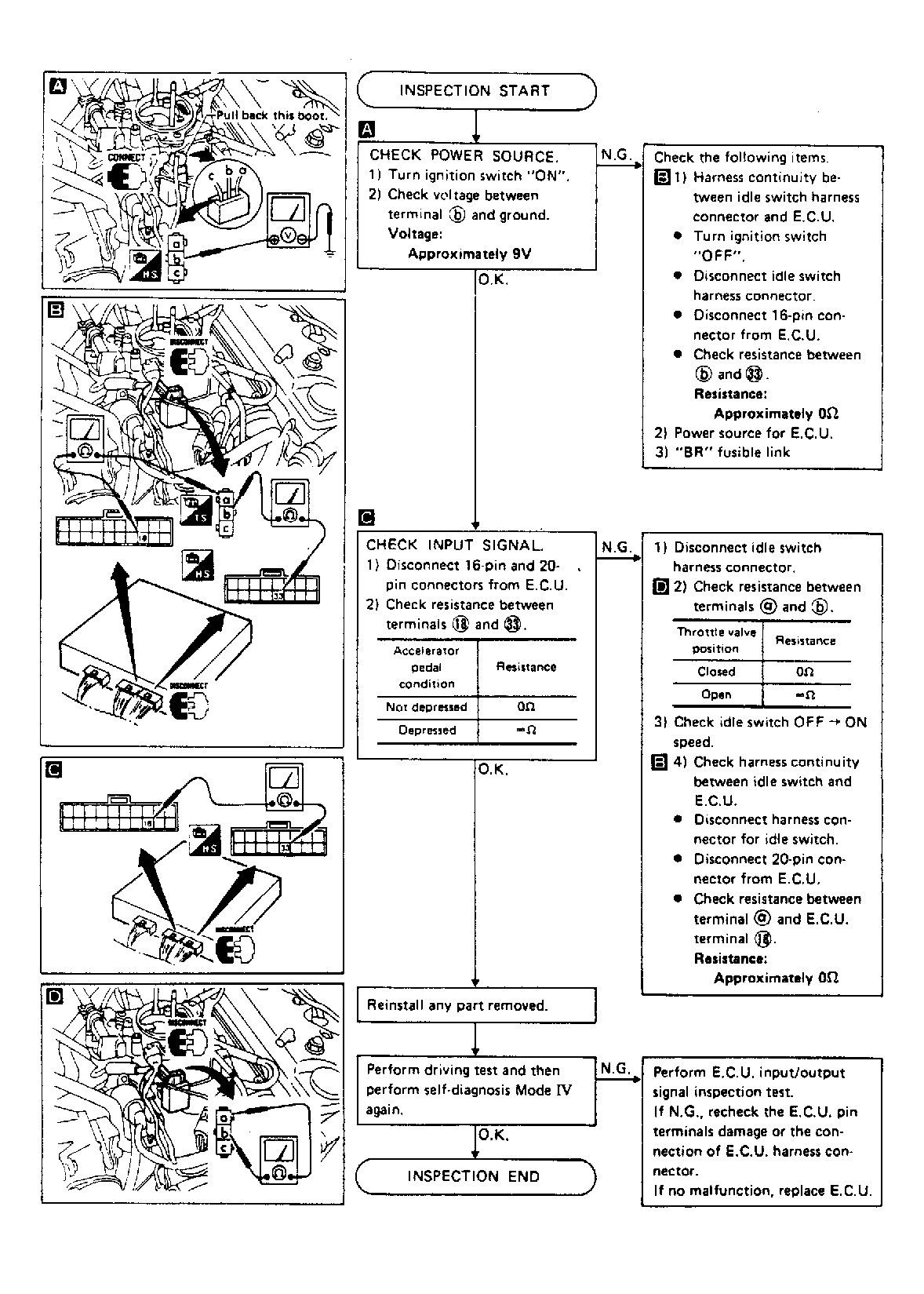

Fig 11: Idle Switch (Code 23) Test G

G94976

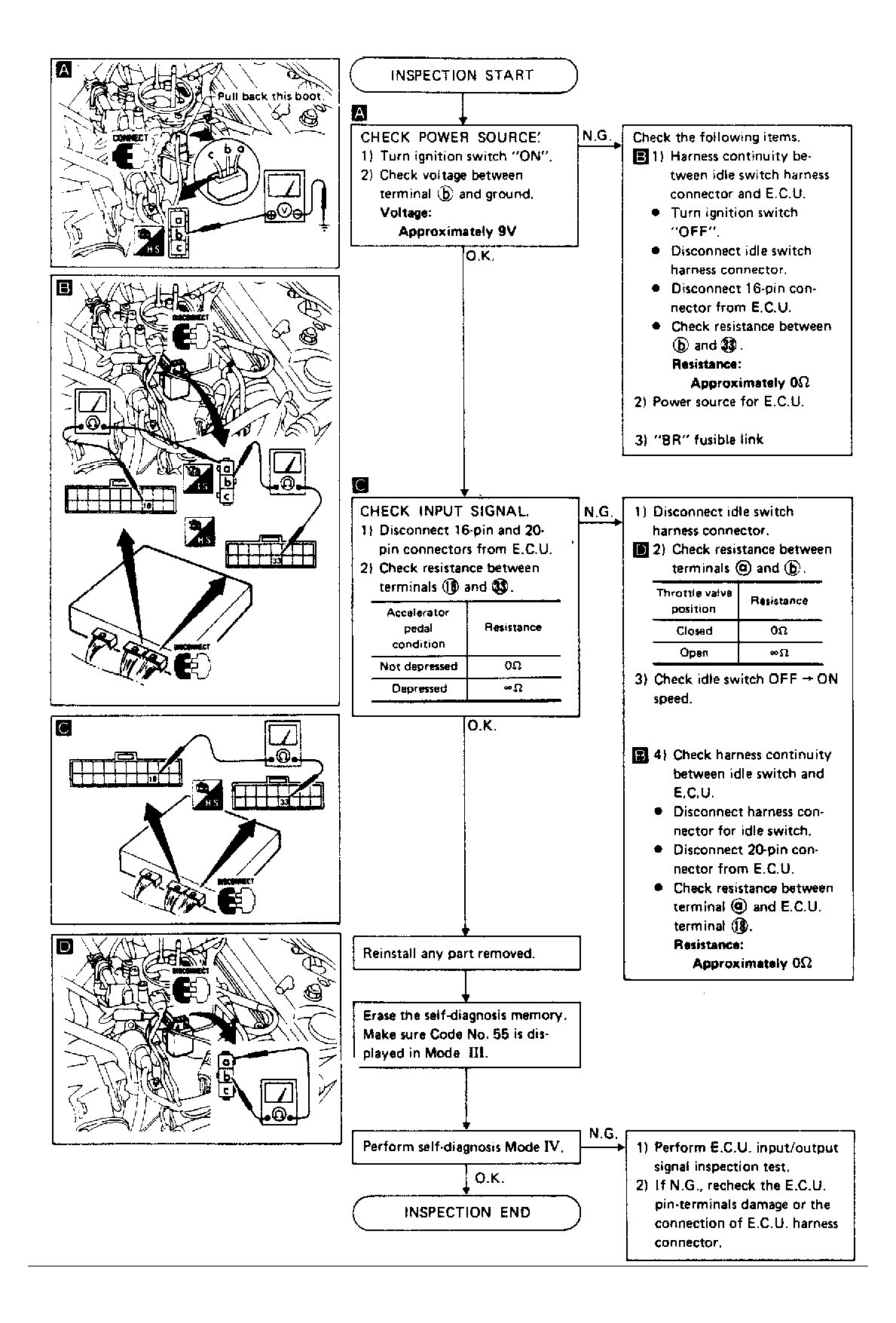

Fig 12: Idle Switch (Switch On/Off Diagnosis) (Code 23) Test G

G94979

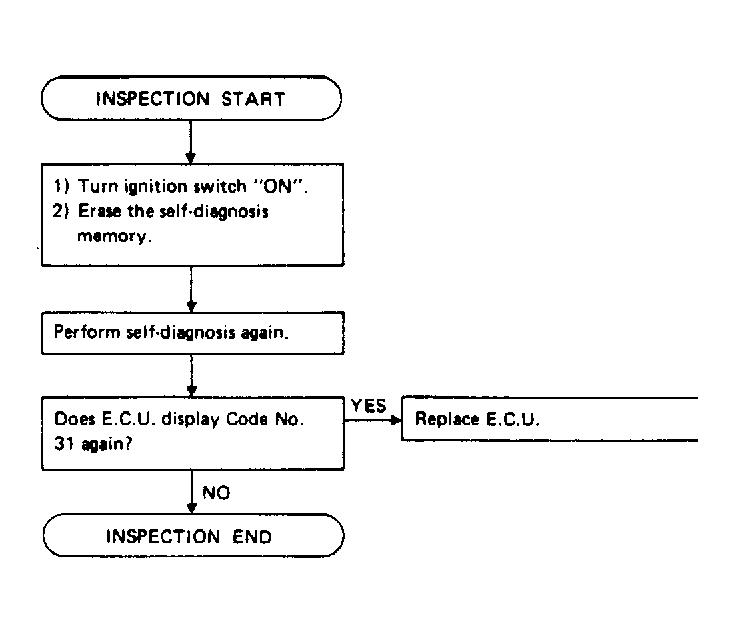

Fig 13: Engine Control Unit Check (ECU) (Code 31) Test H

G94981

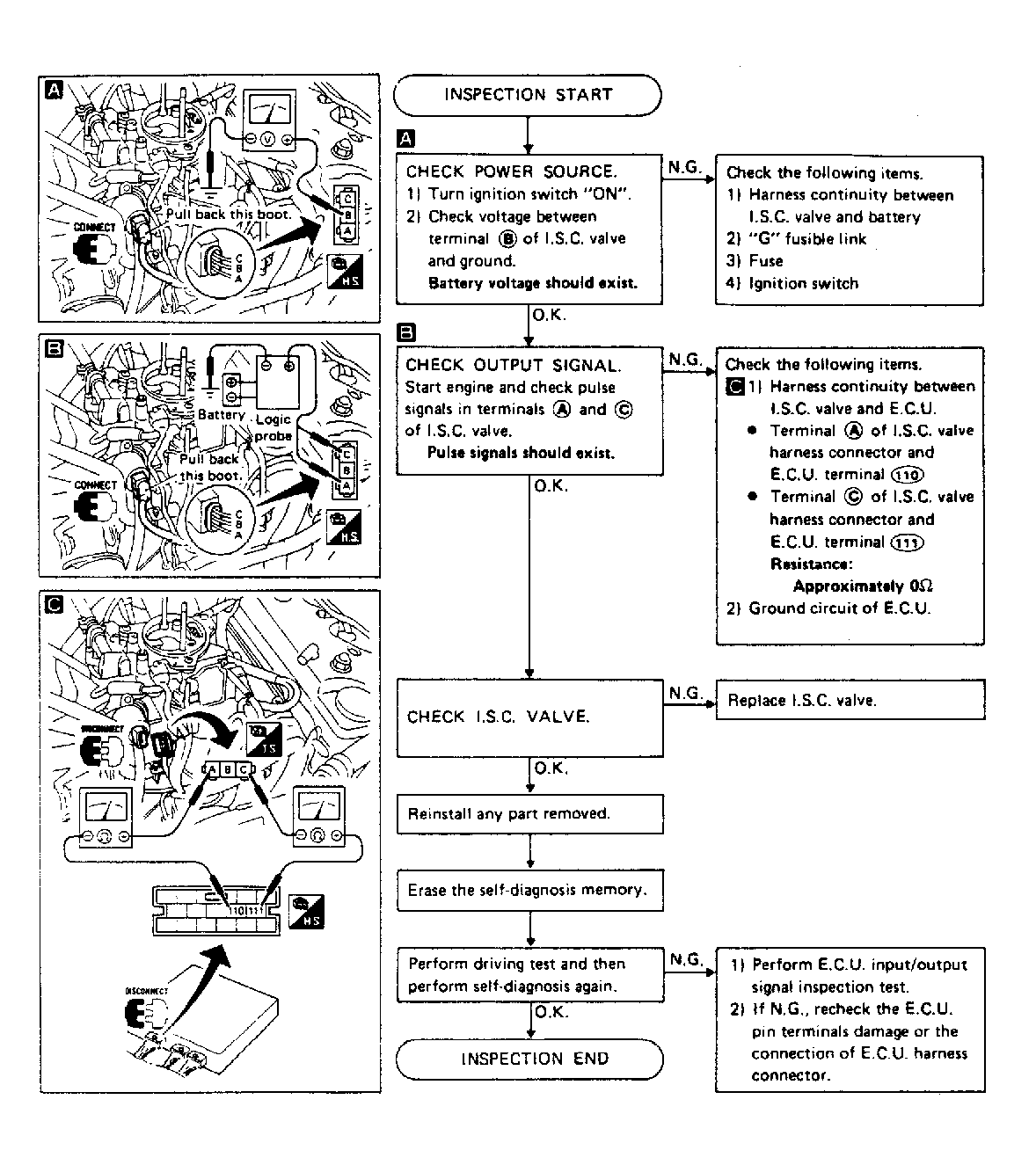

Fig 14: Idle Speed Control Valve (Code 25) Test I

G94982

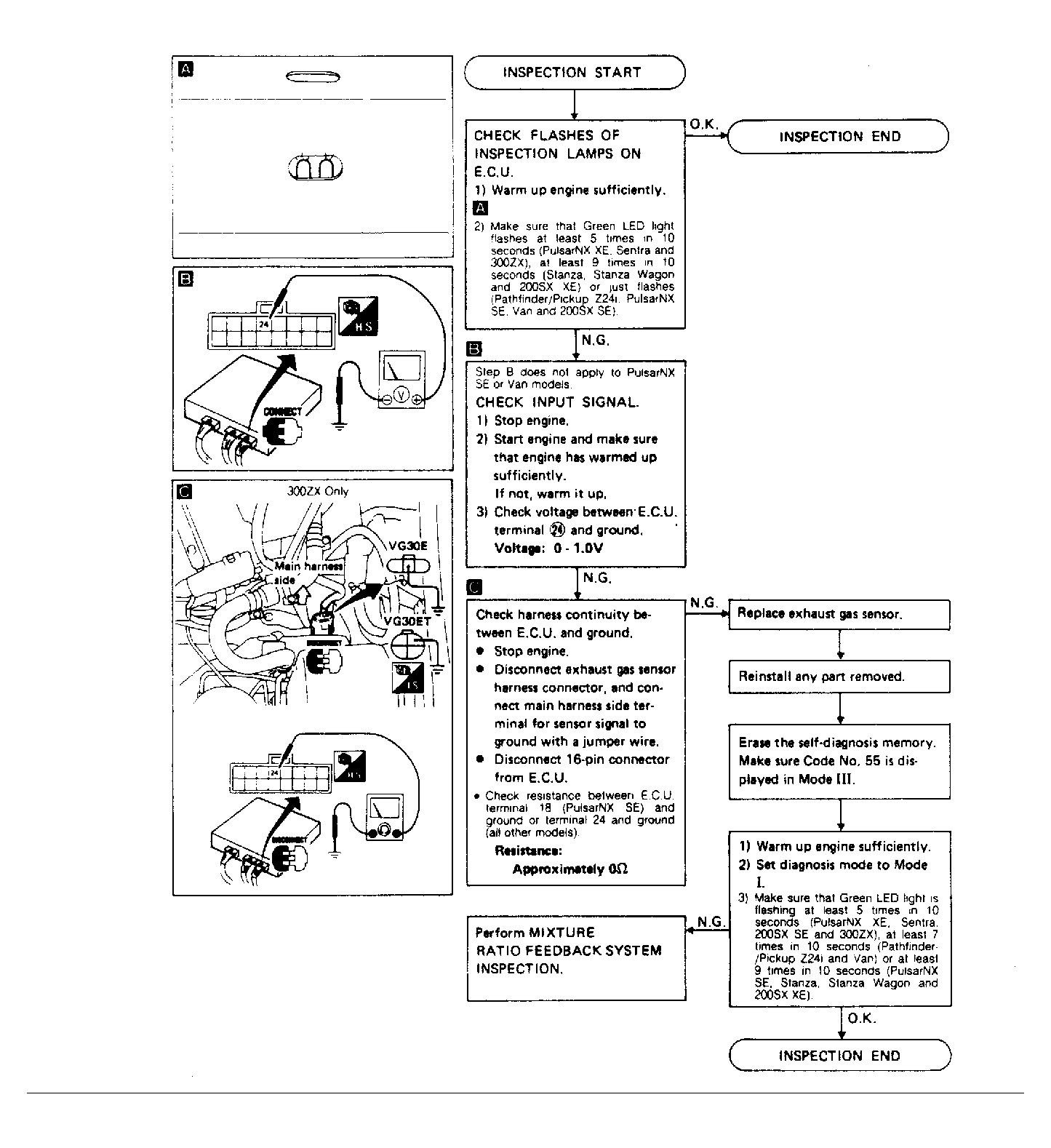

Fig 15: Exhaust Gas Sensor (Code 33) Test K

G94985

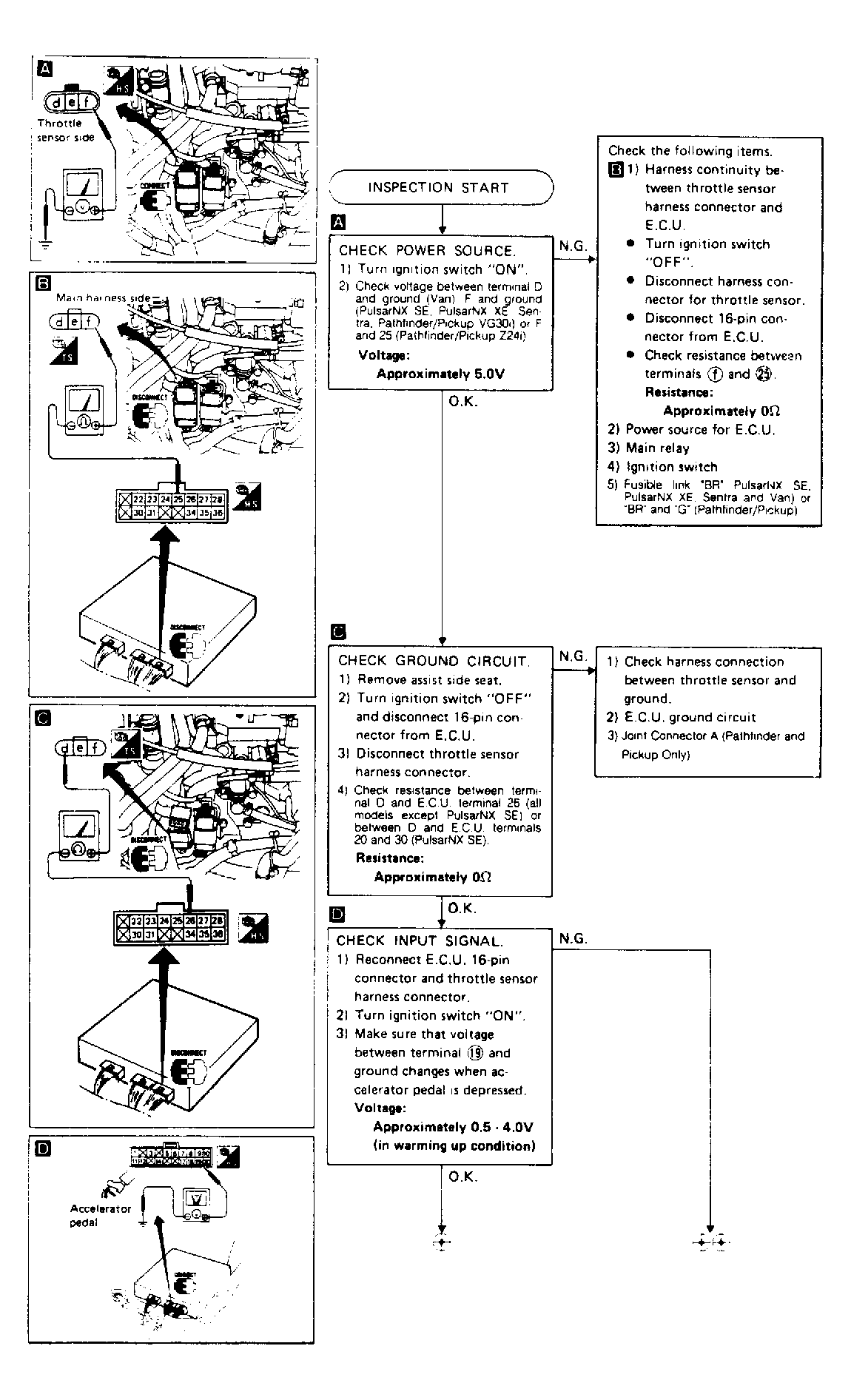

Fig 16: Throttle Position Sensor (Code 43) Test O (1 of 2)

G94991

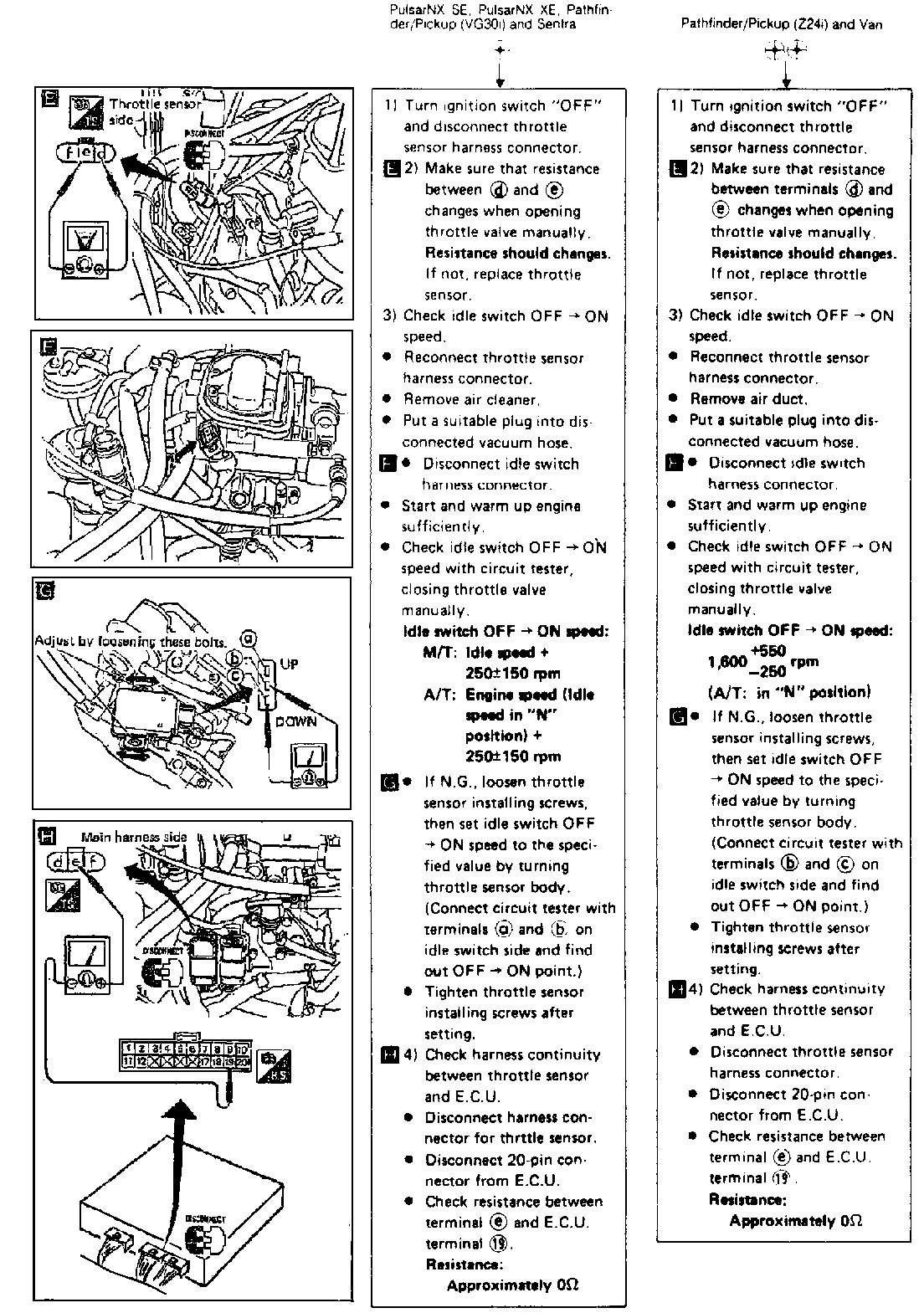

Fig 17: Throttle Position Sensor (Code 43) Test O (2 of 2)

G94992

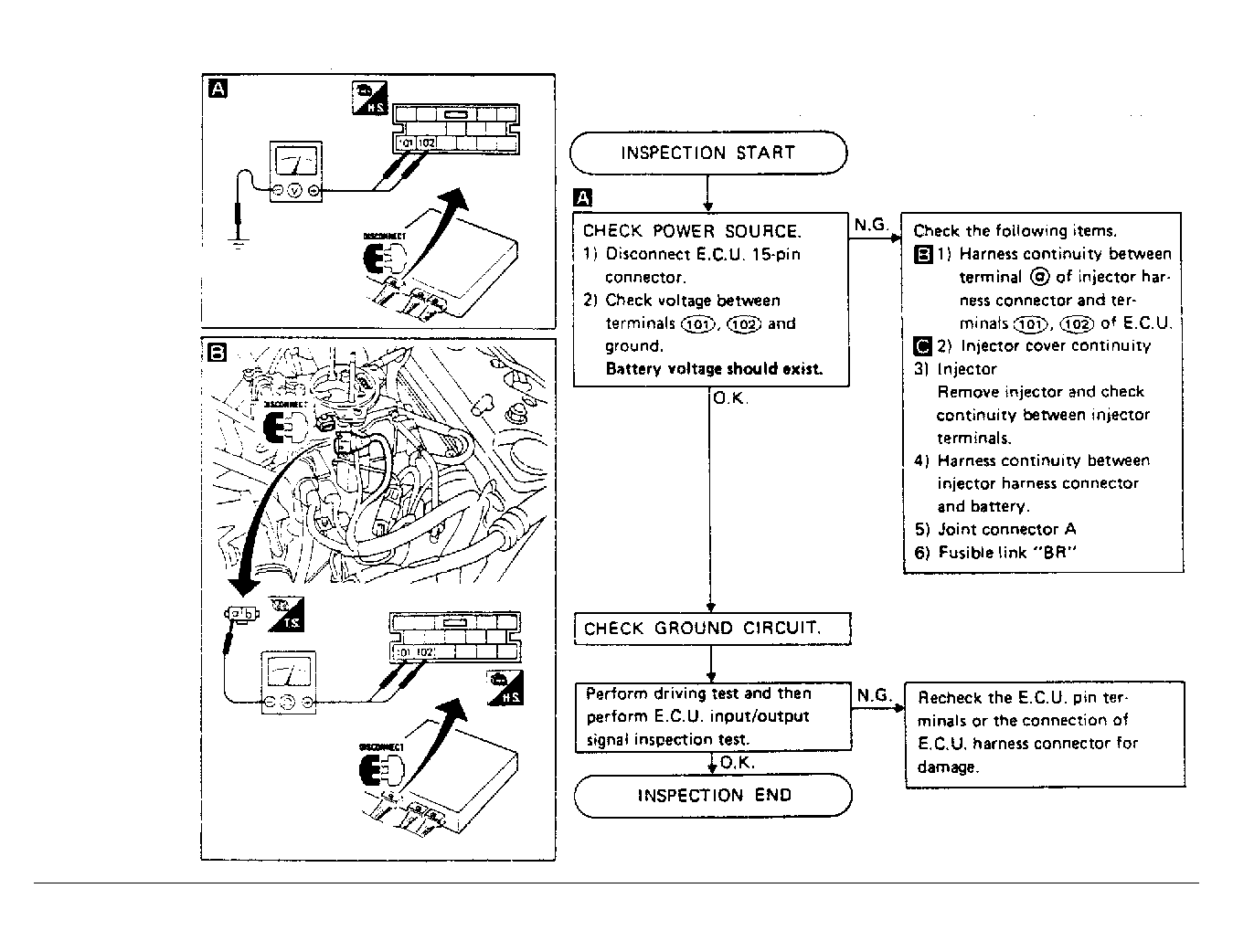

Fig 18: Injector Malfunction (Non Self-Diagnostic Item) Test Q

G94997

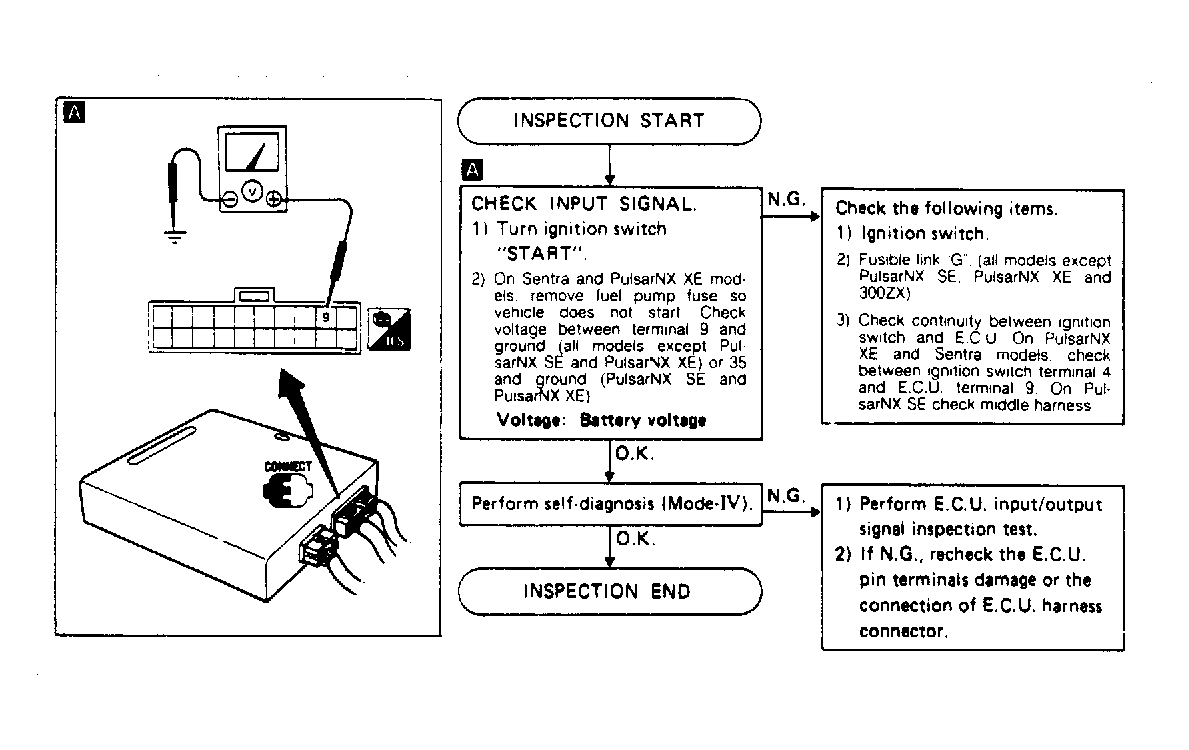

Fig 19: Start Signal (Switch On/Off Diagnosis) Test R

G95000

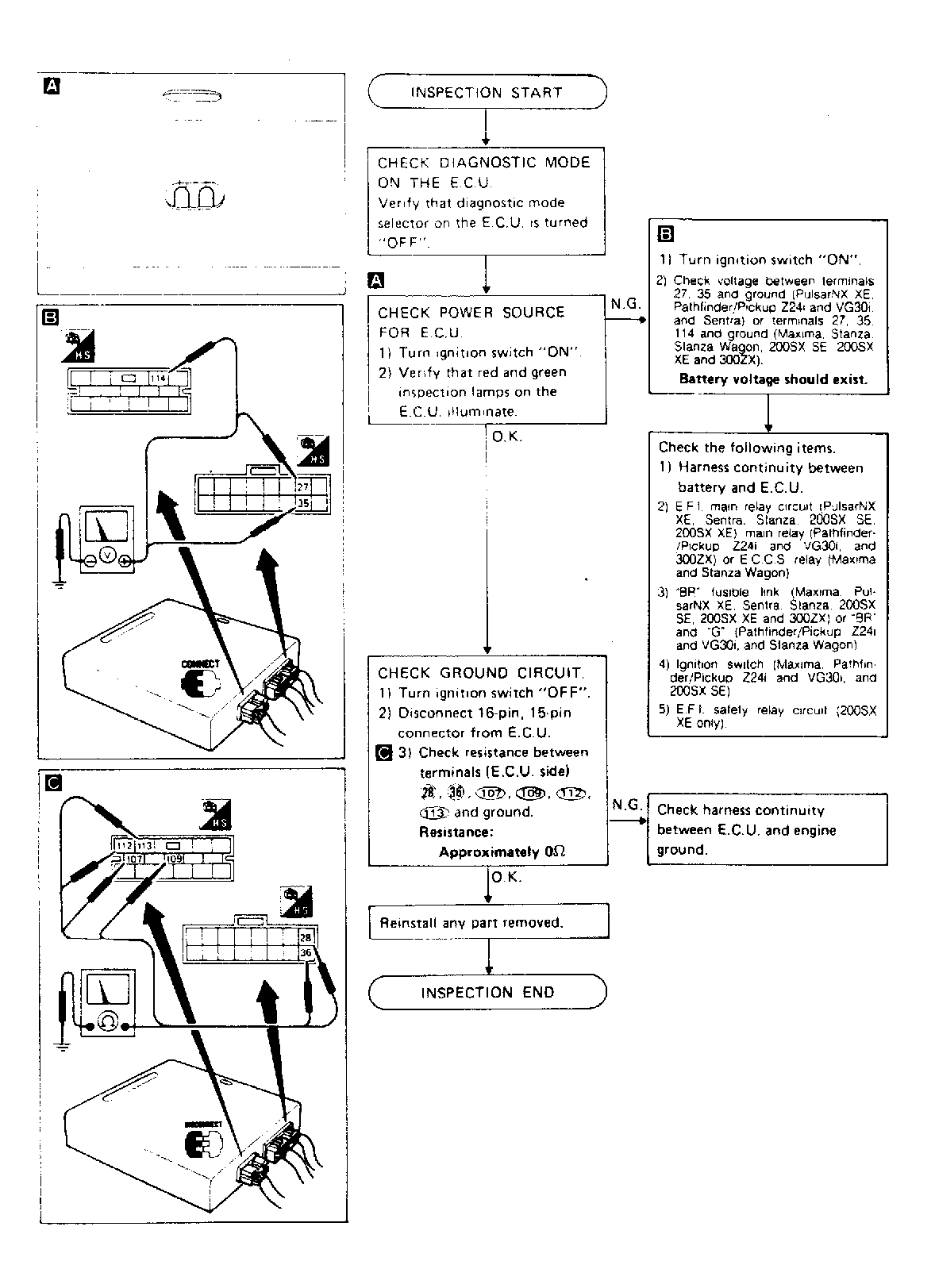

Fig 20: Power Source & Ground Circuit for ECU (Non Self-Diagnostic Item) Test V

G95008

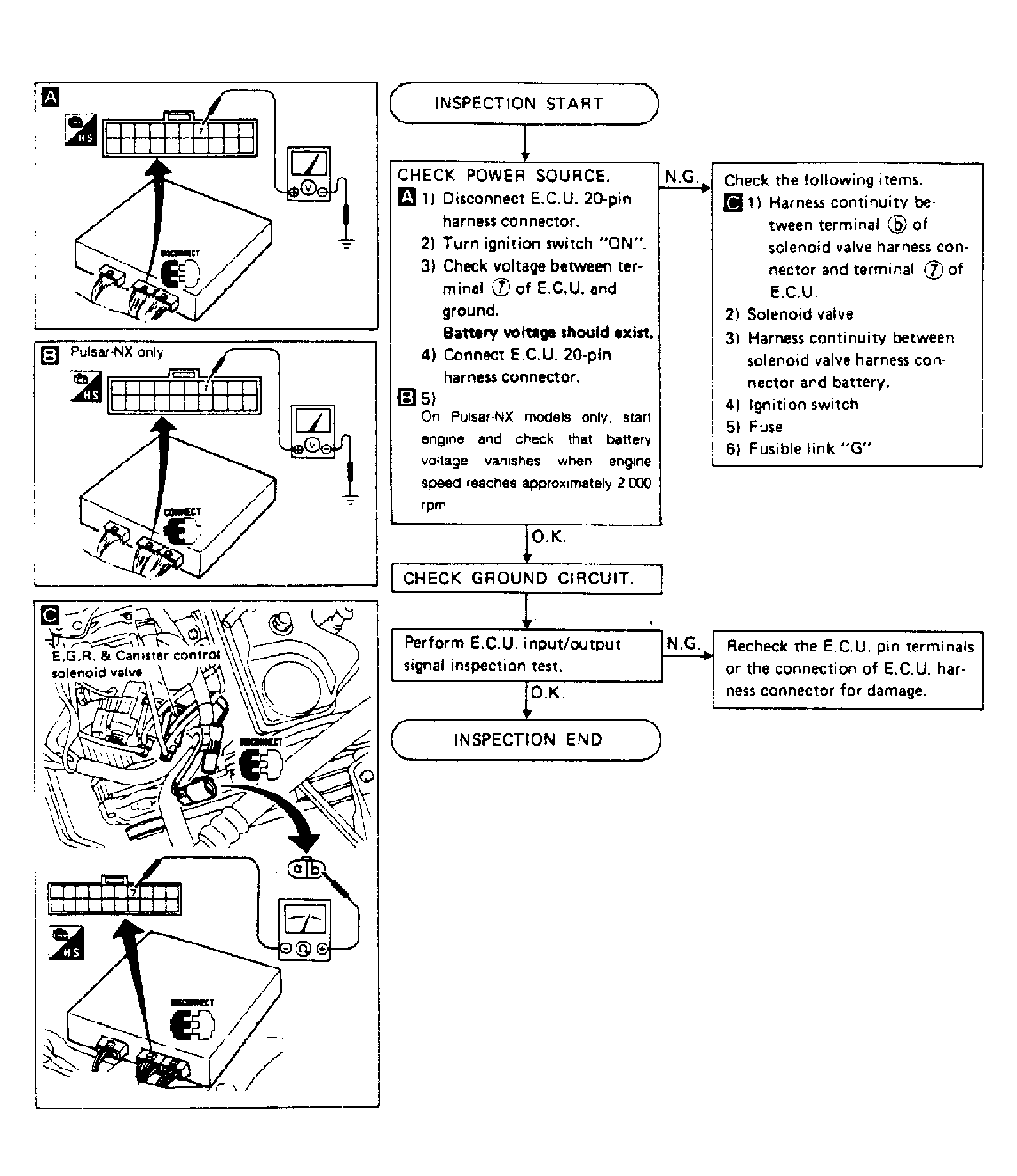

Fig 21: EGR Control & Canister Purge Solenoid Control Valve (Non Self-Diagnostic Item) Test W

G95011

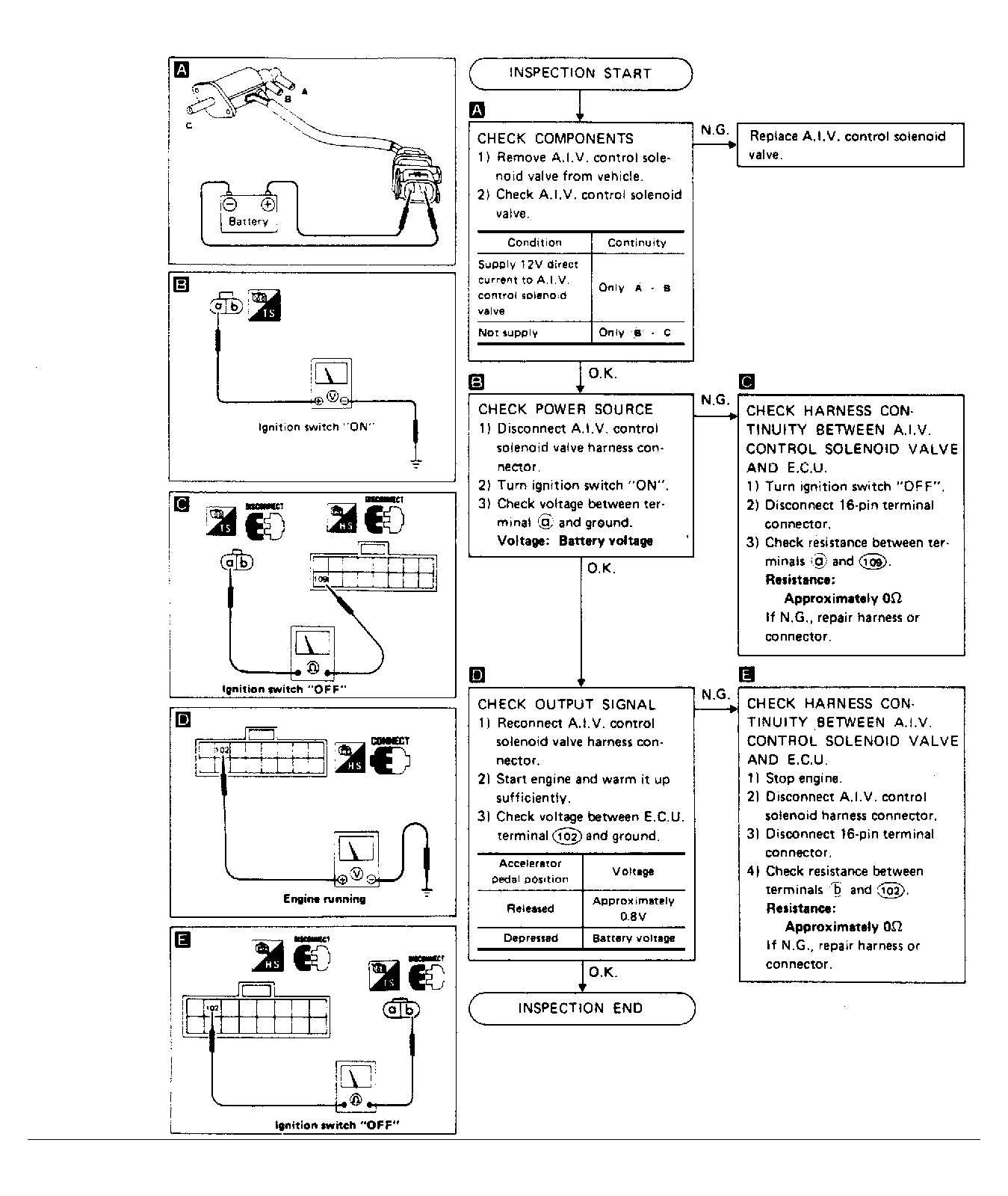

Fig 22: Air Injection Valve (Non Self-Diagnostic Item) Test Y

G95017

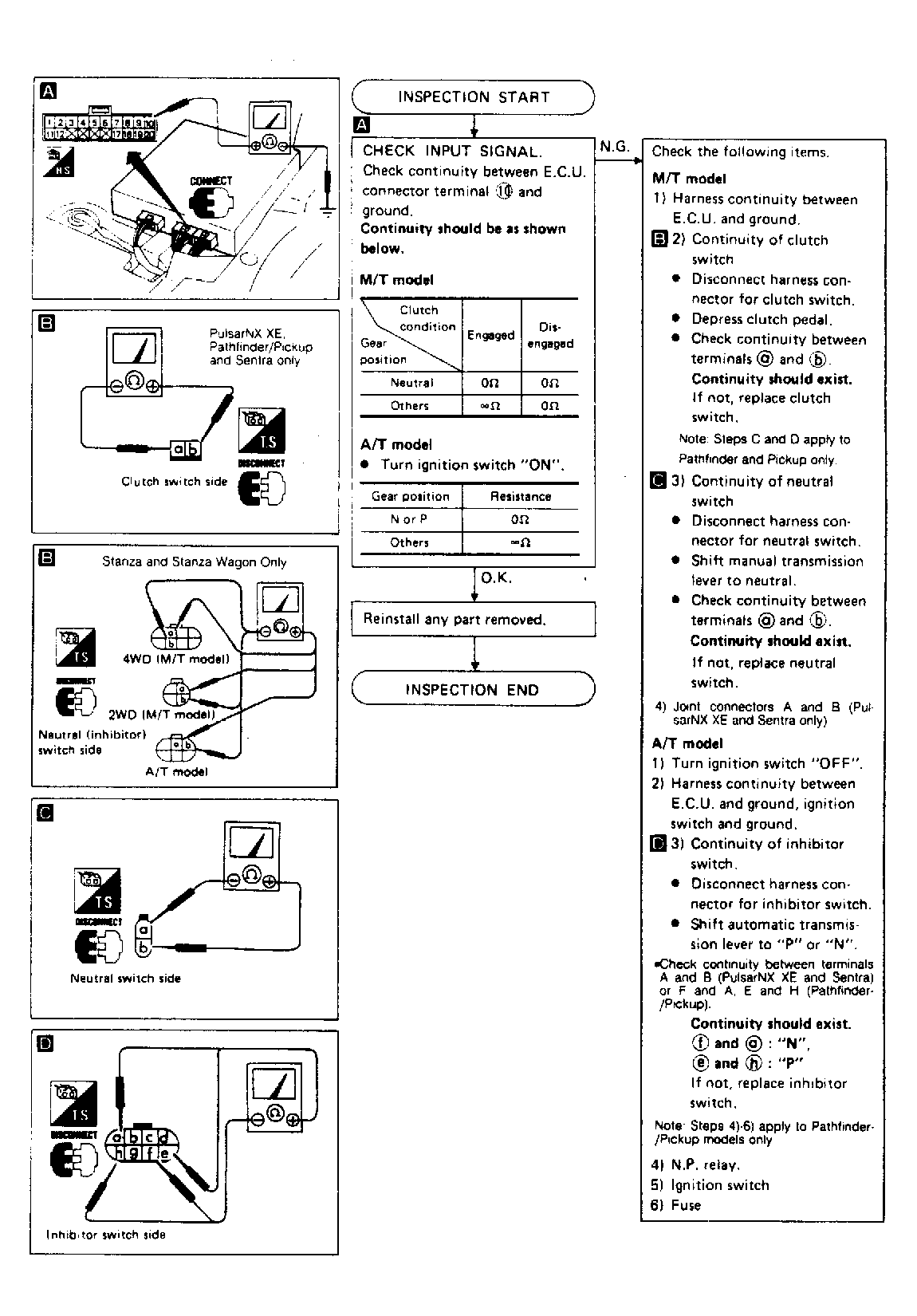

Fig 23: Clutch/Neutral/Inhibitor Switches Test Z

G95020

Fig 24: Fuel Pump Relay (Non Self-Diagnostic Item) Test DD

G95028

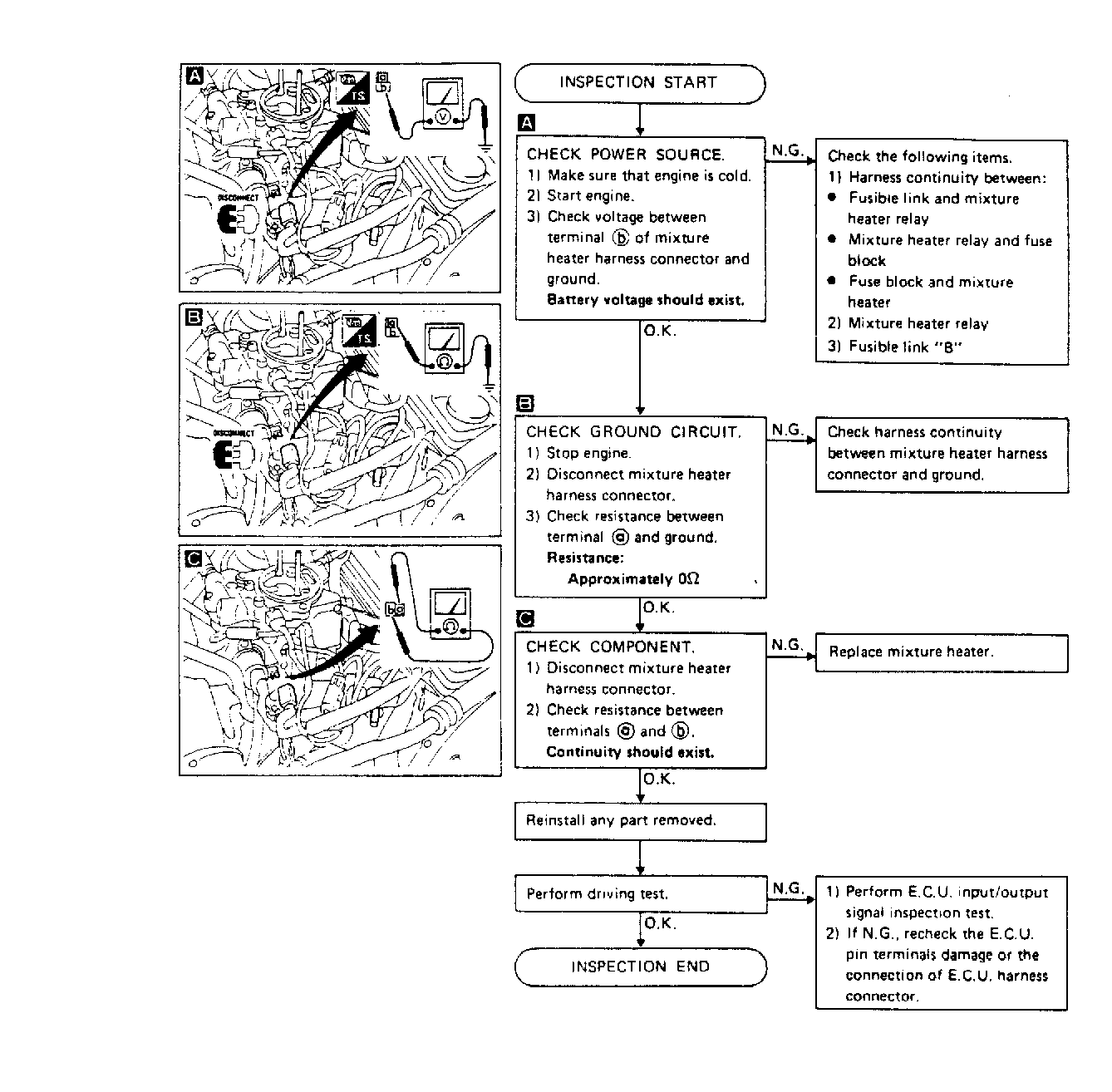

Fig 25: Mixture Heater (Non Self-Diagnostic Item) Test HH

G95033

Fig 26: Air Conditioning Switch & Power Steering Oil Pressure Switch (Non Self-Diagnostic Item) Test GG

G95033

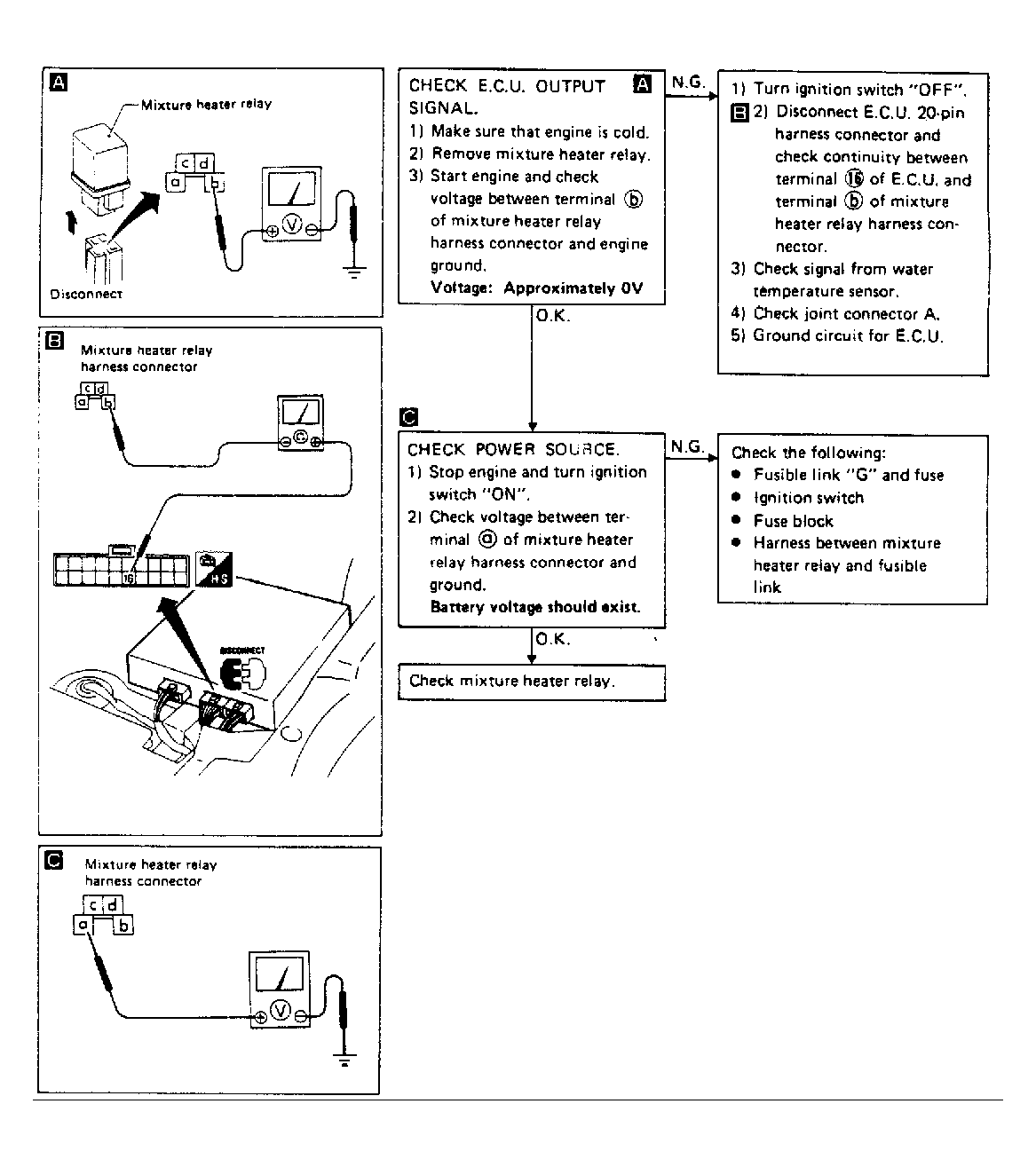

Fig 27: Mixture Heater Relay (Non Self-Diagnostic Item) Test II

G95035
