Check Charts

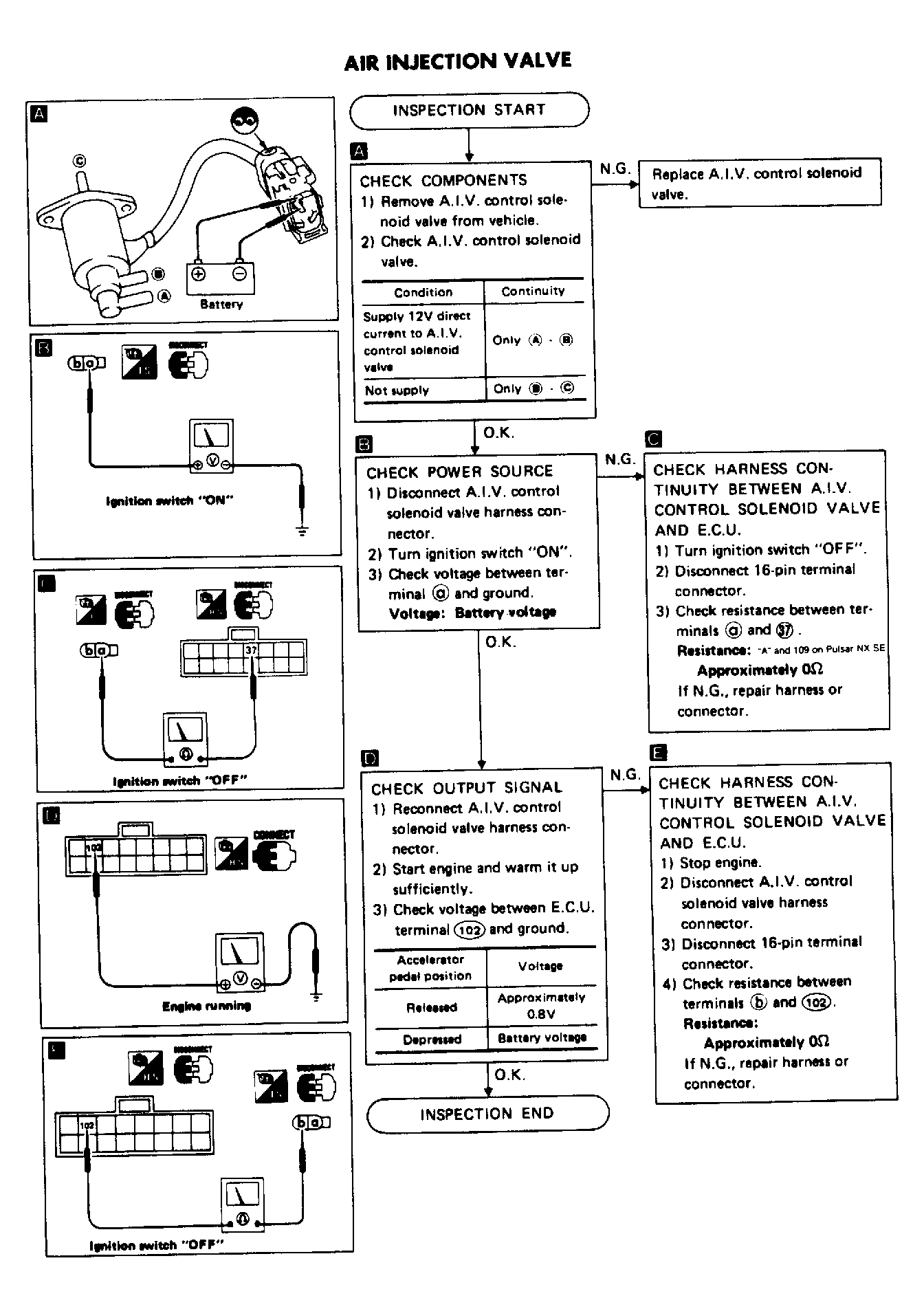

Fig 1: Sentra Air Injection Valve Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

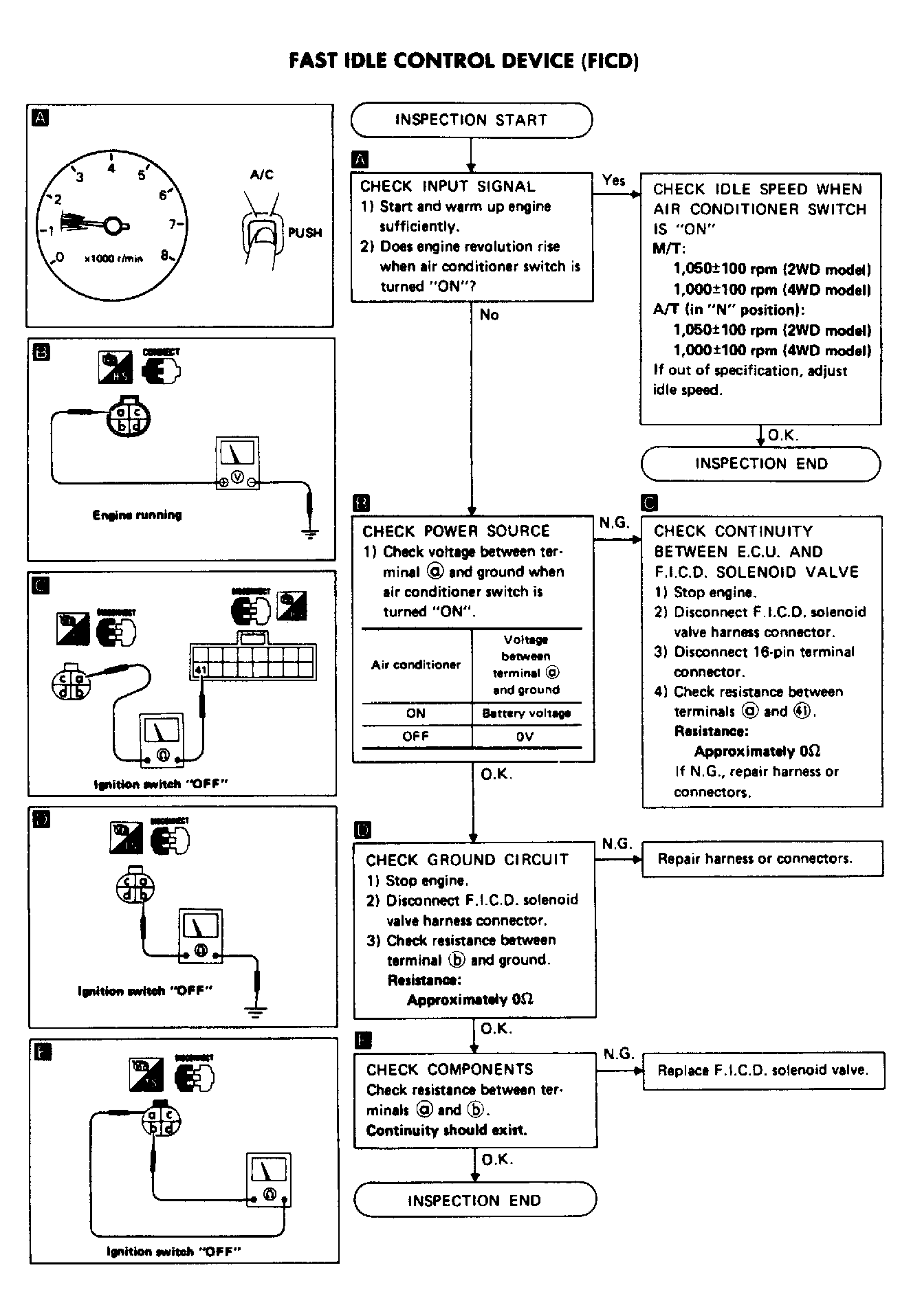

Fig 2: Sentra FIDC Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

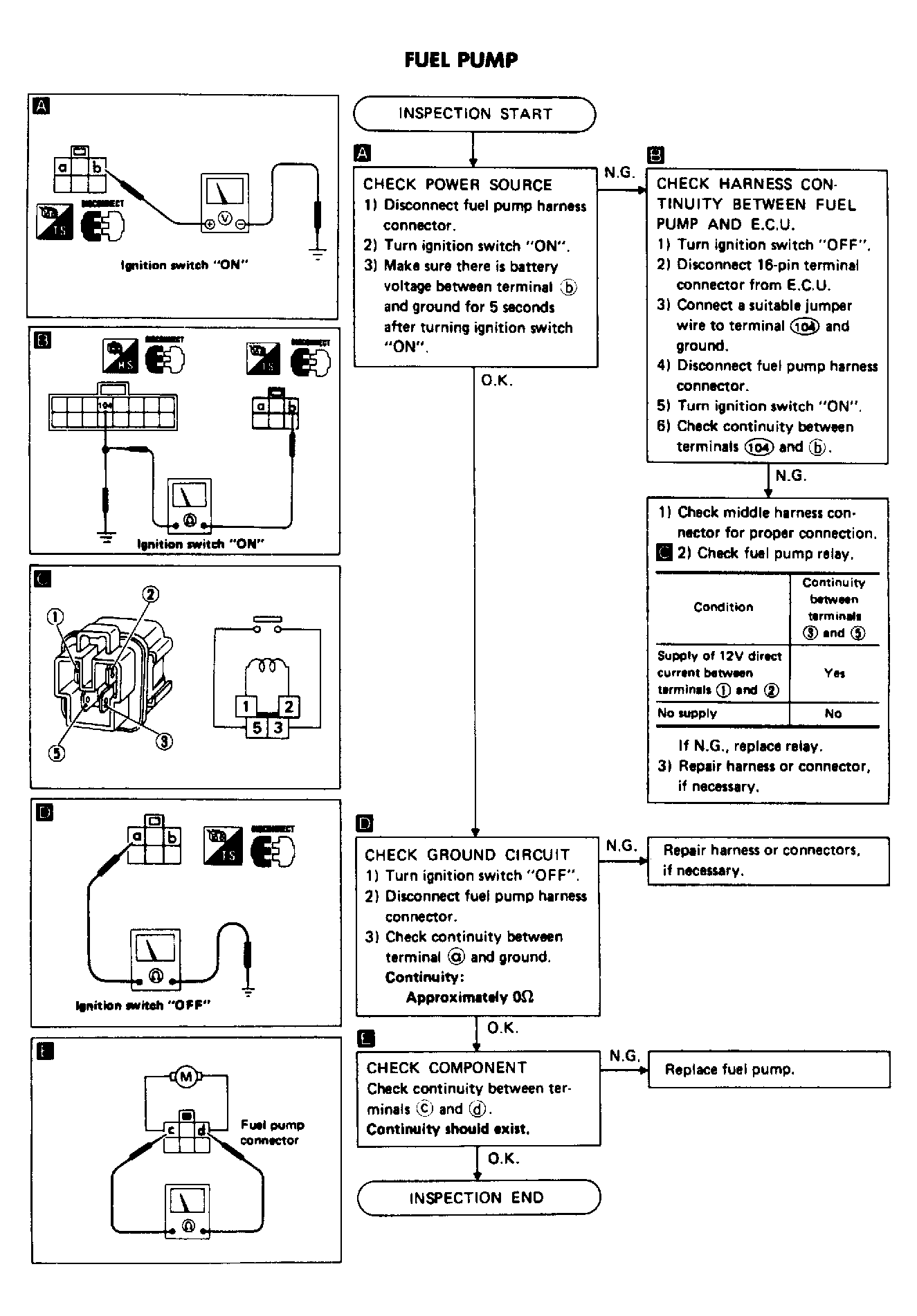

Fig 3: Sentra Fuel Pump Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

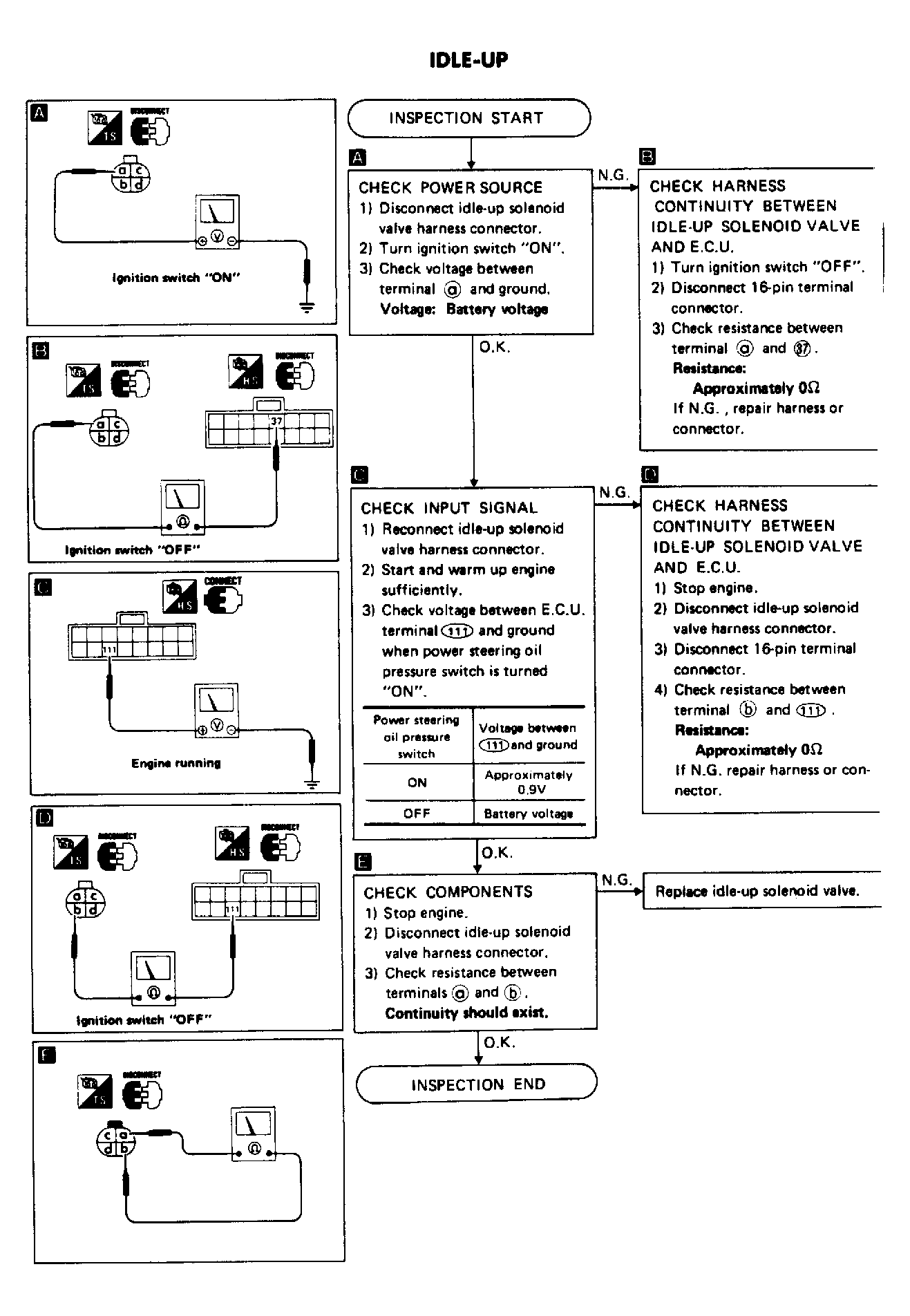

Fig 4: Sentra Idle-Up Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

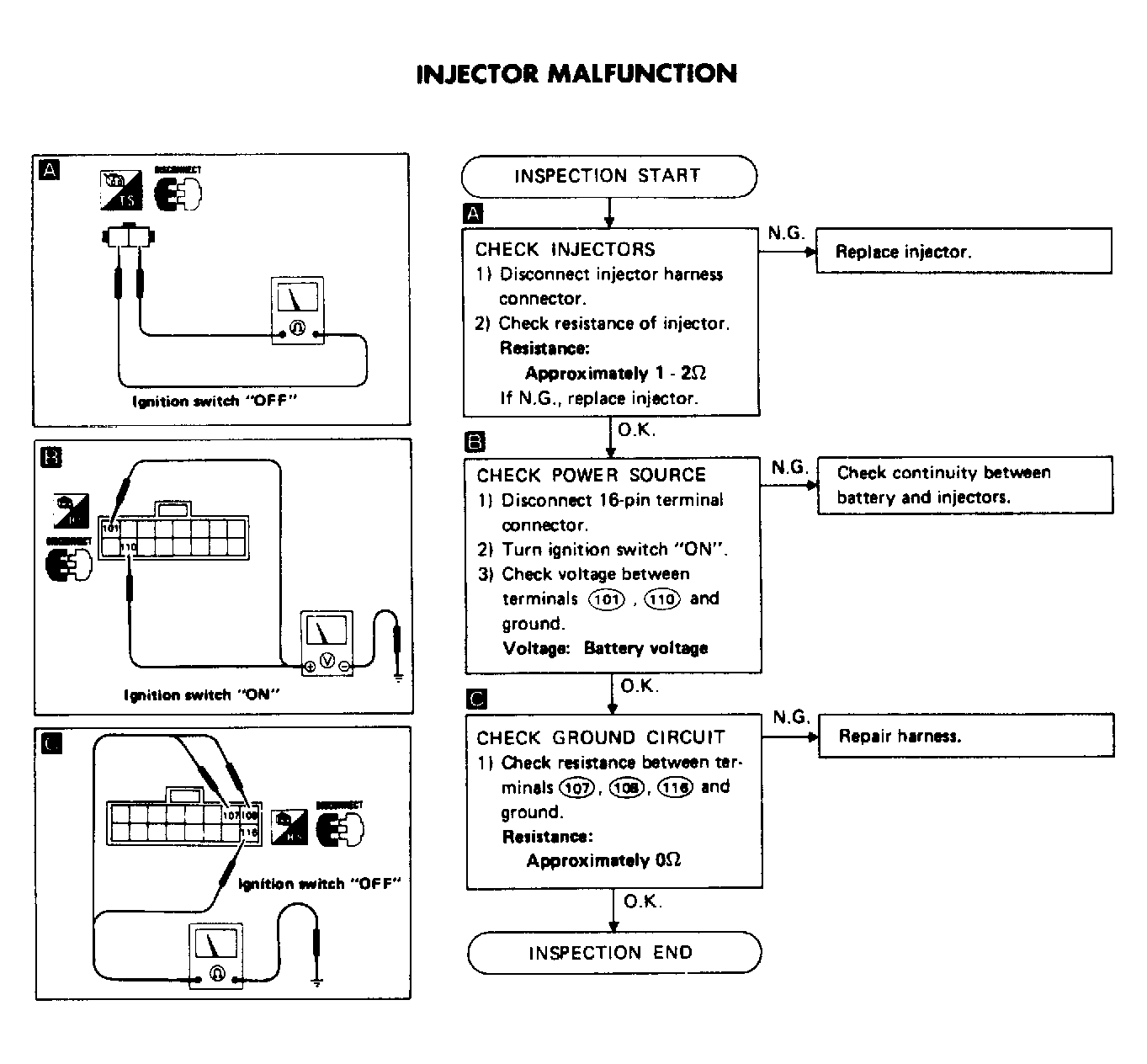

Fig 5: Sentra Injector Malfunction Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

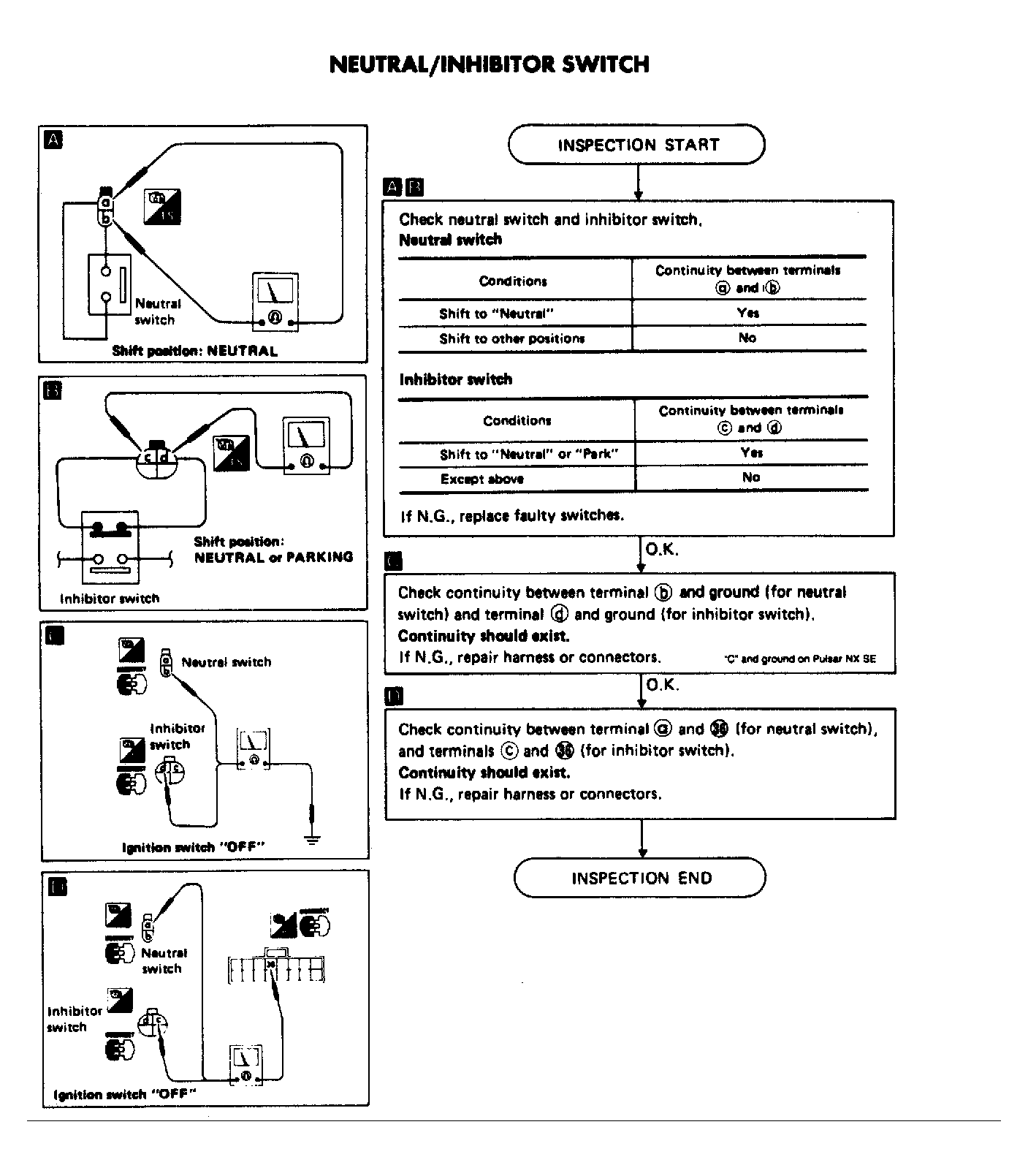

Fig 6: Sentra Neutral/Inhibitor Switch Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

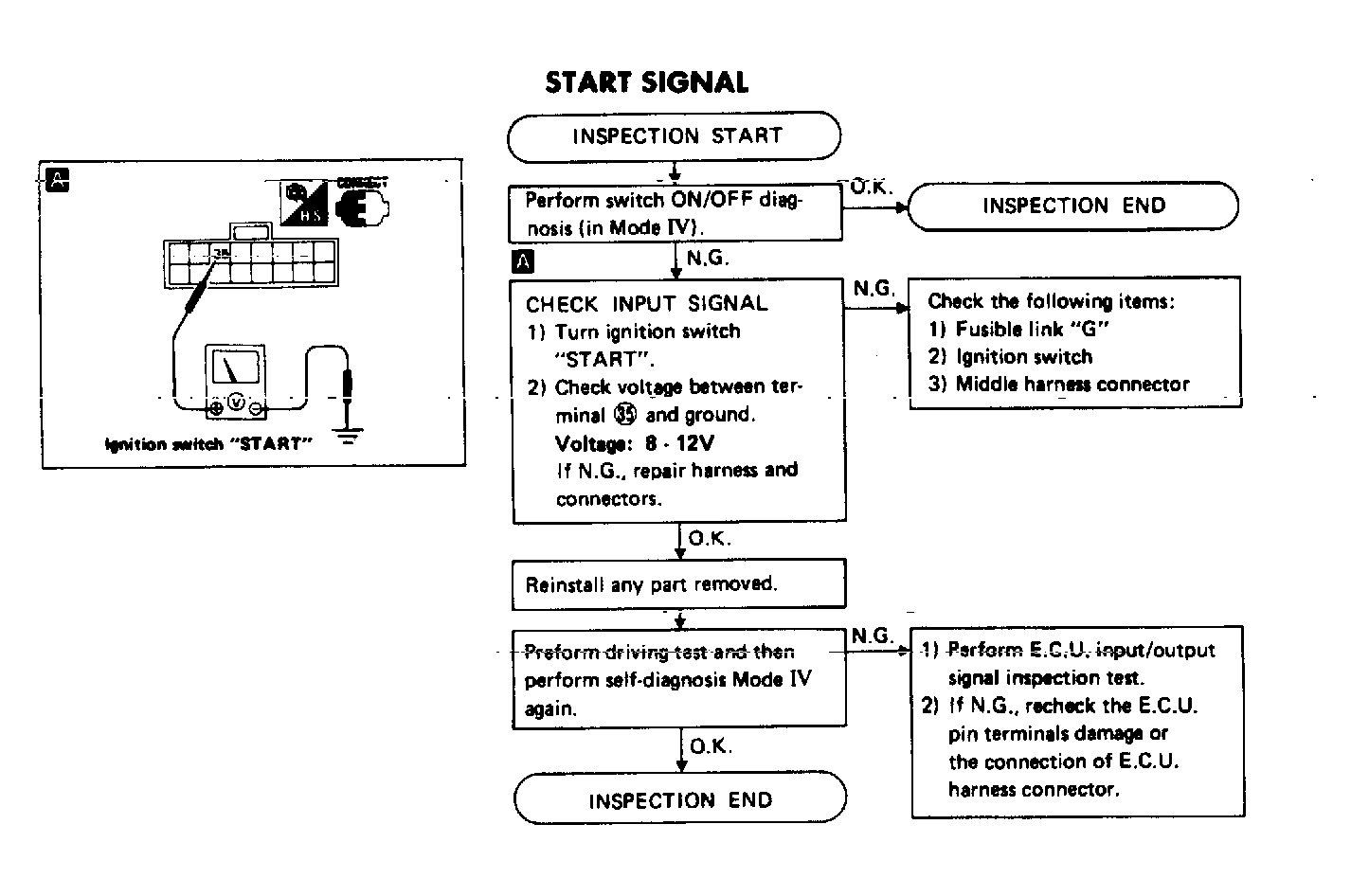

Fig 7: Sentra Start Signal Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
