Start Signal

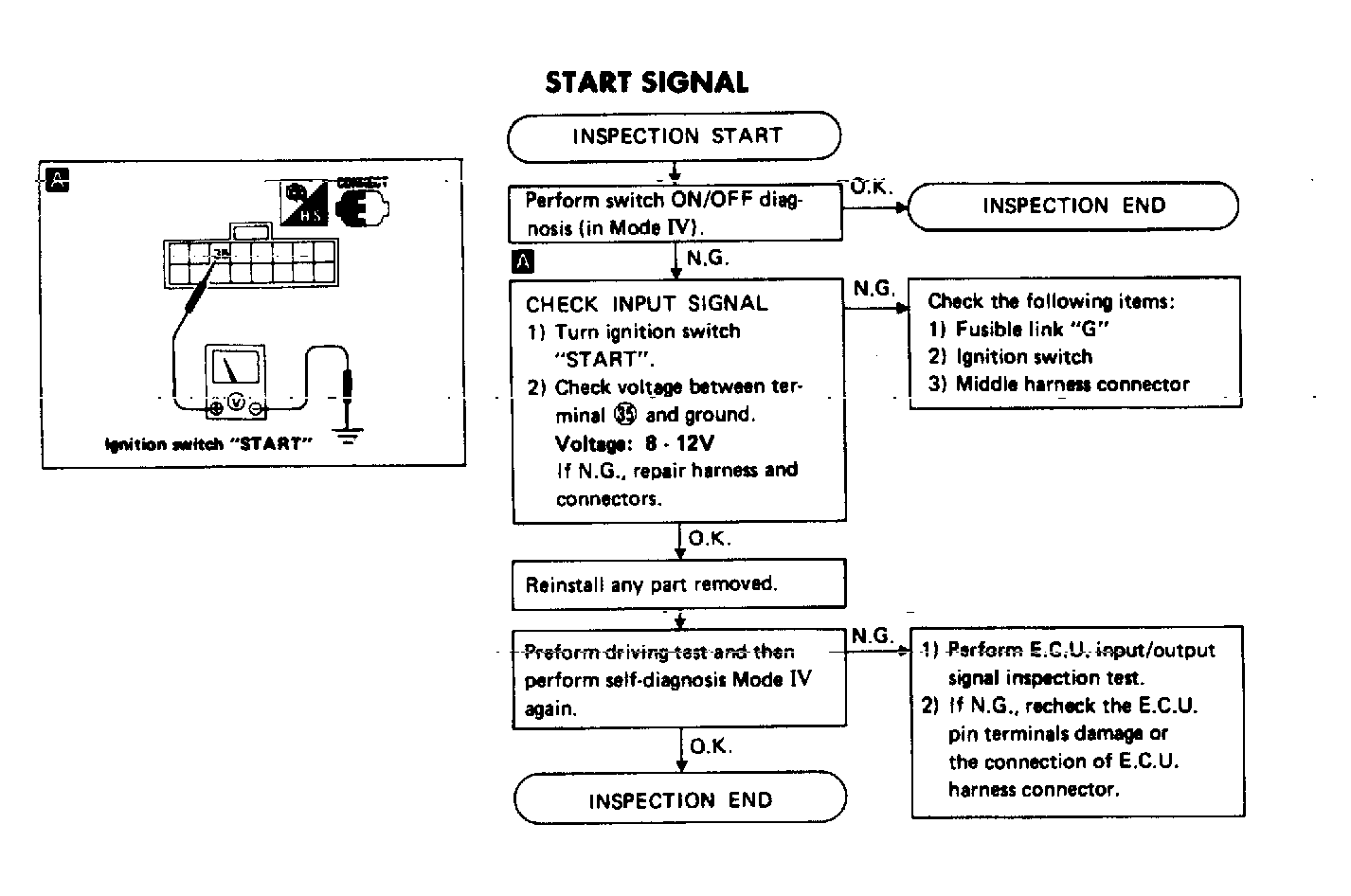

Start signal is used for ECU control of fuel pump and pressure regulator control solenoid. See Figure .
