Start Signal Chart

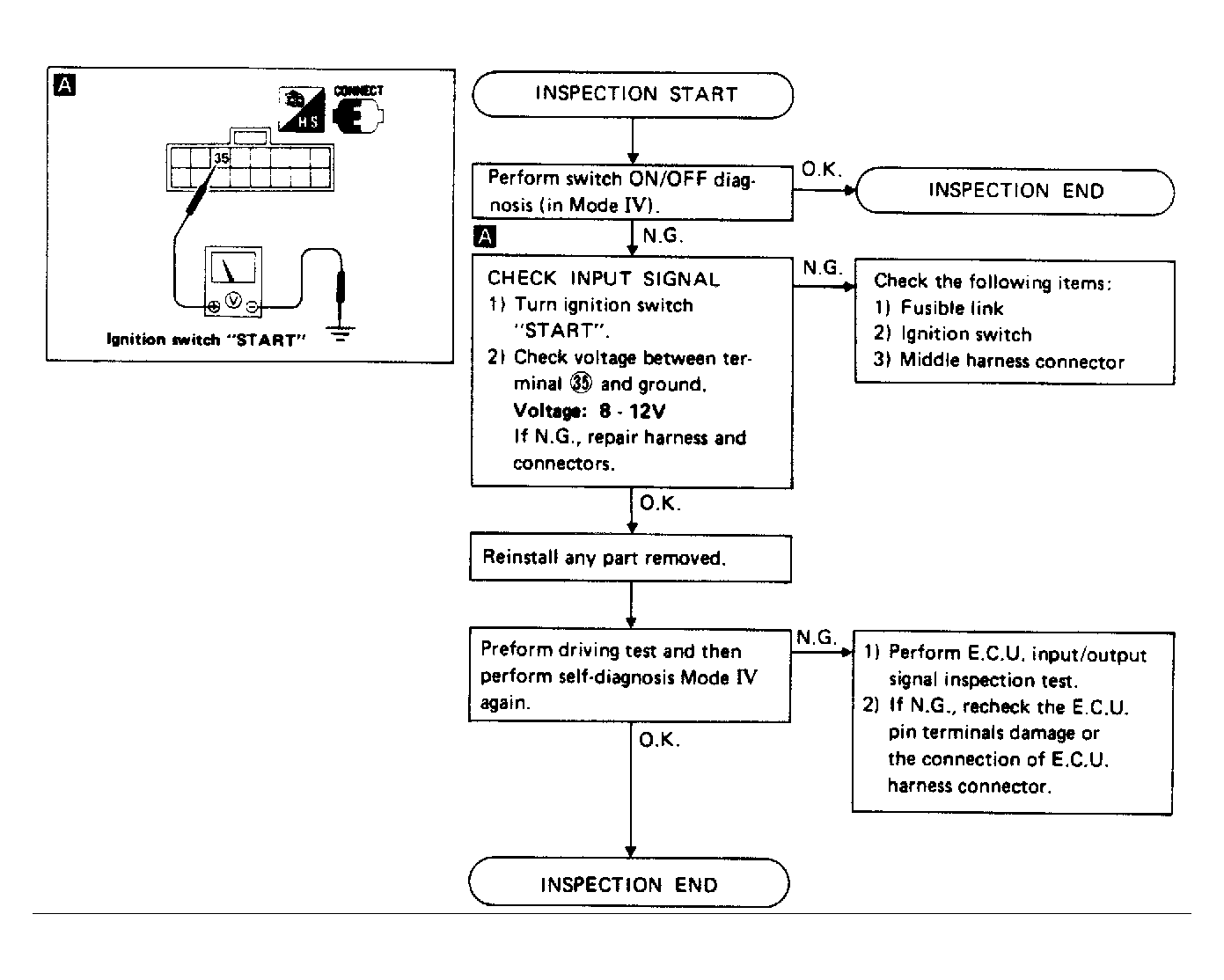

Fig 1: Start Signal Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
