Code 23: Idle Switch

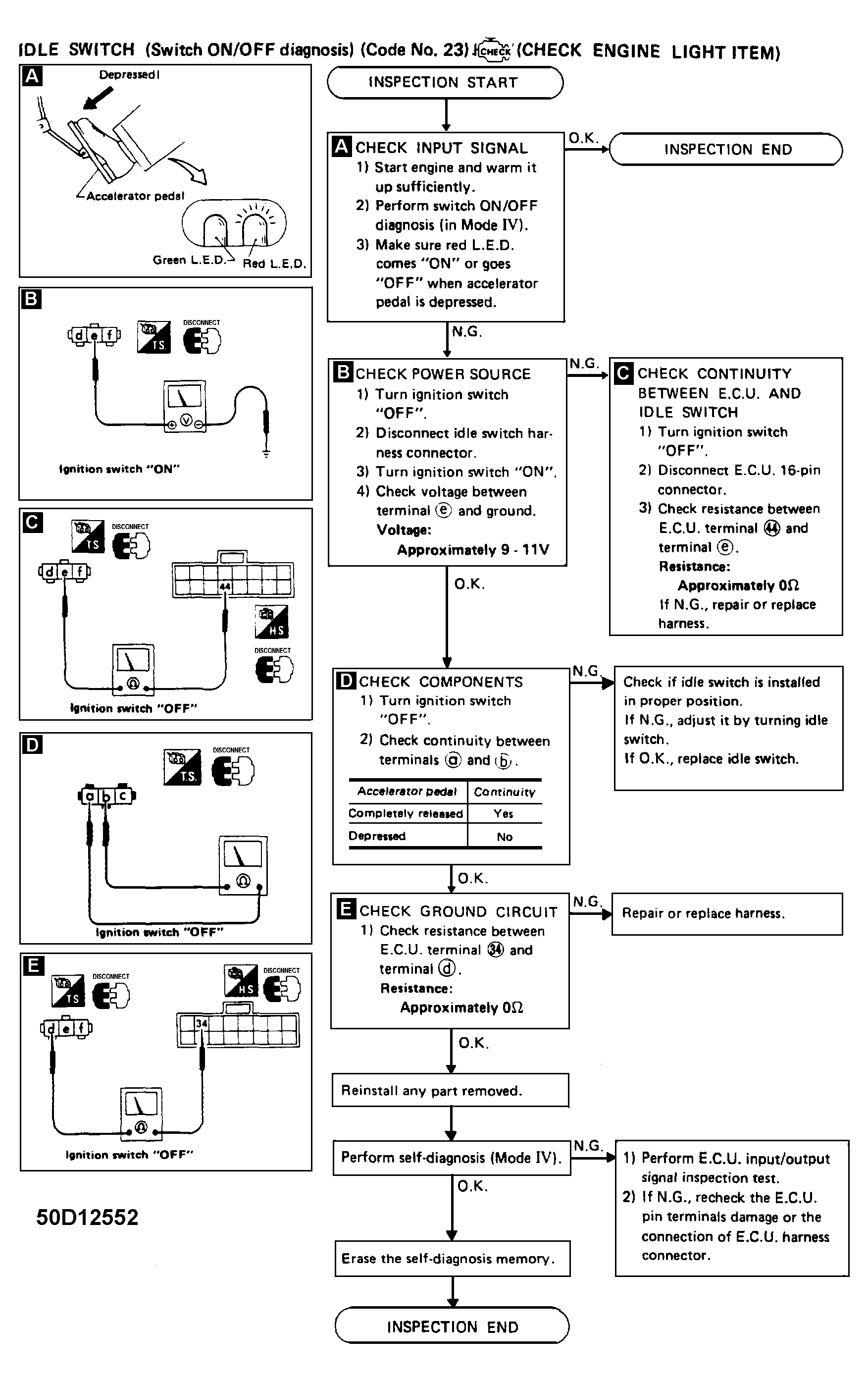

Fig 1: Code 23: Idle Switch Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
