Code 25: Idle Speed Control

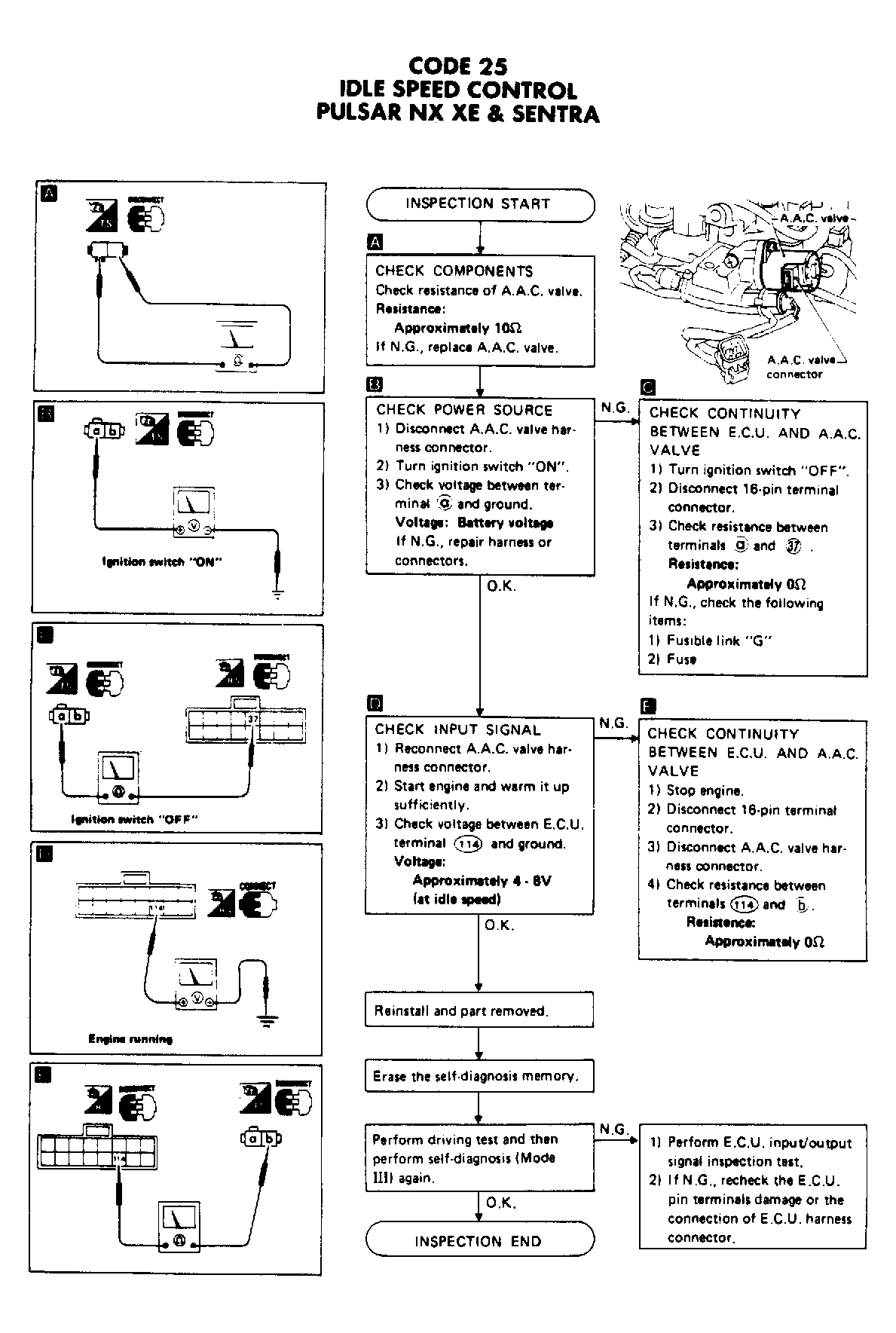

Fig 1: Code 25: Idle Speed Control Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
