Air Injection Valve Chart

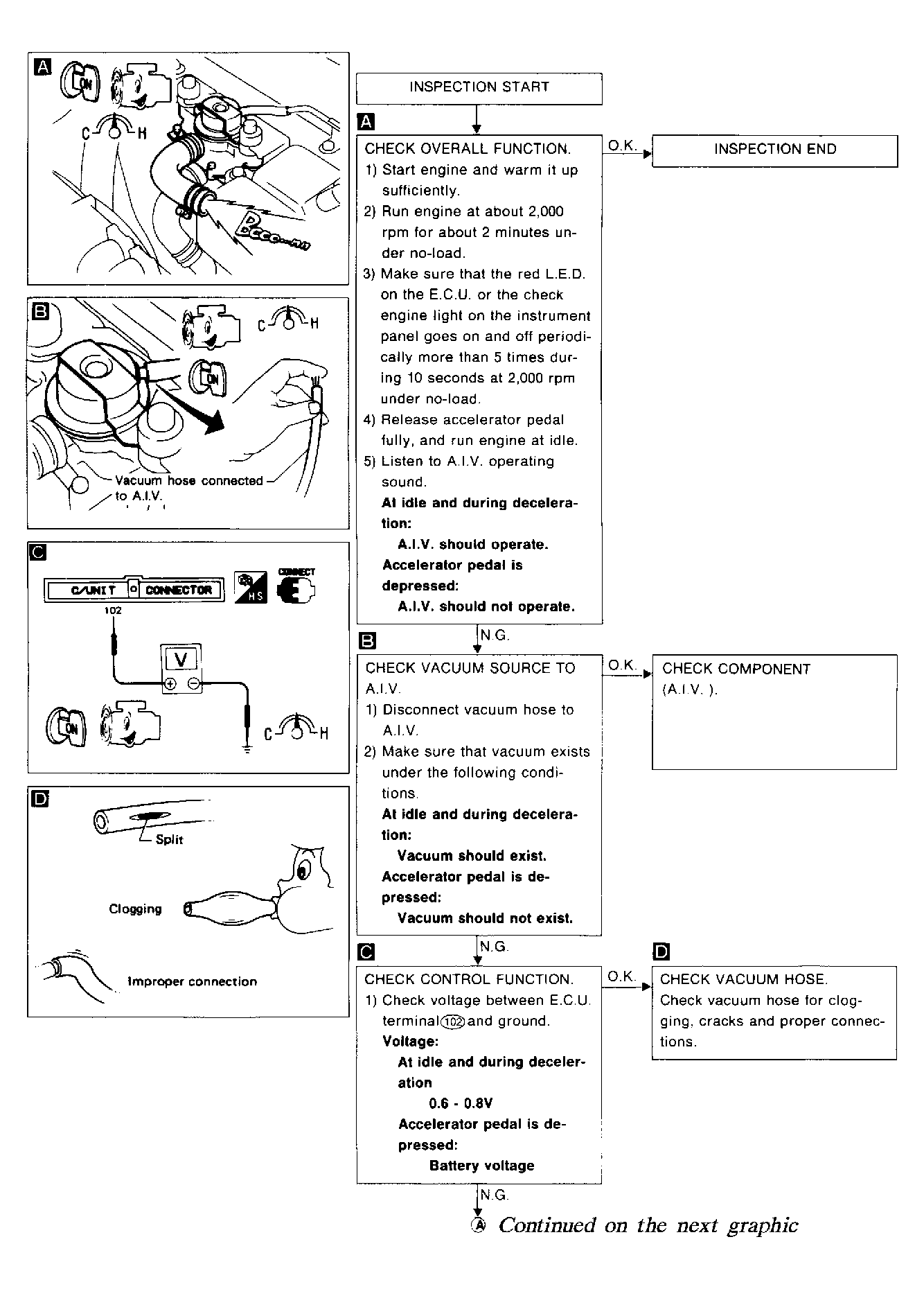

Fig 1: Air Injection Valve Diagnostic Chart (2.0L) (1 of 2)
G91D17189Courtesy of NISSAN MOTOR CO., U.S.A.

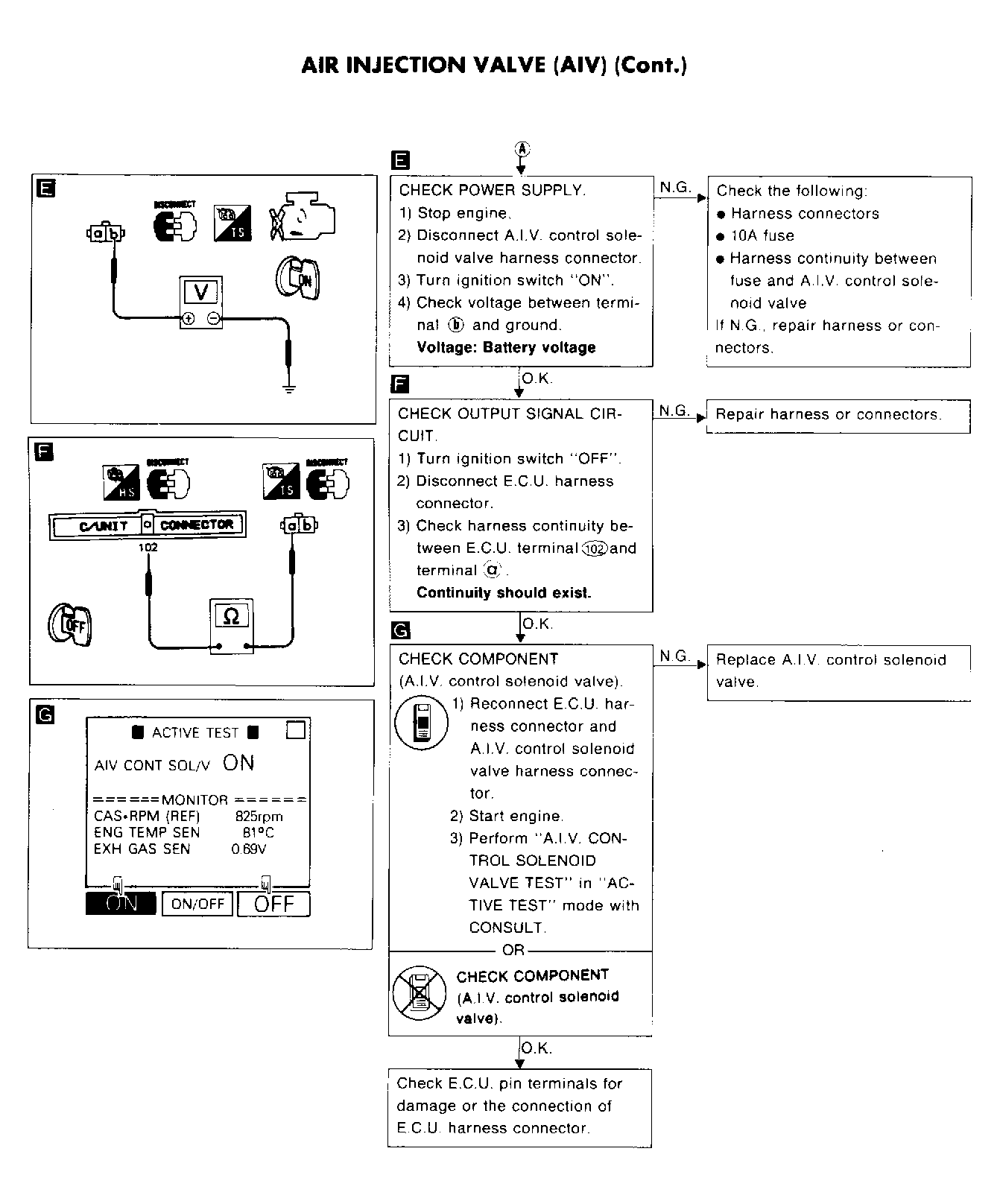

Fig 2: Air Injection Valve Diagnostic Chart (2.0L) (2 of 2)
G91G17190Courtesy of NISSAN MOTOR CO., U.S.A.
