Ignition Coil

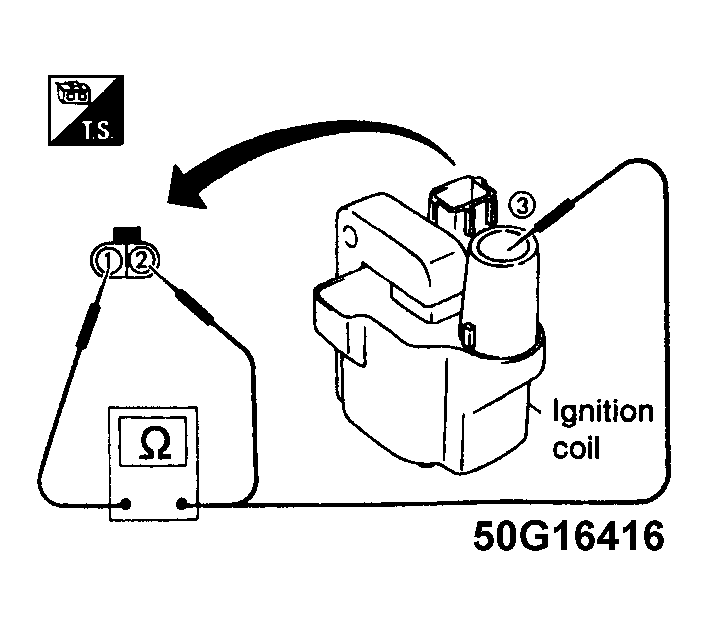

Disconnect ignition coil harness connector. Check resistance in IGNITION COIL RESISTANCE table below. For ignition coil terminal identifcation, see Fig 1 below.
IGNITION COIL RESISTANCE
| Check Between Terminals | Resistance |
|---|---|
| 1 - 2 | Approx. 0.9 Ohms |
| 1 - 3 | Approx. 13.0 kOhms |
