Code 12: Mass Airflow Sensor
Fig 1: Code 12: Mass Airflow Sensor Test (1.6L)
Courtesy of NISSAN MOTOR CO., U.S.A.

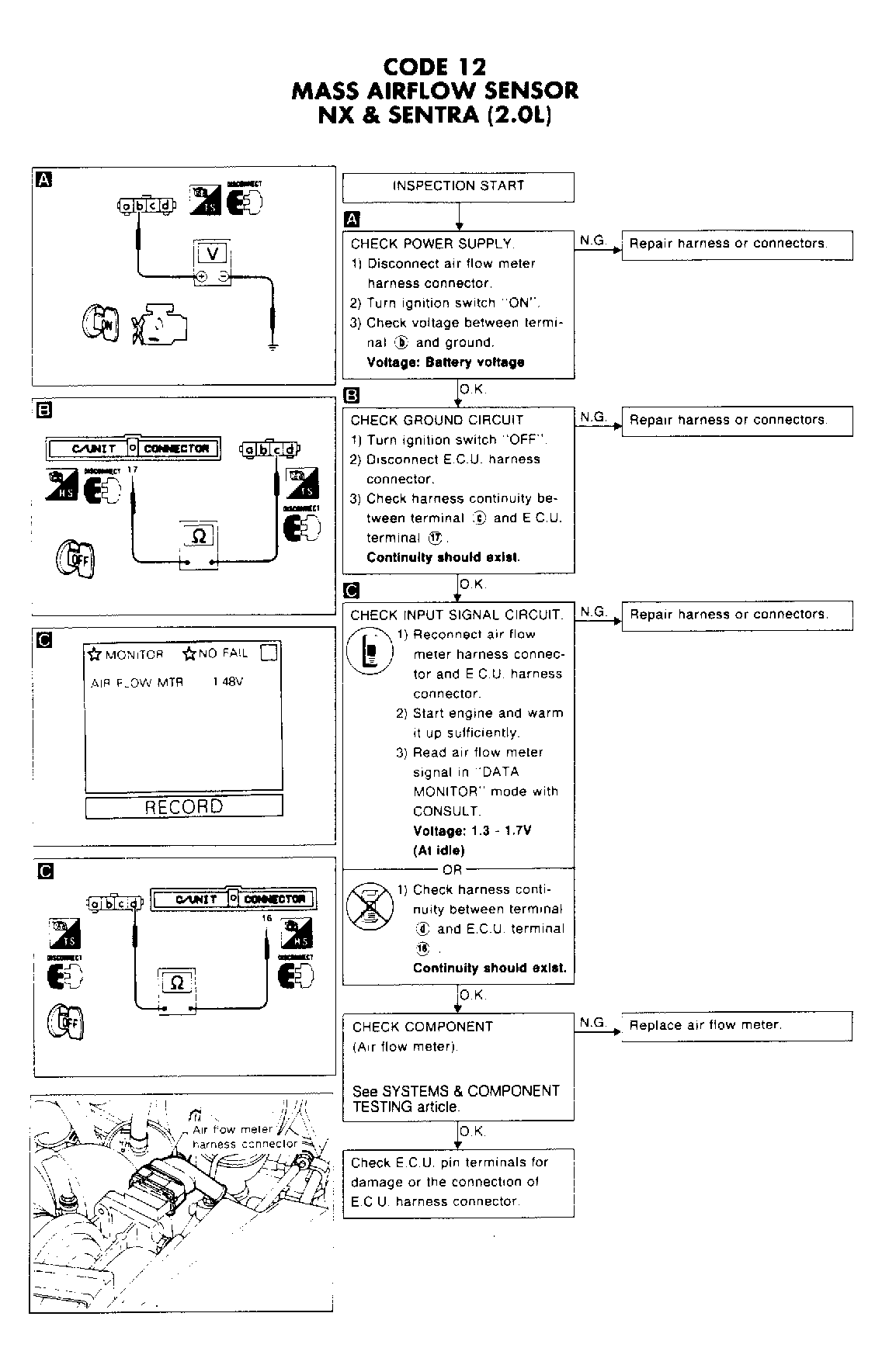

Fig 2: Code 12: Mass Airflow Sensor Test (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
