Code 32: EGR Sensor (CALIF.)

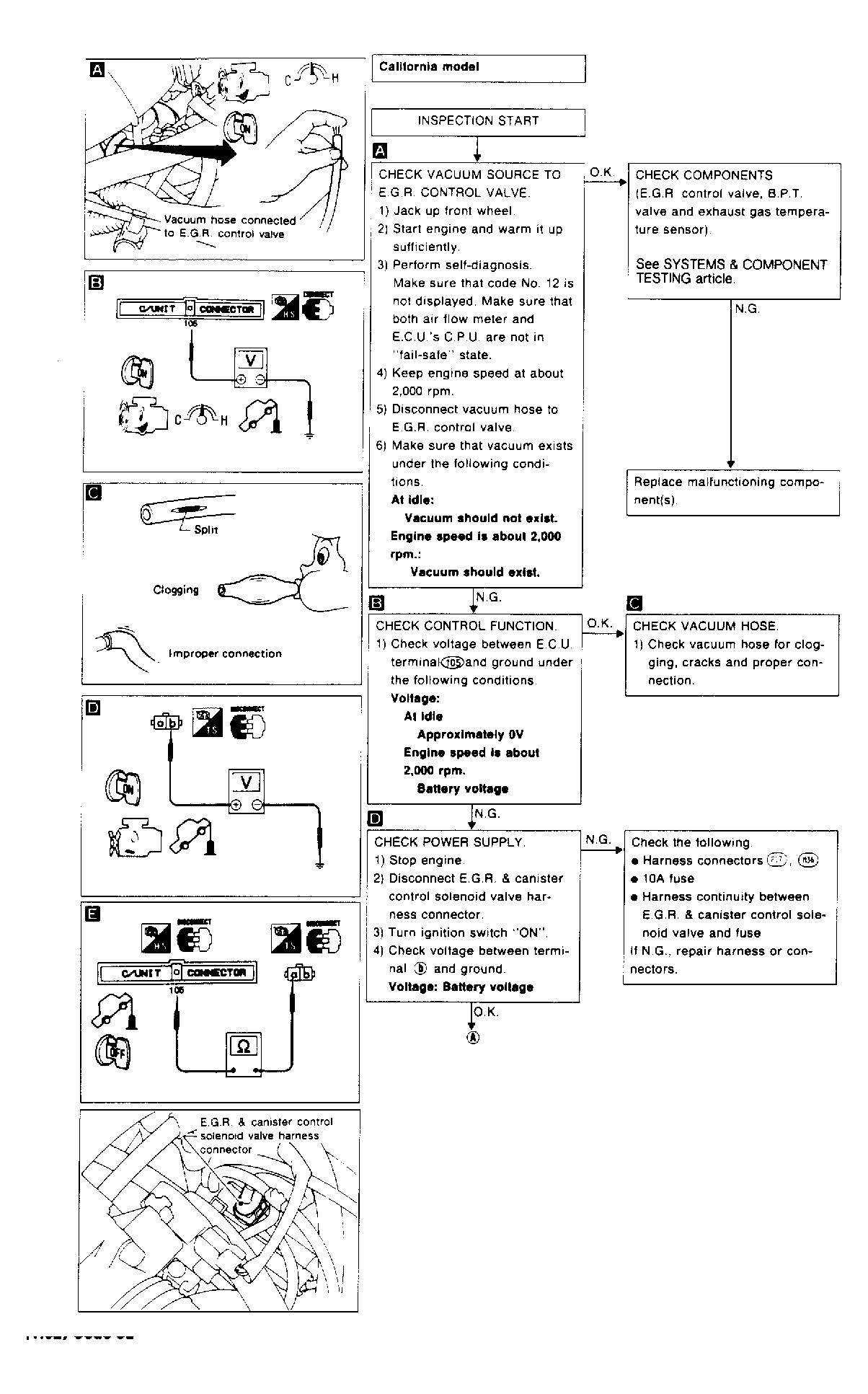

Fig 1: Code 32: EGR Sensor Test (1.6L Calif) (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 32: EGR Sensor Test (1.6L Calif) (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Code 32: EGR Sensor Test (2.0L Calif) (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

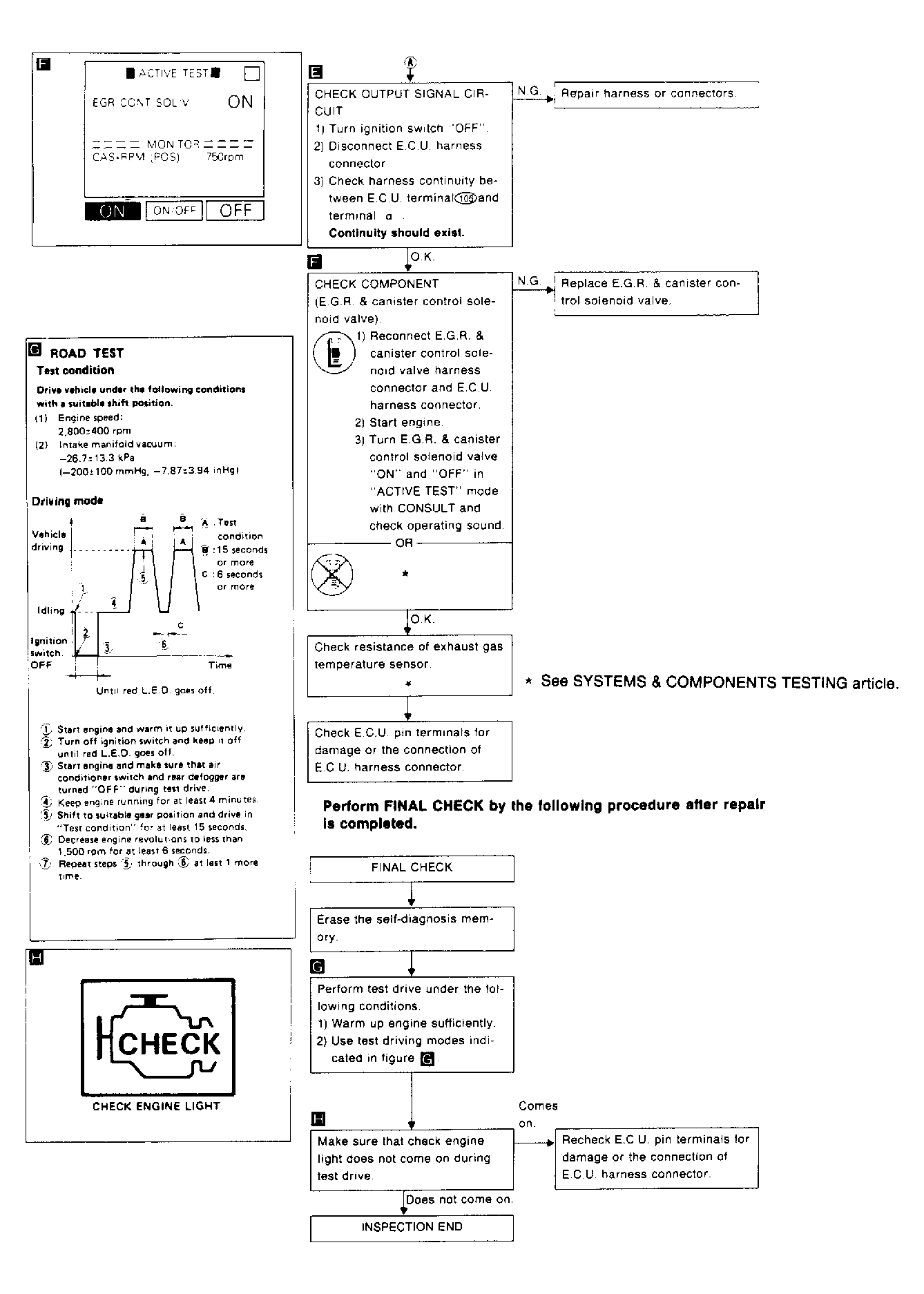

Fig 4: Code 32: EGR Sensor Test (2.0L Calif) (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
