Code 43: Throttle Position Sensor

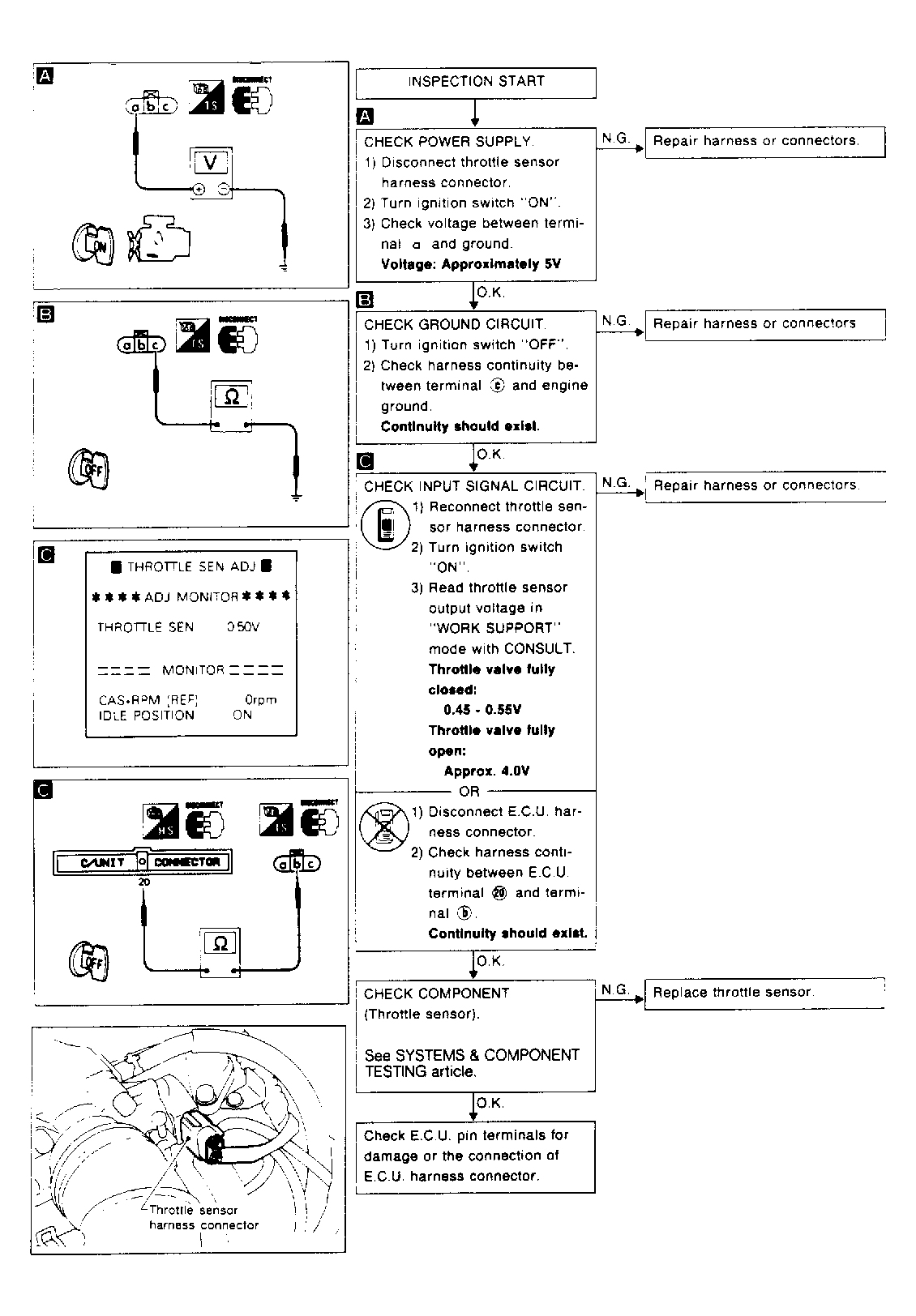

Fig 1: Code 43: Throttle Position Sensor Test (1.6L)

G91H16599

Courtesy of NISSAN MOTOR CO., U.S.A.

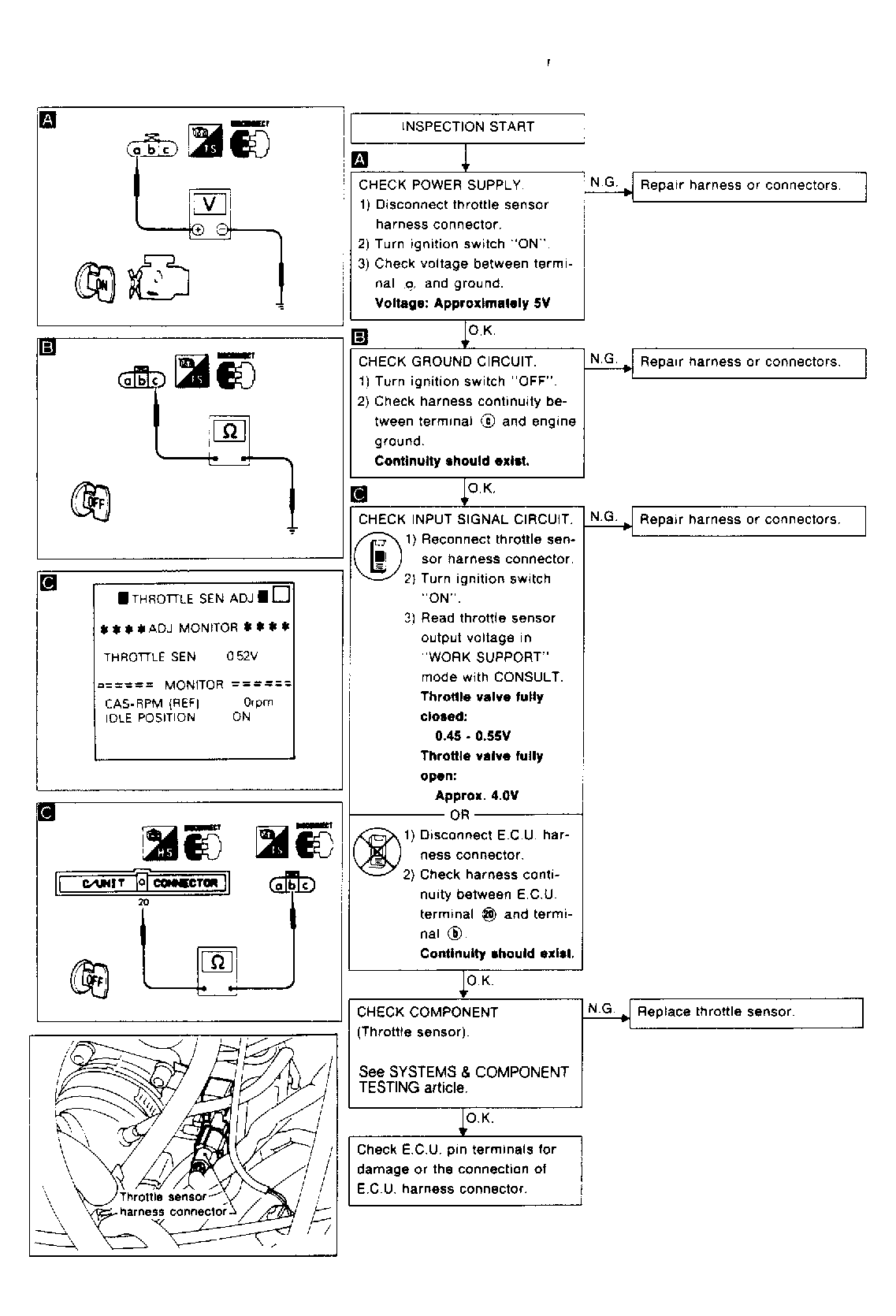

Fig 2: Code 43: Throttle Position Sensor Test (2.0L)

G91A16600

Courtesy of NISSAN MOTOR CO., U.S.A.
