Code 45: Injection Leak

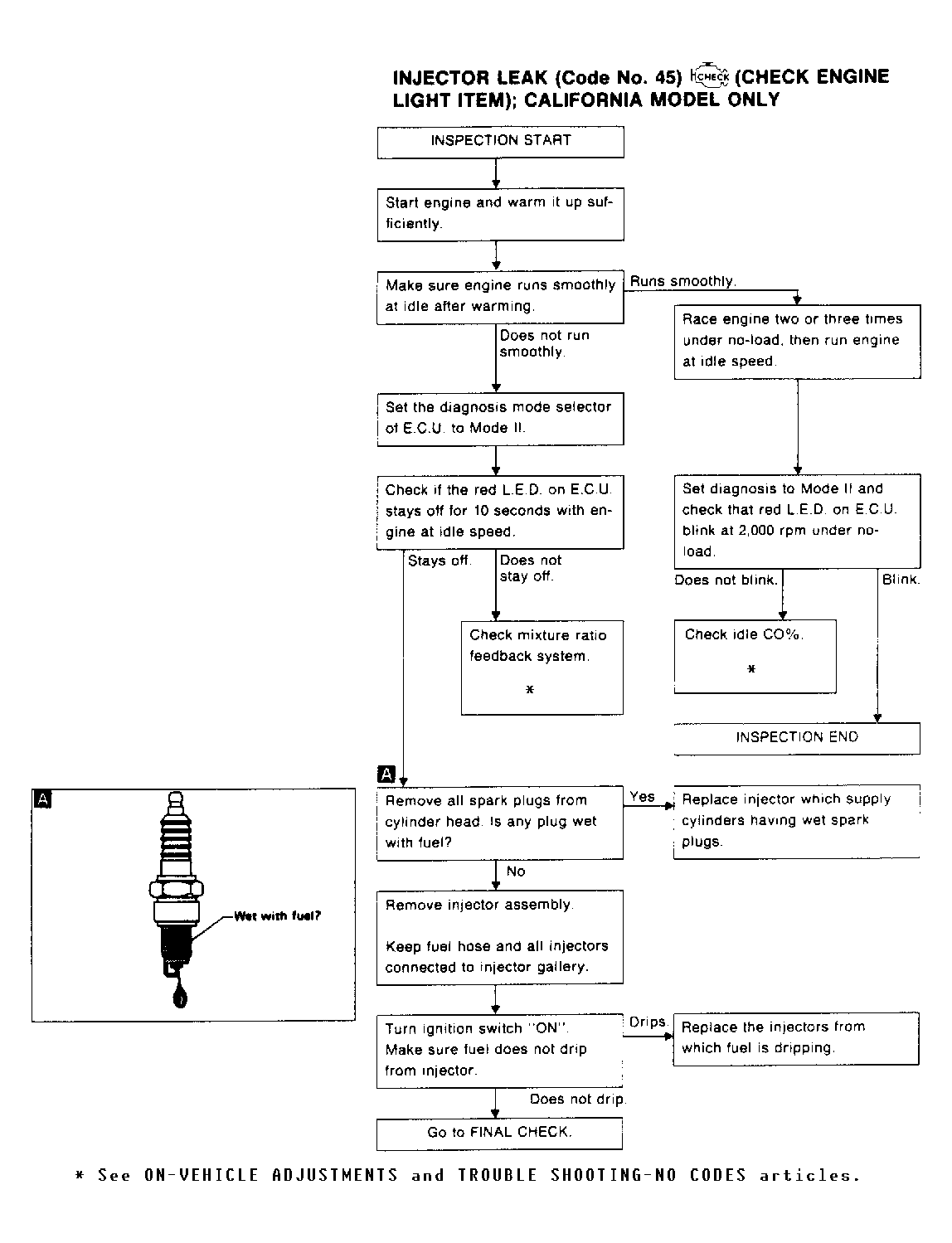

Fig 1: Code 45: Injection Leak Test (1.6L)
G91C16602Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Code 45: Injection Leak Test (2.0L)
G91D16603Courtesy of NISSAN MOTOR CO., U.S.A.
