Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground M5	Behind Left Kick Panel
Body Ground M67	Behind Right Kick Panel
Power Mirror	Lower Front Corner Of Front Door Window
Power Mirror Control Switch	Driver's Side Of Instrument Panel

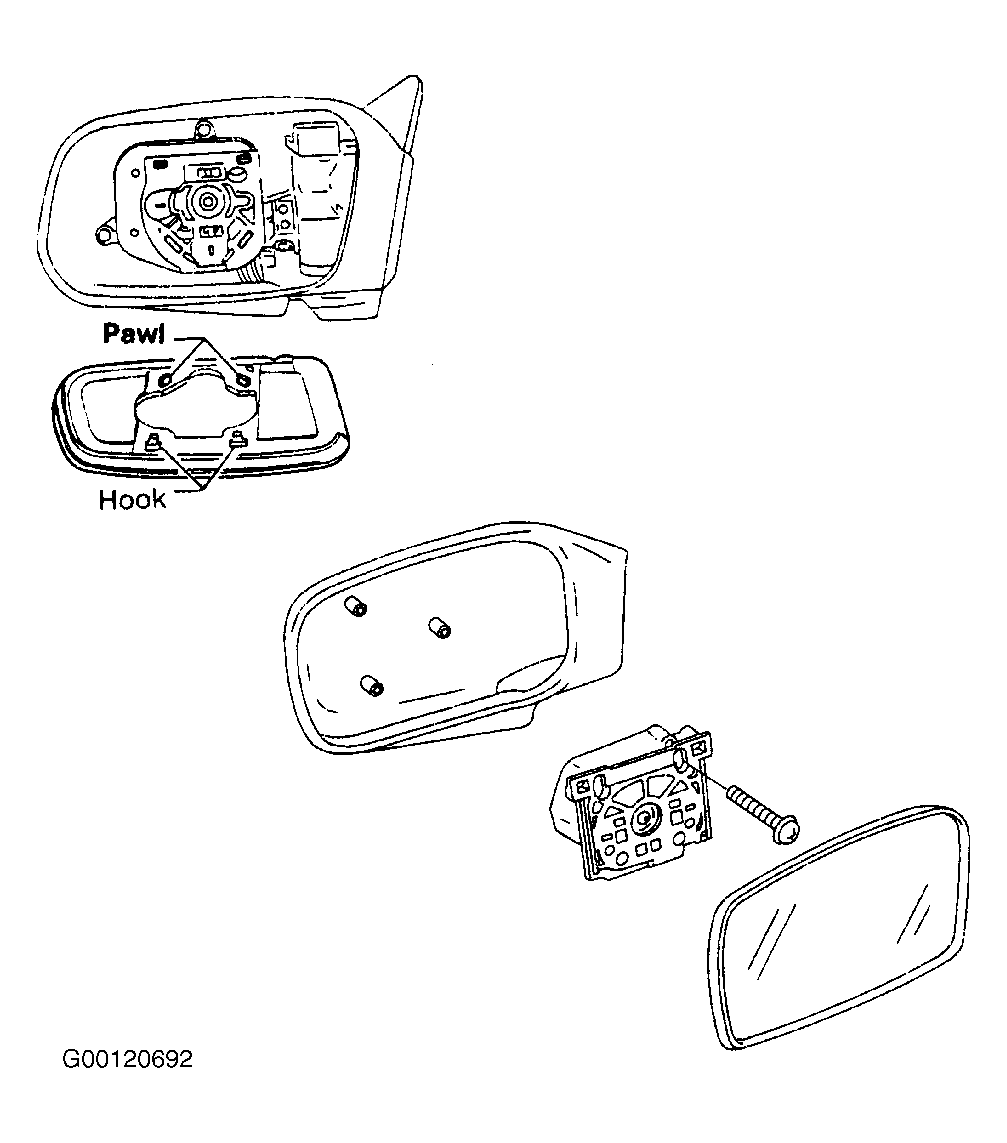

Fig 1: Exploded View Of Power Mirror Assembly

G00120692

Courtesy of NISSAN MOTOR CO., U.S.A.

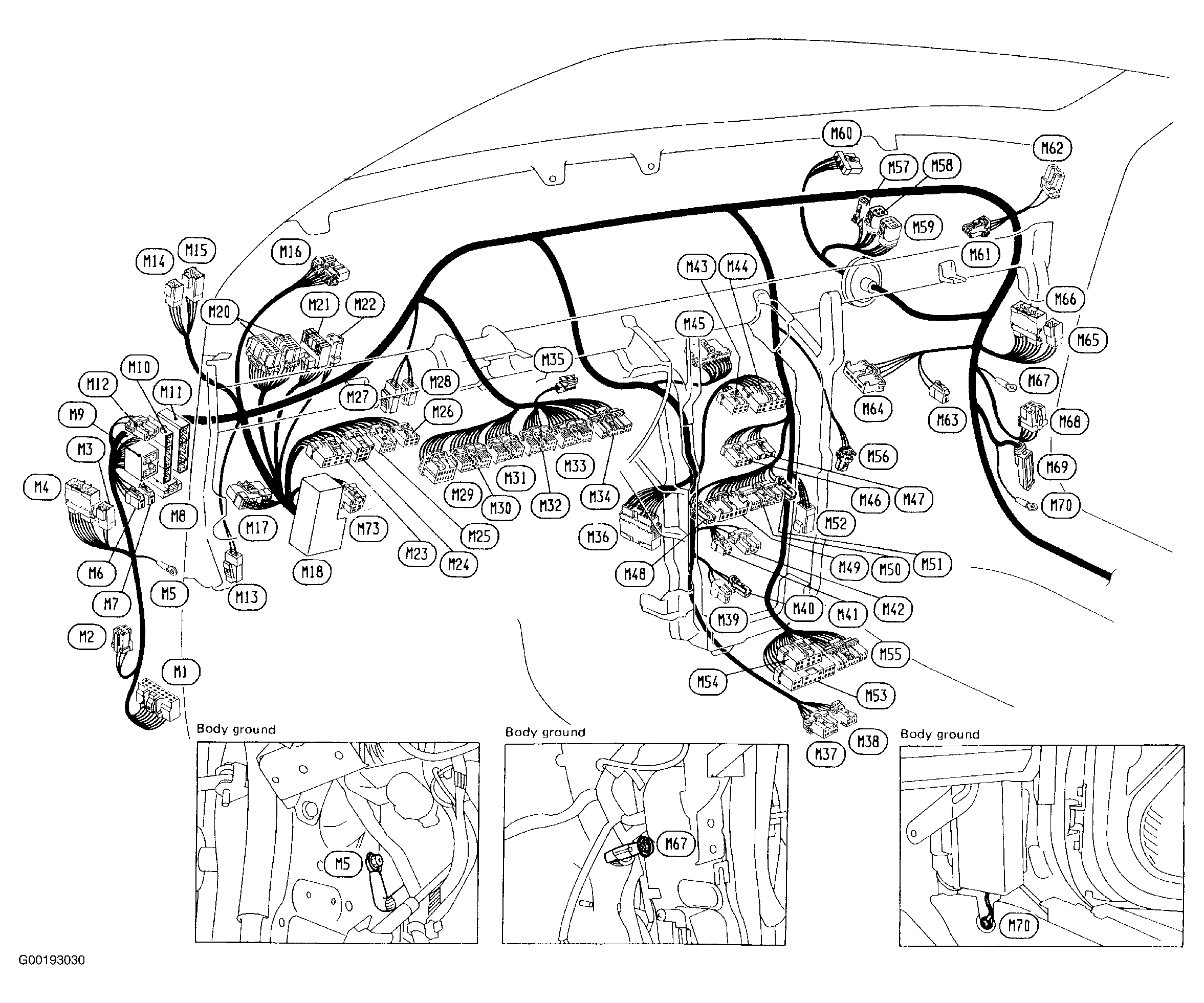

Fig 2: Locating Body Grounds M5 & M67

G00193030

Courtesy of NISSAN MOTOR CO., U.S.A.
