Anti-Lock Brake System: Description

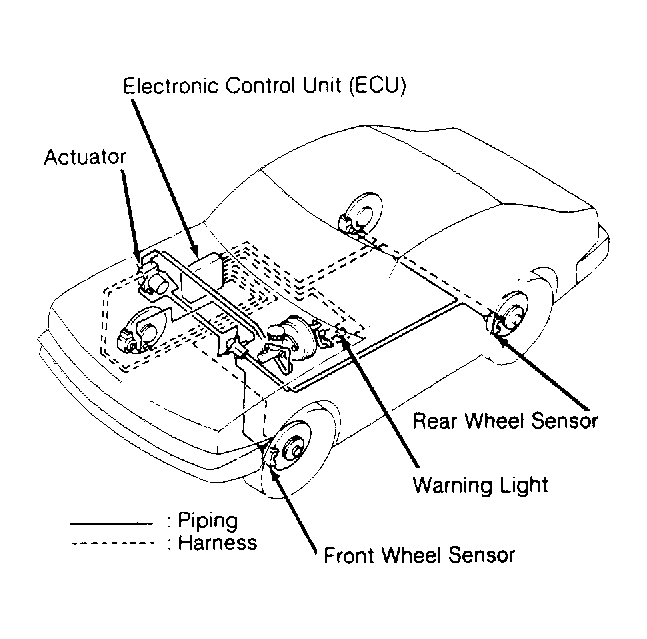

Anti-Lock Brake System (ABS) allows the driver to maintain steering control during heavy braking by fluctuating brakeline pressure. System consists of an Electronic Control Unit (ECU) with LED (for diagnostic usage), wheel speed sensors, actuator (electro-hydraulic unit) and an ANTI-LOCK warning light located in dash. See Fig 1 .
ANTI-LOCK warning light comes on to warn driver of problem in ABS. LED on ECU will flash (indicating trouble codes) when warning light is illuminated.
NOTE:
For more brake system information, See BRAKES article in the BRAKES Section.
