Control Units

CONTROL UNITS LOCATION

Component Location

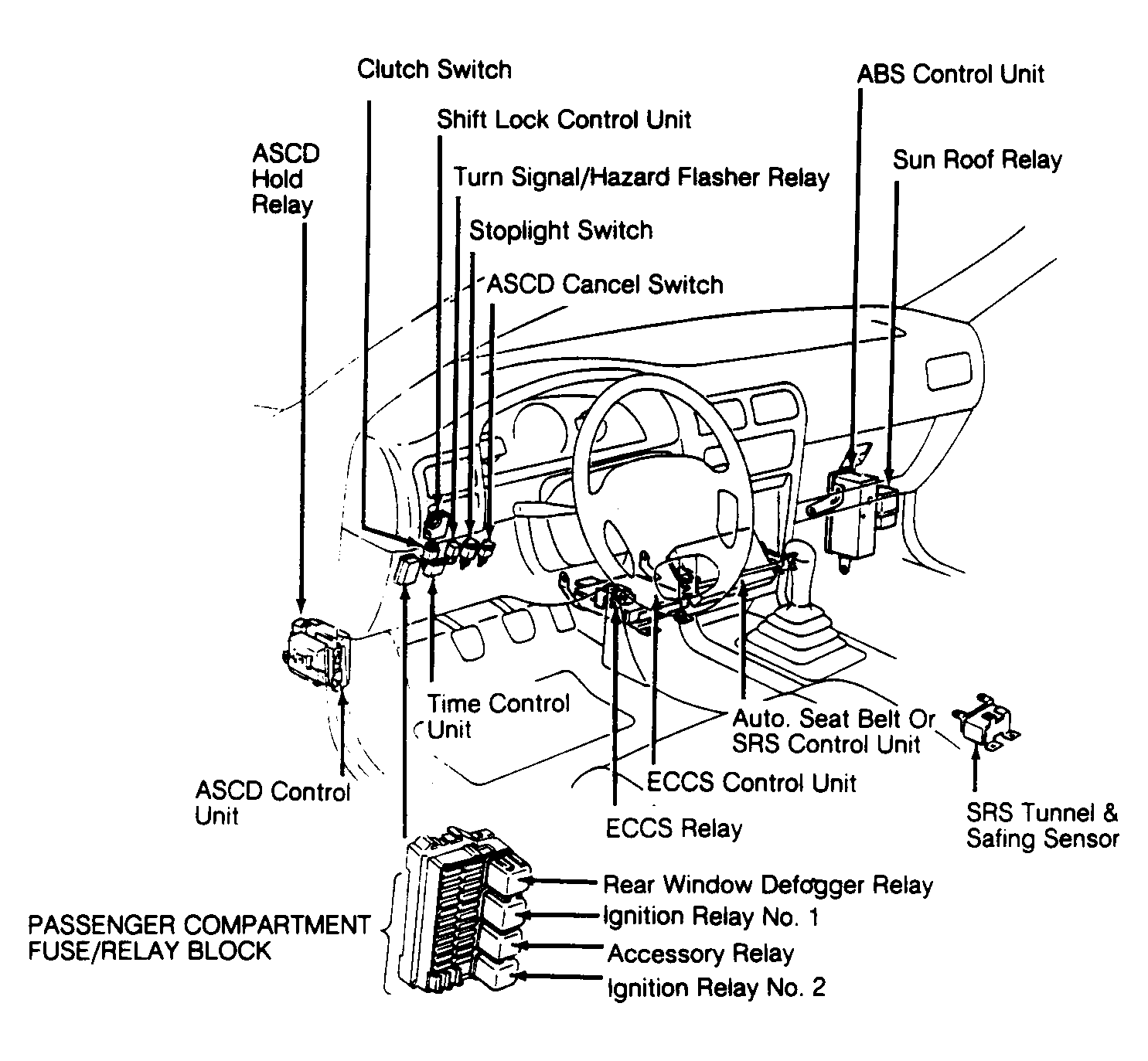

ABS Control Unit Behind right kick panel. See Figure .
ASCD Control Unit Behind left kick panel. See Figure .
Automatic Seat Belt Control Unit Behind center console. See Figure .
Daytime Running Light Control Unit Behind left kick panel.
ECCS Control Unit Behind center console. See Figure .
Shift Lock Control Unit (A/T) Behind left side of dash, above clutch pedal. See Figure .
SRS Control Unit Behind center console. See Figure .
Time Control Unit Under left side of dash. See Figure .
