Repair and Diagnosis: Electrical: Starter: Overhaul

To adjust end play, some starters are equipped with adjusting plates (shims) or washers. See Fig 1-7 for exploded views of starters. Adjusting washers and plates are available in various thicknesses. Correct end play is .004-.020" (.1-.5 mm).

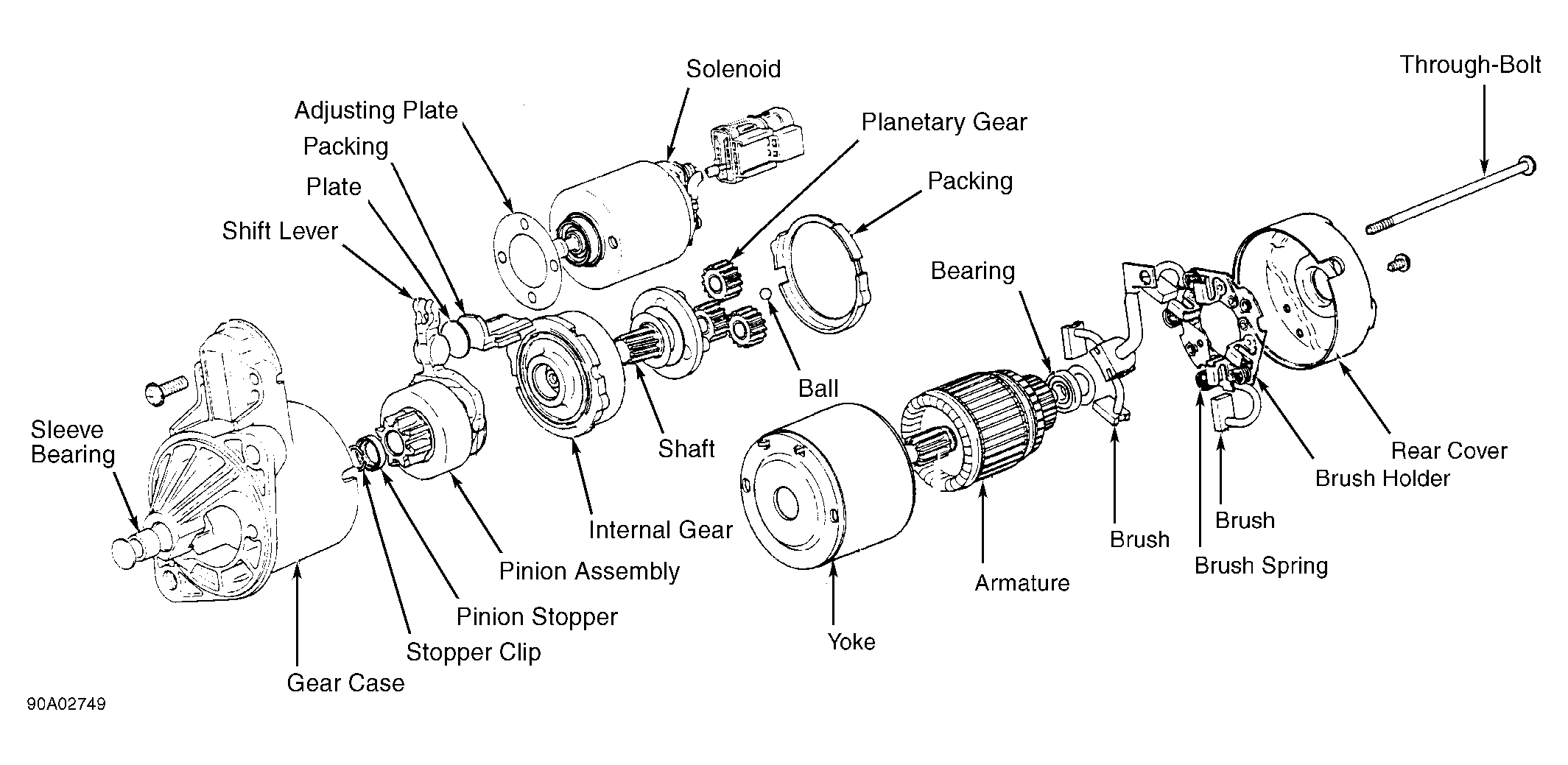

Fig 1: Exploded View of Starter M2T53883 (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

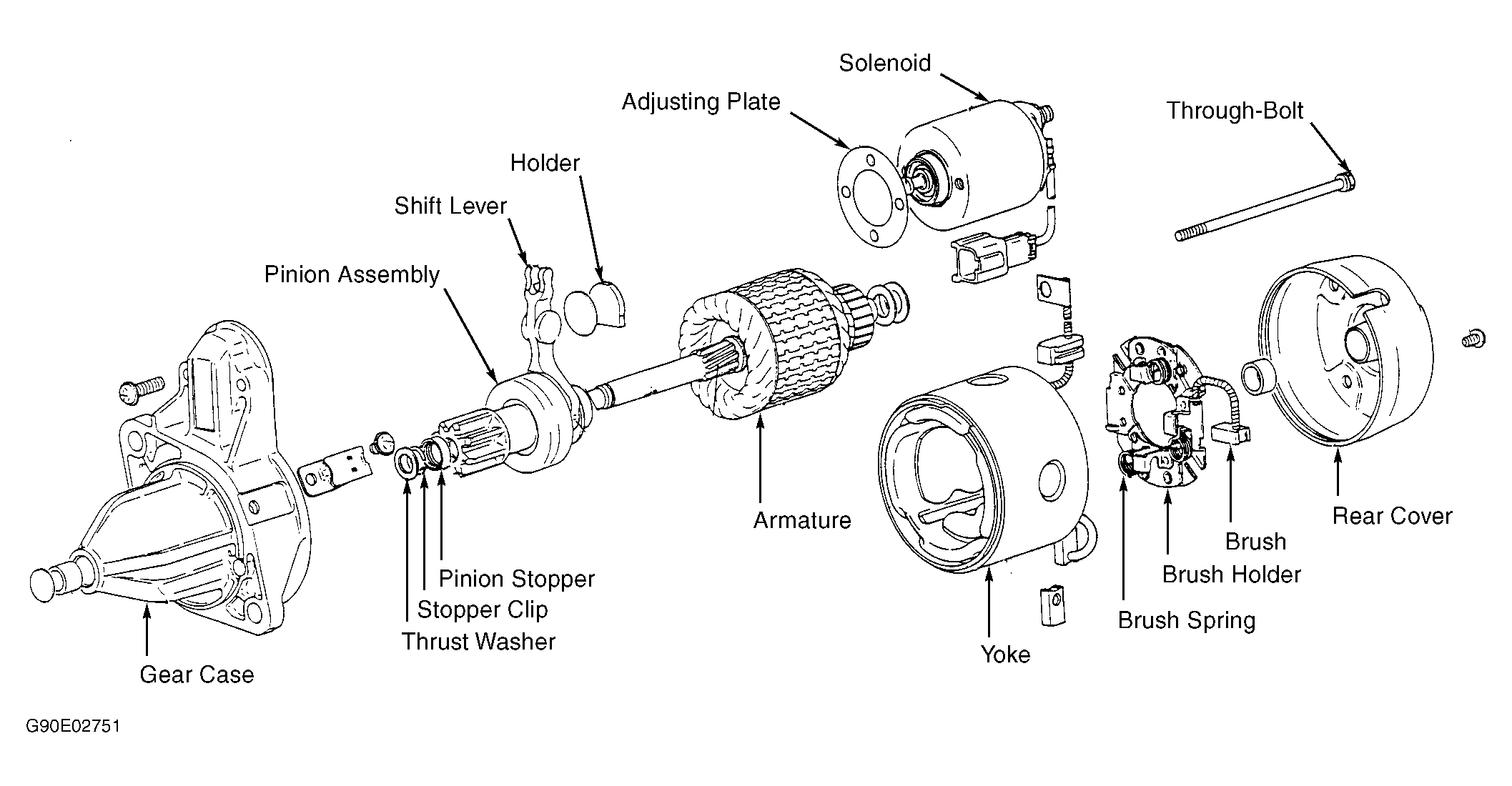

Fig 2: Exploded View of Starter S114-486 (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

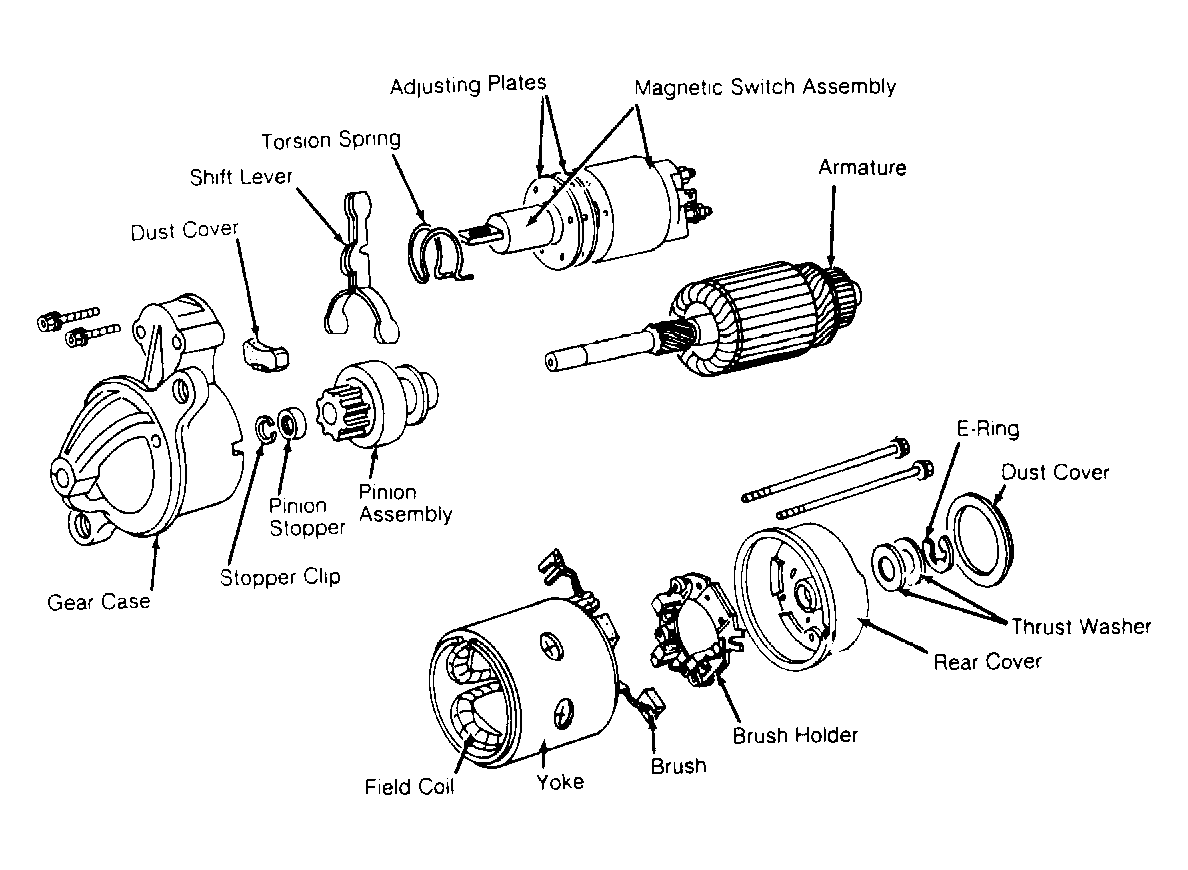

Fig 3: Exploded View of Starter M1T72985 (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

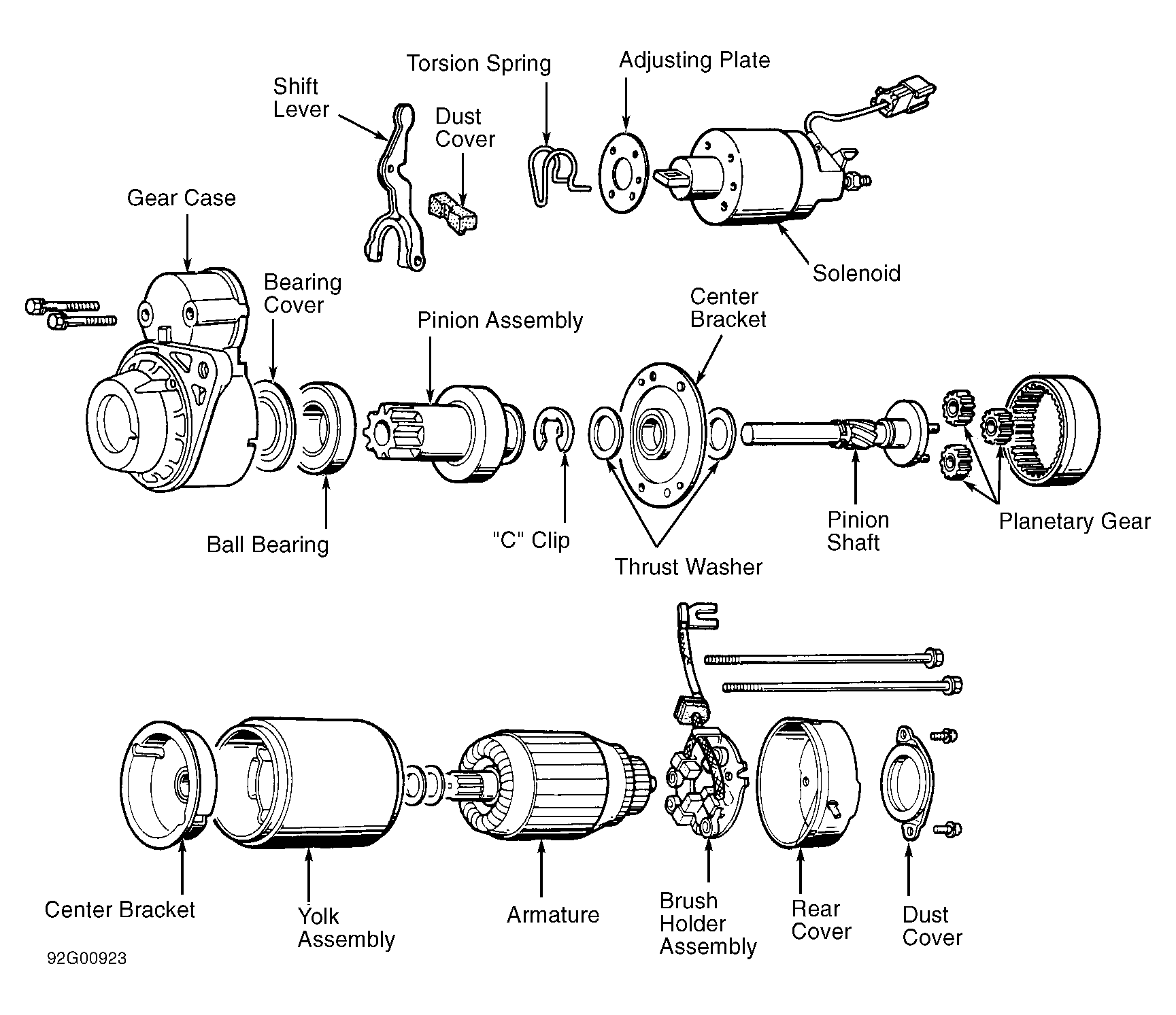

Fig 4: Exploded View of Starters M1T72088 (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

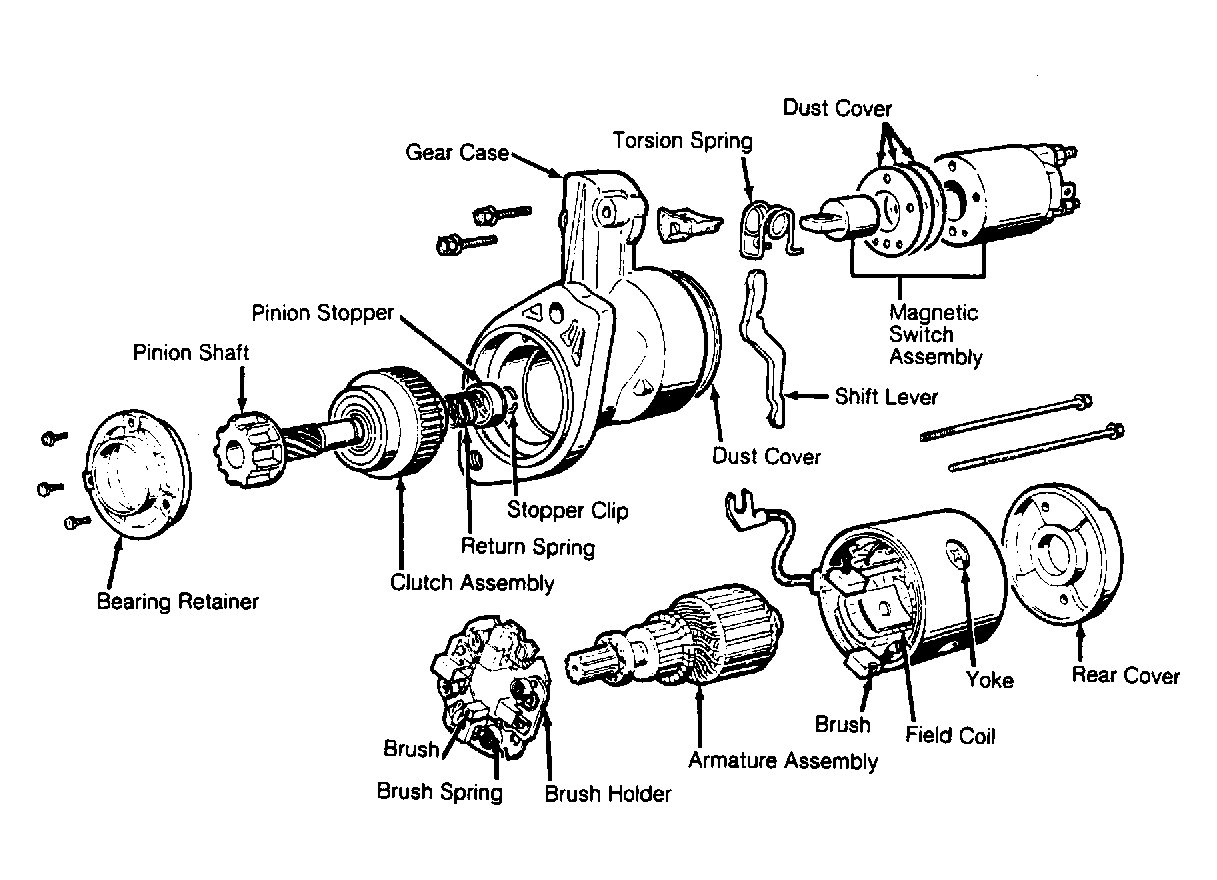

Fig 5: Exploded View of Starter S114-630 (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

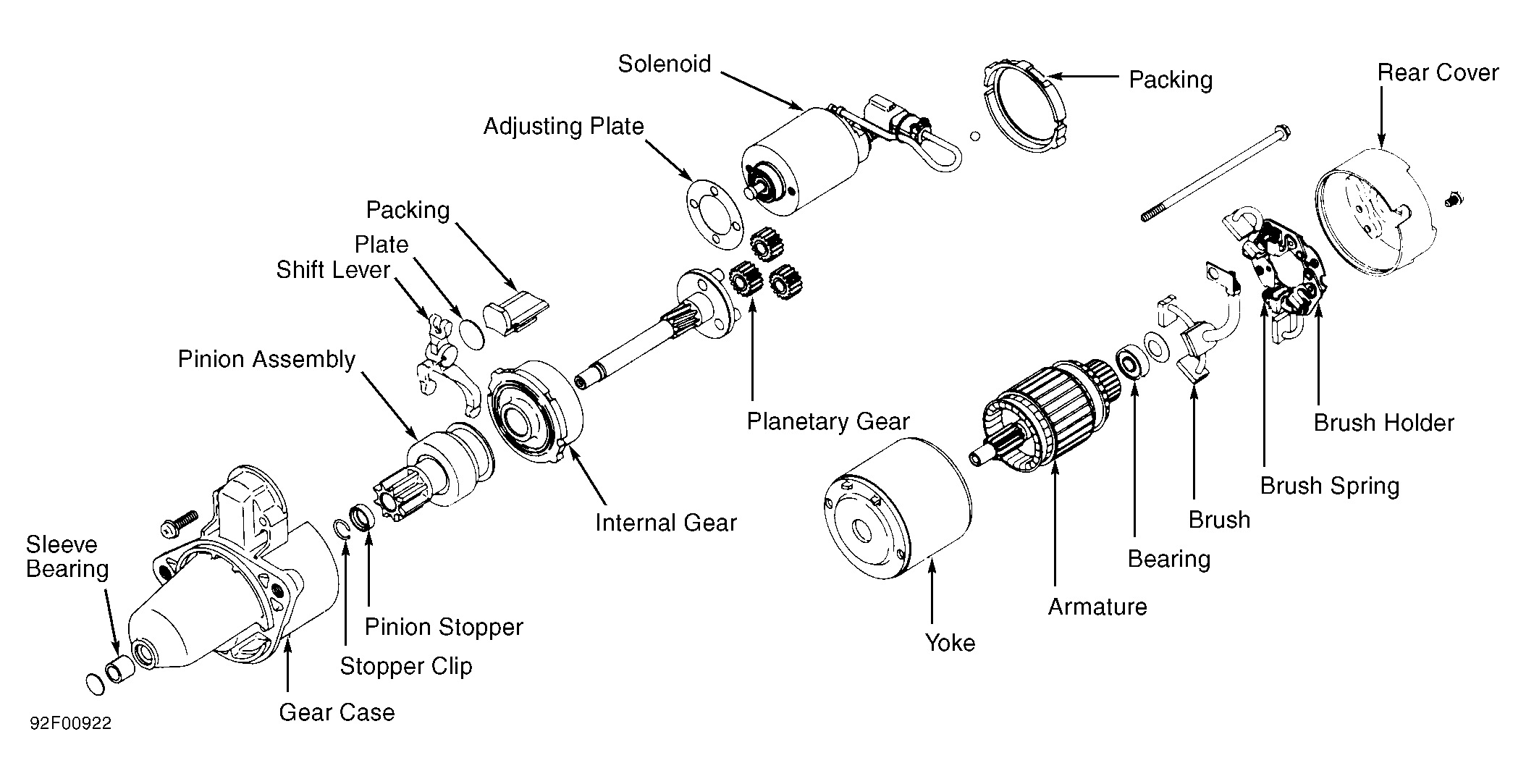

Fig 6: Exploded View of Starter S114-701A (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

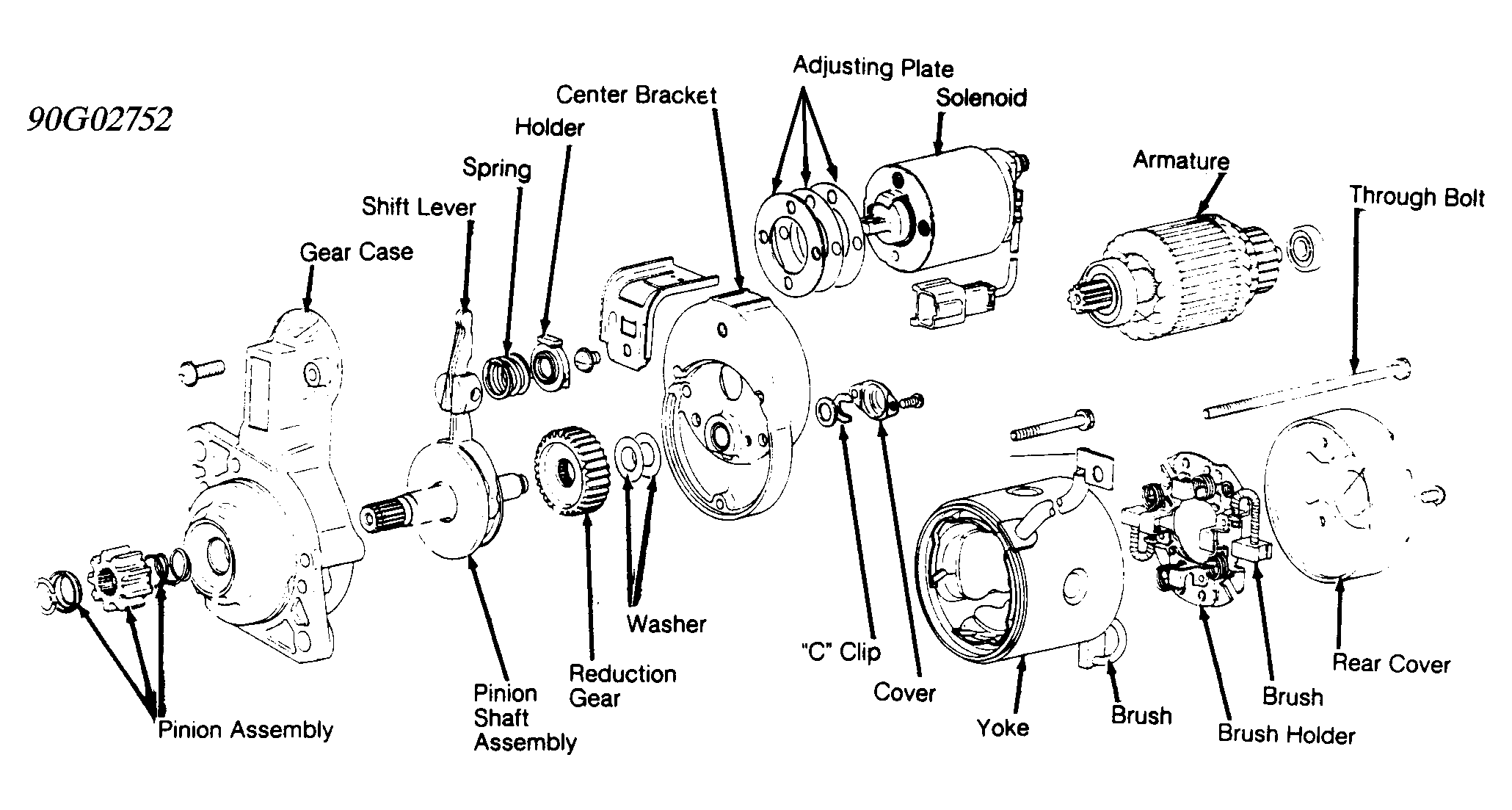

Fig 7: Exploded View of Starter M3T377383 (NX & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.
