Air Regulator Chart

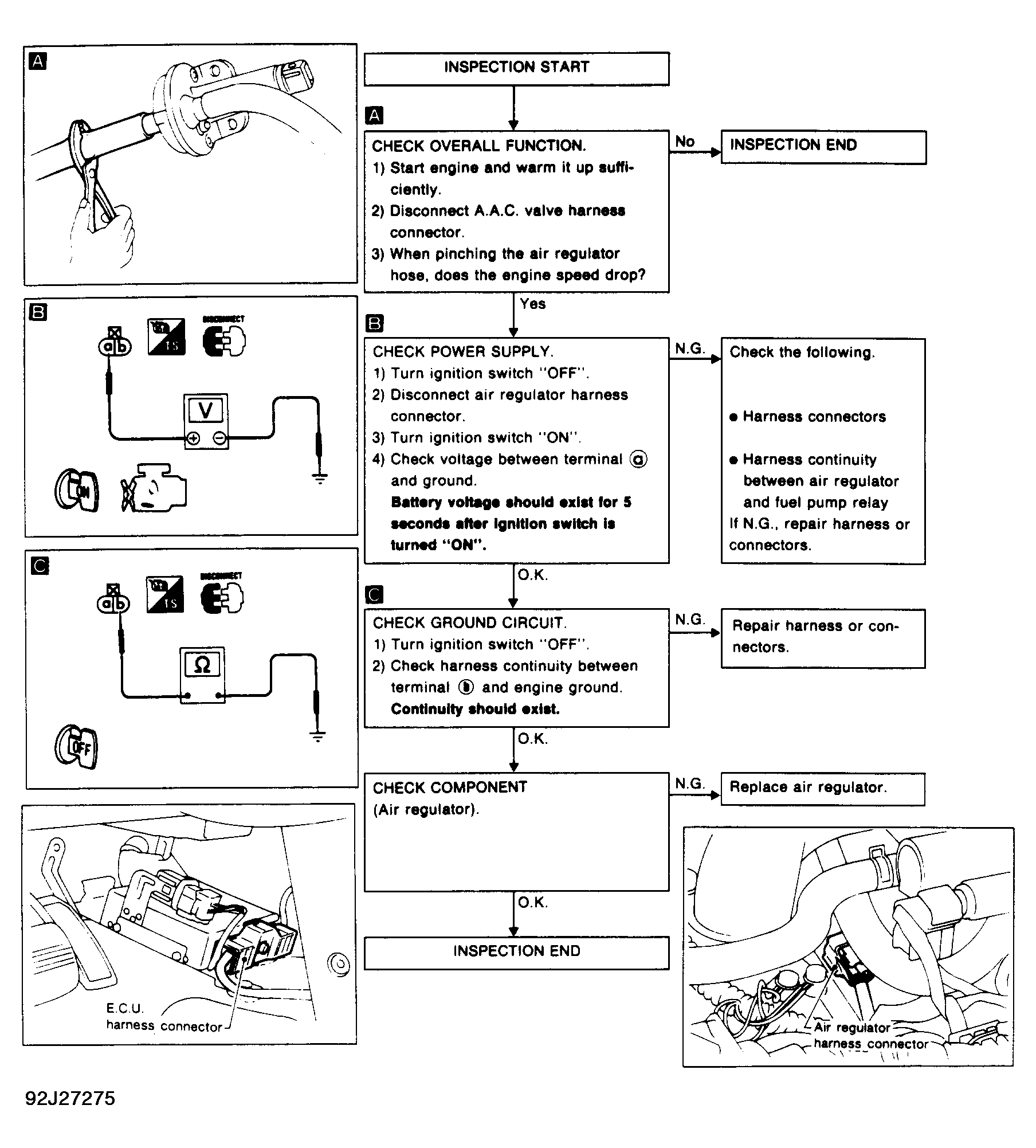

Fig 1: Air Regulator Flow Chart (1.6L)
G92J27275Courtesy of NISSAN MOTOR CO., U.S.A.

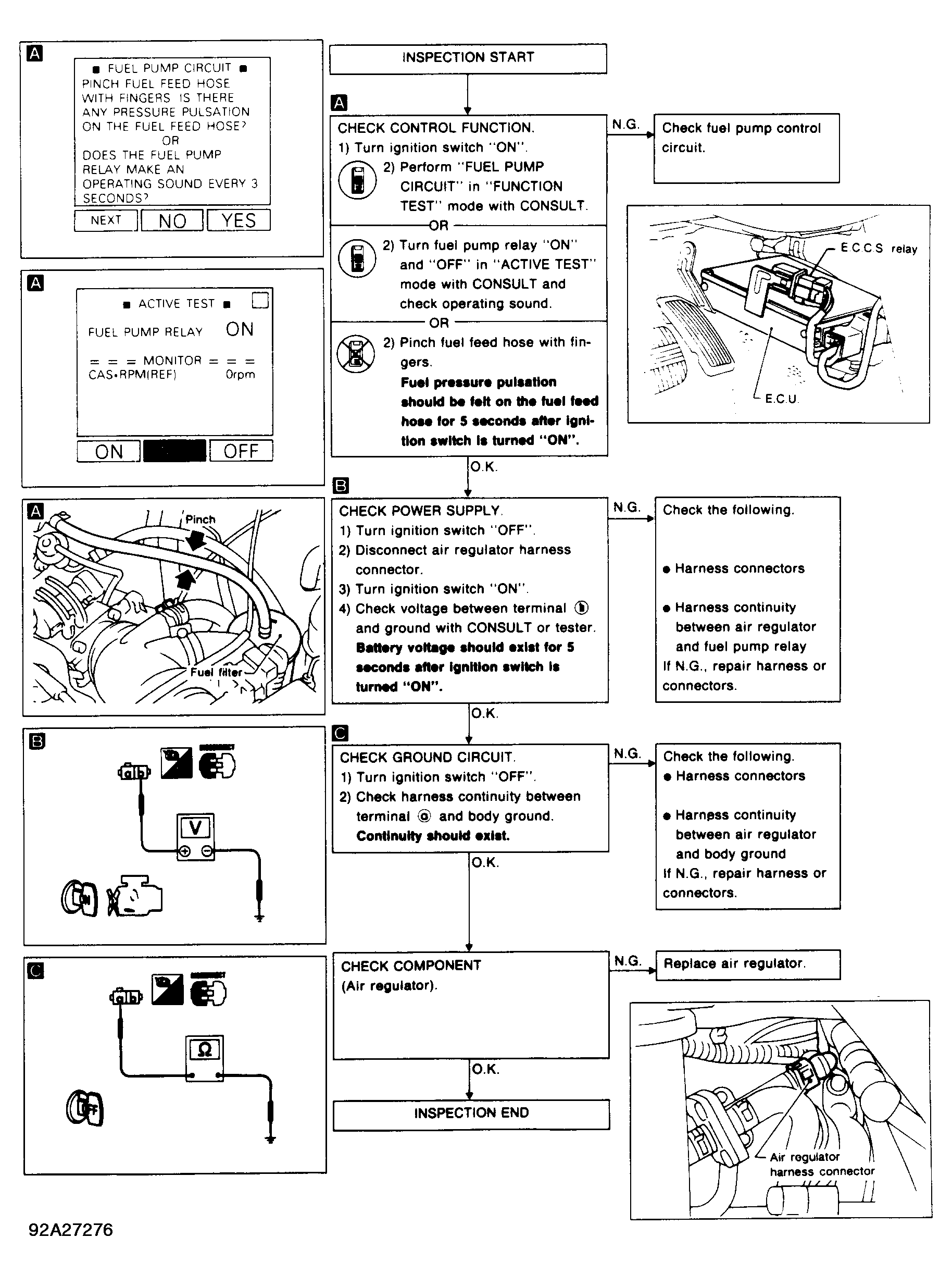

Fig 2: Air Regulator Flow Chart (2.0L)
G92A27276Courtesy of NISSAN MOTOR CO., U.S.A.
