EGR Control Chart

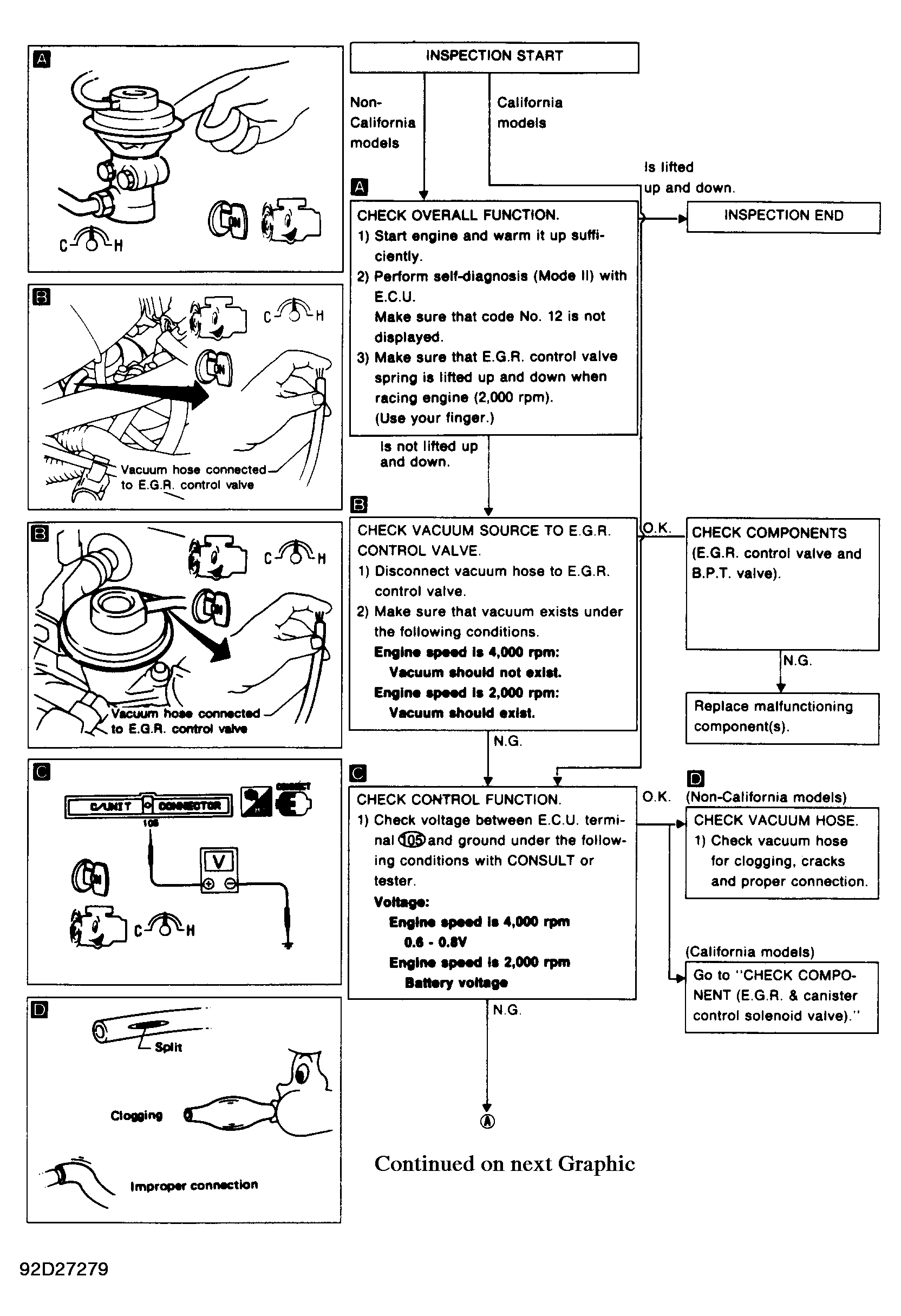

Fig 1: EGR Control Flow Chart (1 of 2)
G92D27279Courtesy of NISSAN MOTOR CO., U.S.A.

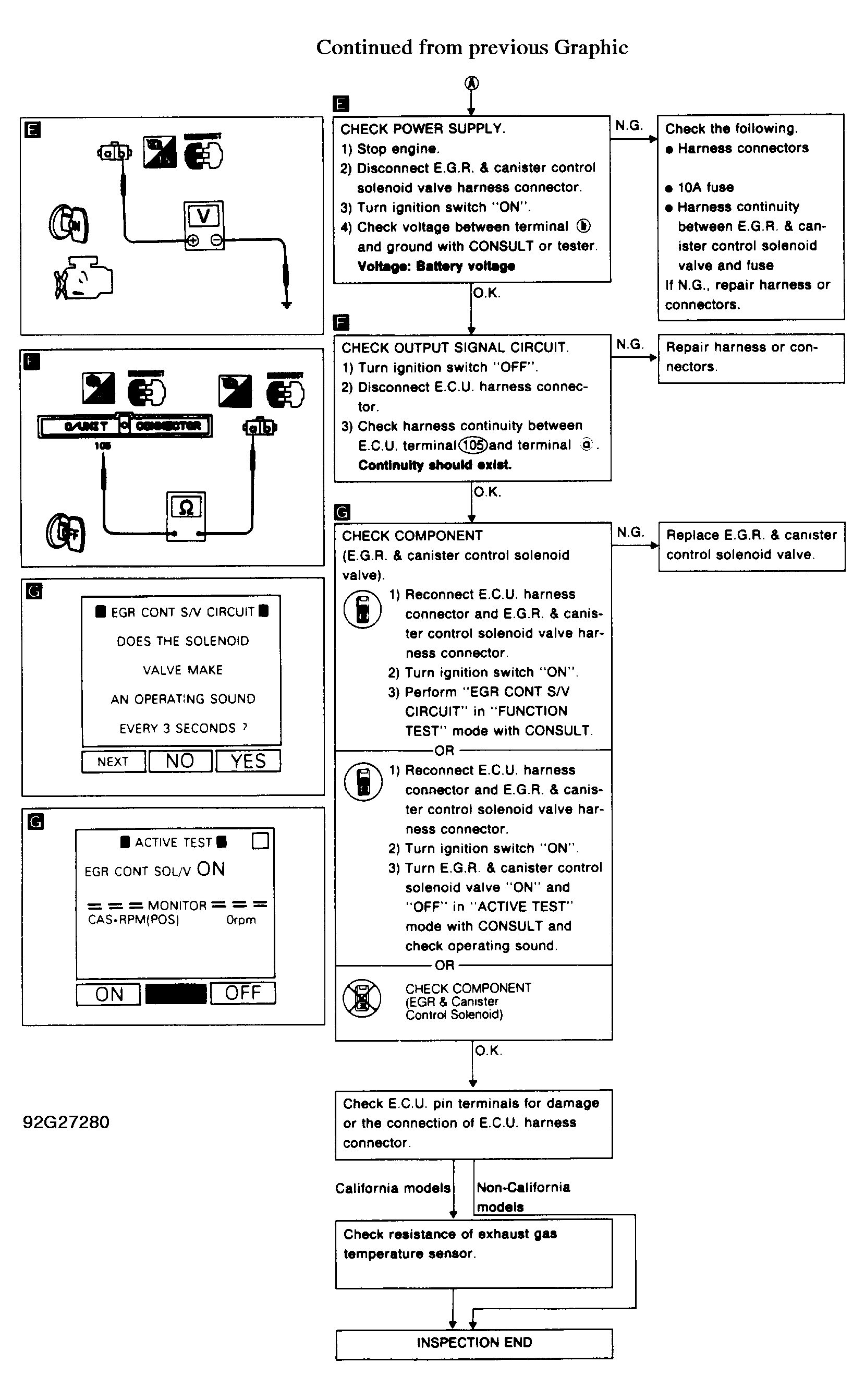

Fig 2: EGR Control Flow Chart (2 of 2)
G92G27280Courtesy of NISSAN MOTOR CO., U.S.A.
