Injector Malfunction Chart

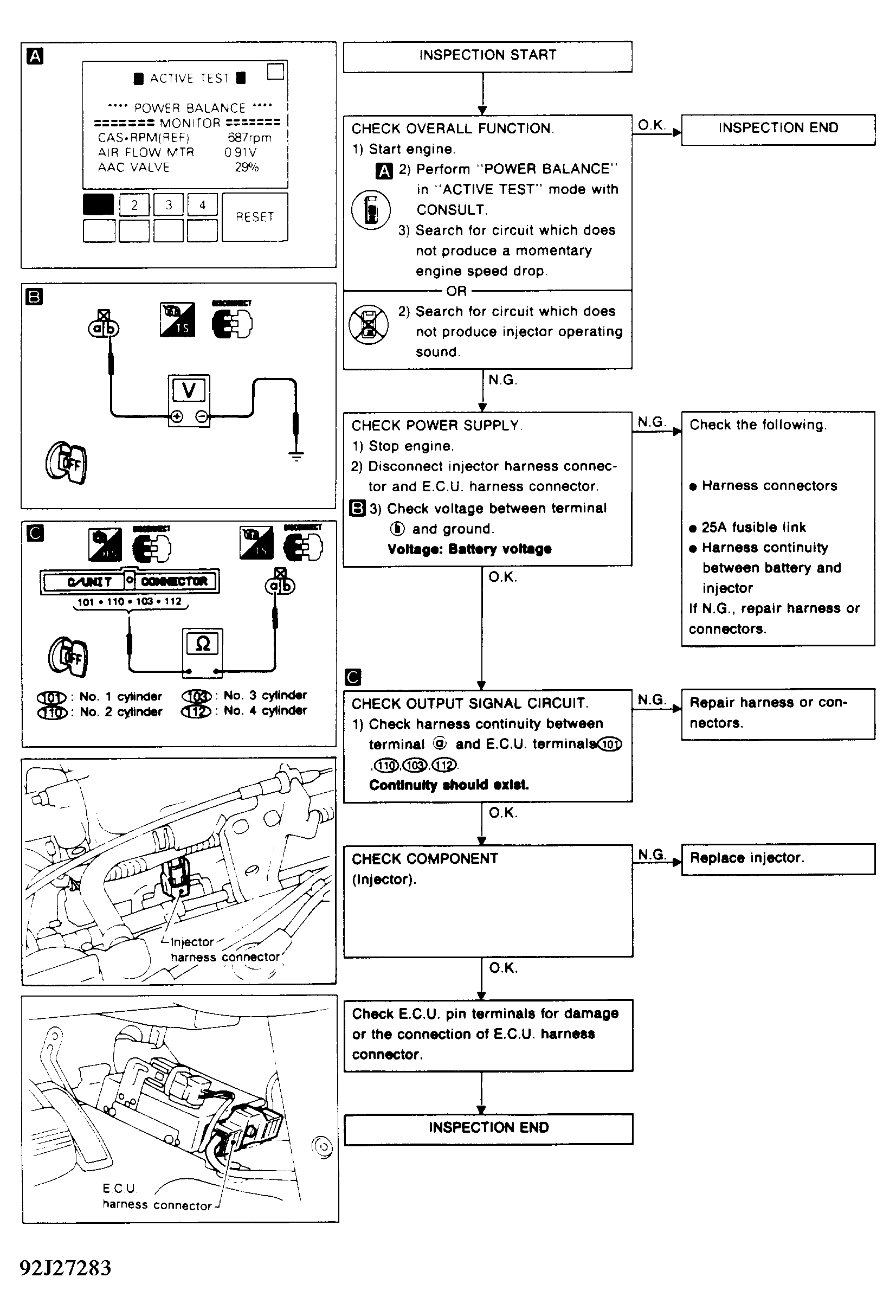

Fig 1: Injector Malfunction Flow Chart (1.6L)
Courtesy of NISSAN MOTOR CO., U.S.A.

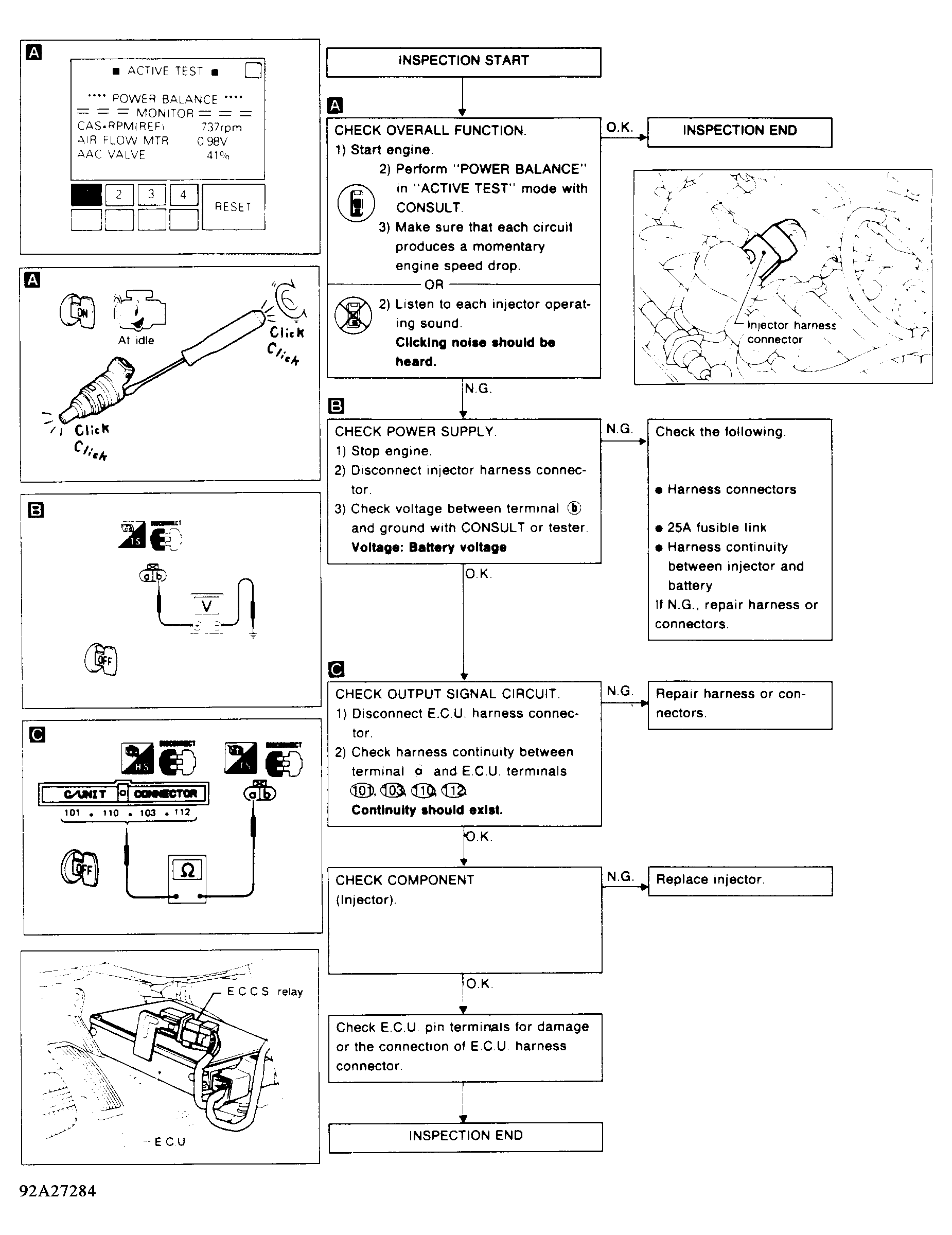

Fig 2: Injector Malfunction Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
